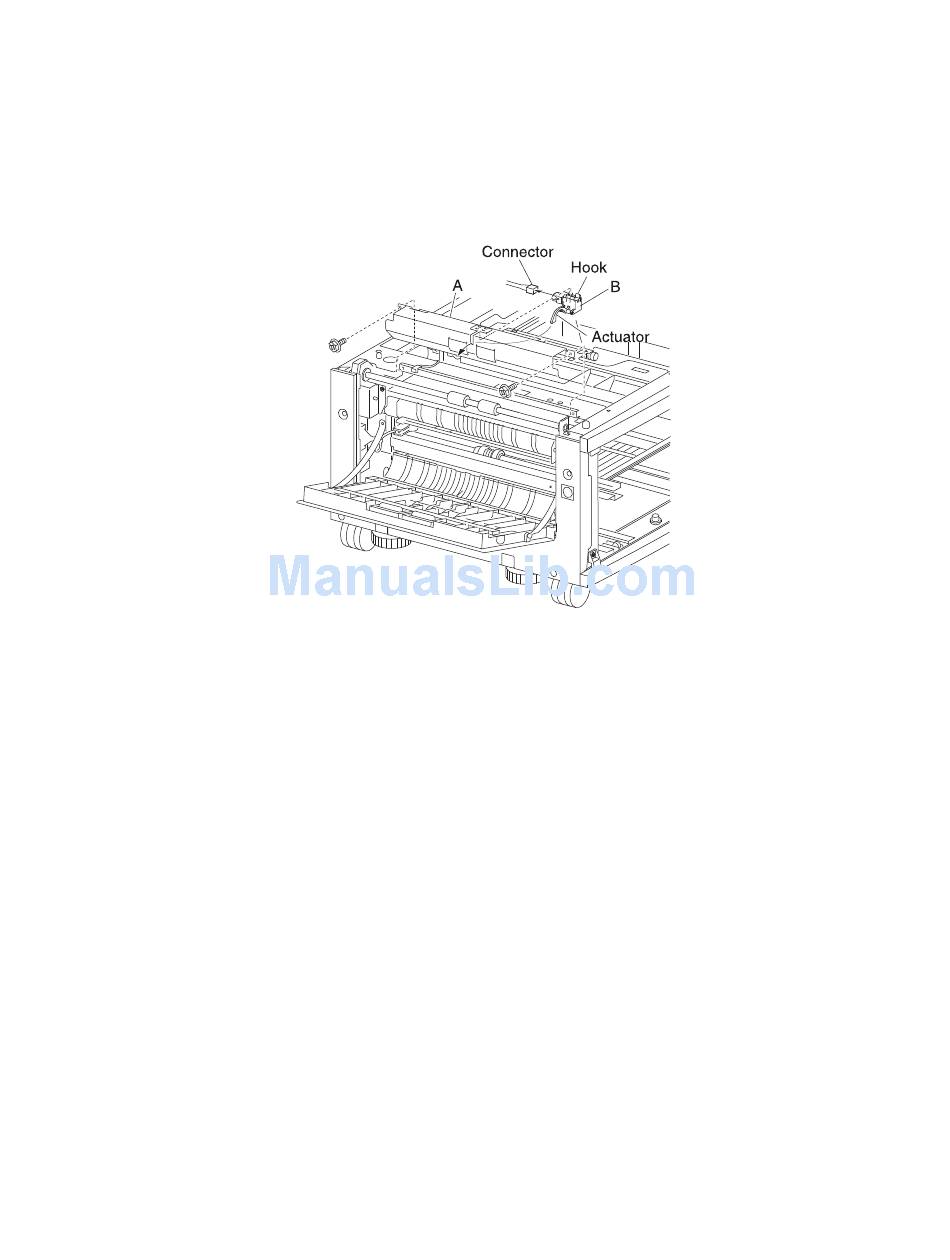

2000-sheet dual input (TTM)—sensor (tray 2 feed-out) removal
1. Open the TTM left door assembly.
2. Remove the two screws securing bracket (A) to the machine.
3. Remove the bracket (A).
4. Disconnect the connector from the sensor (tray 2 feed-out) (B).
5. Release the hooks securing the sensor (tray 2 feed-out) (B) to the bracket (A).
6. Remove the sensor (tray 2 feed-out) (B).
2000-sheet dual input (TTM)—media feed lift motor removal
1. Remove the tray module left cover. See
page 4-167.
2. Remove the TTM media tray 3 assembly. See
removal" on page
3. Remove the TTM media tray 4 assembly. See
removal" on page
4. Remove the tray 4 media transport assembly. See
assembly removal" on page
5. Remove the media feed unit assembly. See
removal" on page 4-183
page 4-179.
6. Disconnect the harness from the media feed lift motor (A).
7. Remove the two screws securing the media feed lift motor to the media feed unit assembly (B).
4-186
Service Manual
"2000-sheet dual input (TTM)– tray module left cover removal" on
4-171.
4-170.
4-175.
"2000-sheet dual input (TTM)–media feed unit assembly 2
or "2000-sheet dual input (TTM)–media feed unit assembly removal (tray 4)" on
"2000-sheet dual input (TTM)–TTM media tray 3 assembly
"2000-sheet dual input (TTM)–TTM media tray 4 assembly
"2000-sheet dual input (TTM)–TTM tray 4 media transport
