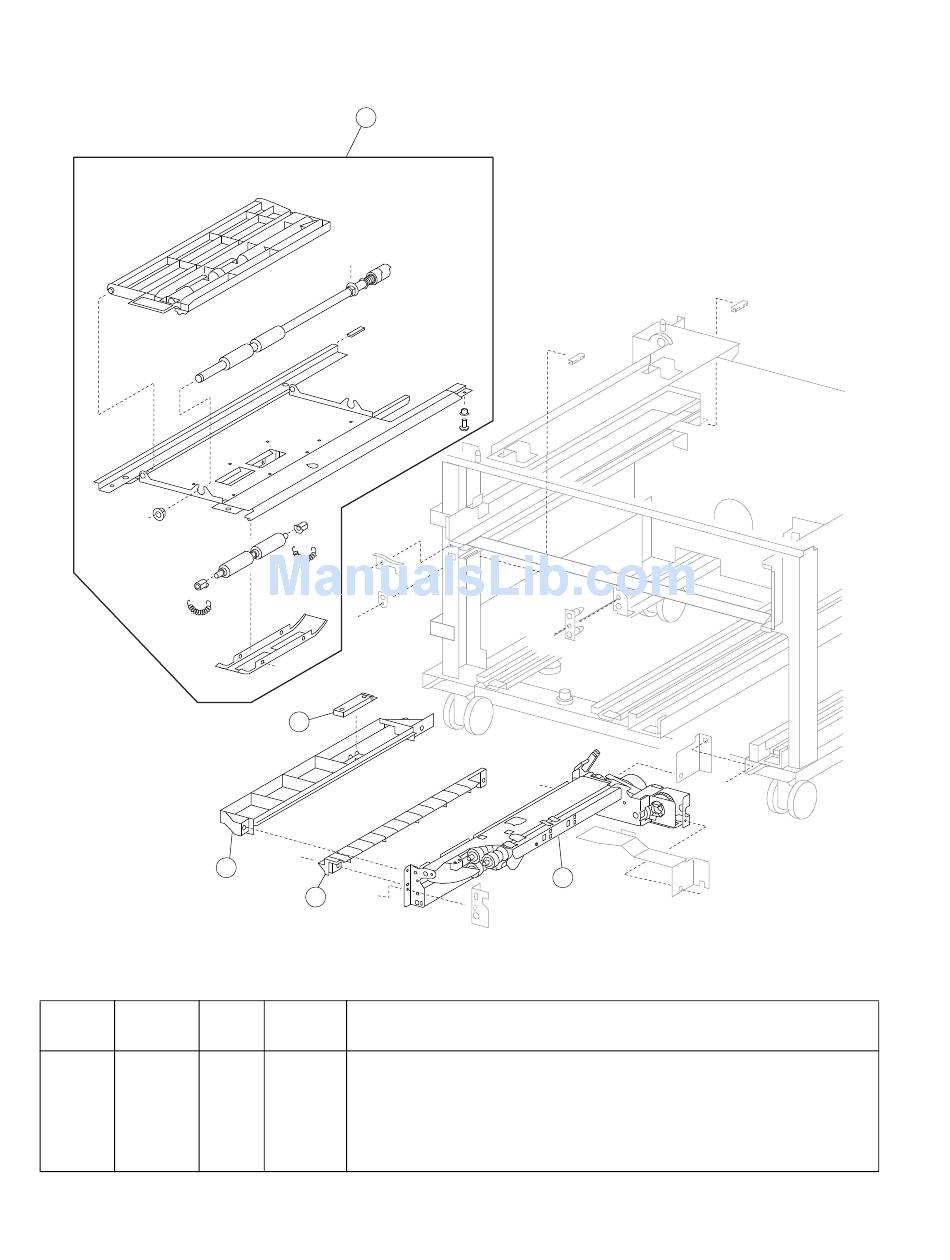

Assembly 63: TTM media tray 4 transport
Asm-
Part
FRUs/
index
number
mach
1
40X3838
2
40X3679
3
40X3841
4
40X3840
5
40X3694
7-86
MFP Service Manual
1
5
4
3
Units/
Description
FRU
1
1
TTM tray 4 media transport assembly
1
1
Media feed unit assembly
1
1
TTM tray 4 lower media guide
1
1
TTM tray 4 upper media guide
2
1
Sensor (tray 4 feed-out)
2
