Photoconductor (PC) unit assembly removal

Warning: Ensure that all four PC cartridges are concealed from all sources of light, or damage will occur.
Note: This procedure can be applied to either the C, M, Y, or K PC unit assemblies.

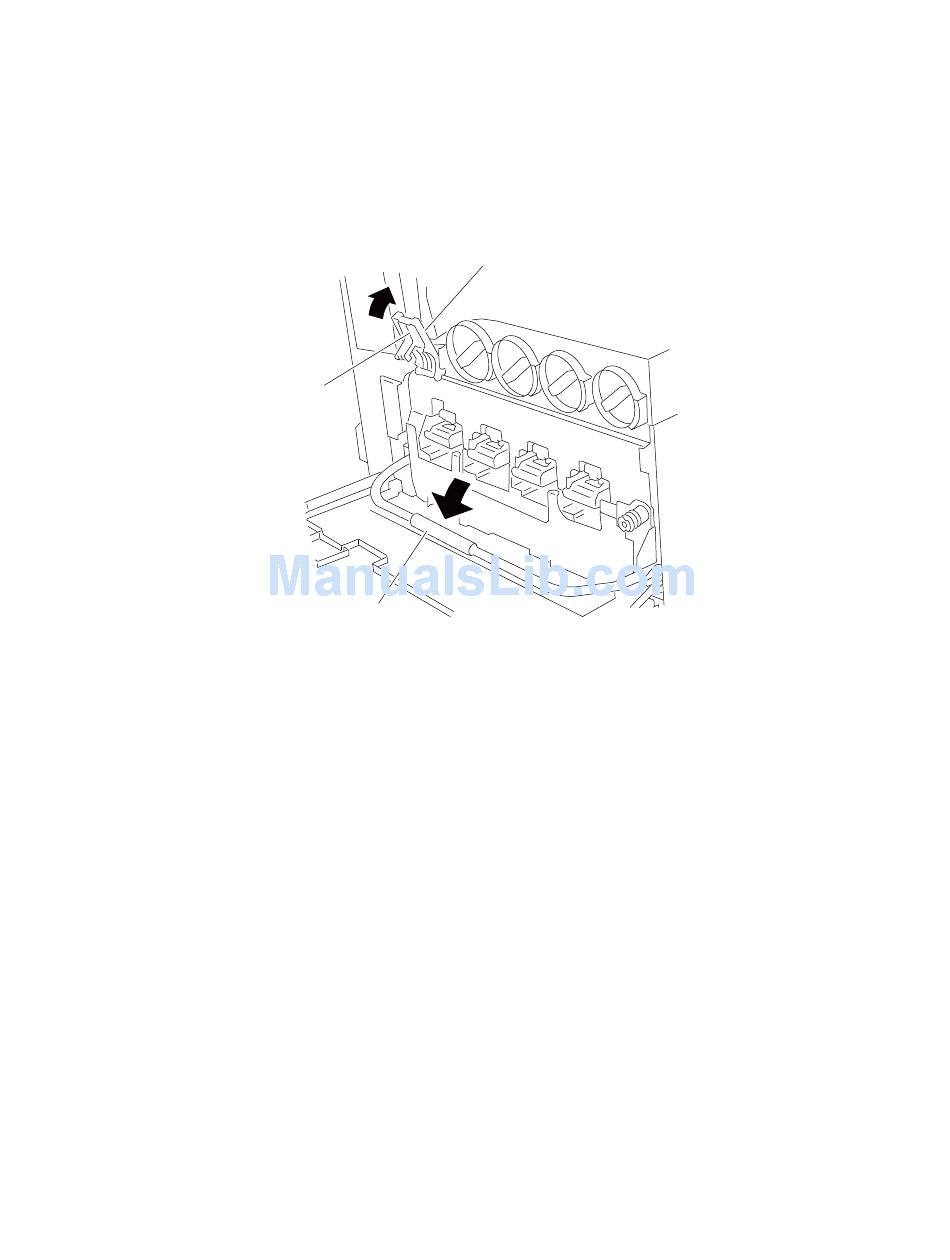

1. Open the printer front door assembly.
2. Press the button on the transfer belt lift latch (A).
3. Raise the transfer belt lift latch (A) to its upper-most position.
4. Lower the transfer belt lift handle (B) to its lower-most position.
4-60
Service Manual
Button
B
A
