7510
24V LVPS card bracket assembly removal
"Rear cover assembly removal" on page 4-5.
1. Remove the rear cover assembly. See
2. Remove the rear upper cooling fan bracket assembly. See "Rear upper cooling fan bracket assembly
removal" on page 4-102.
3. Remove the rear left middle cover. See "Rear left middle cover removal" on page 4-6.

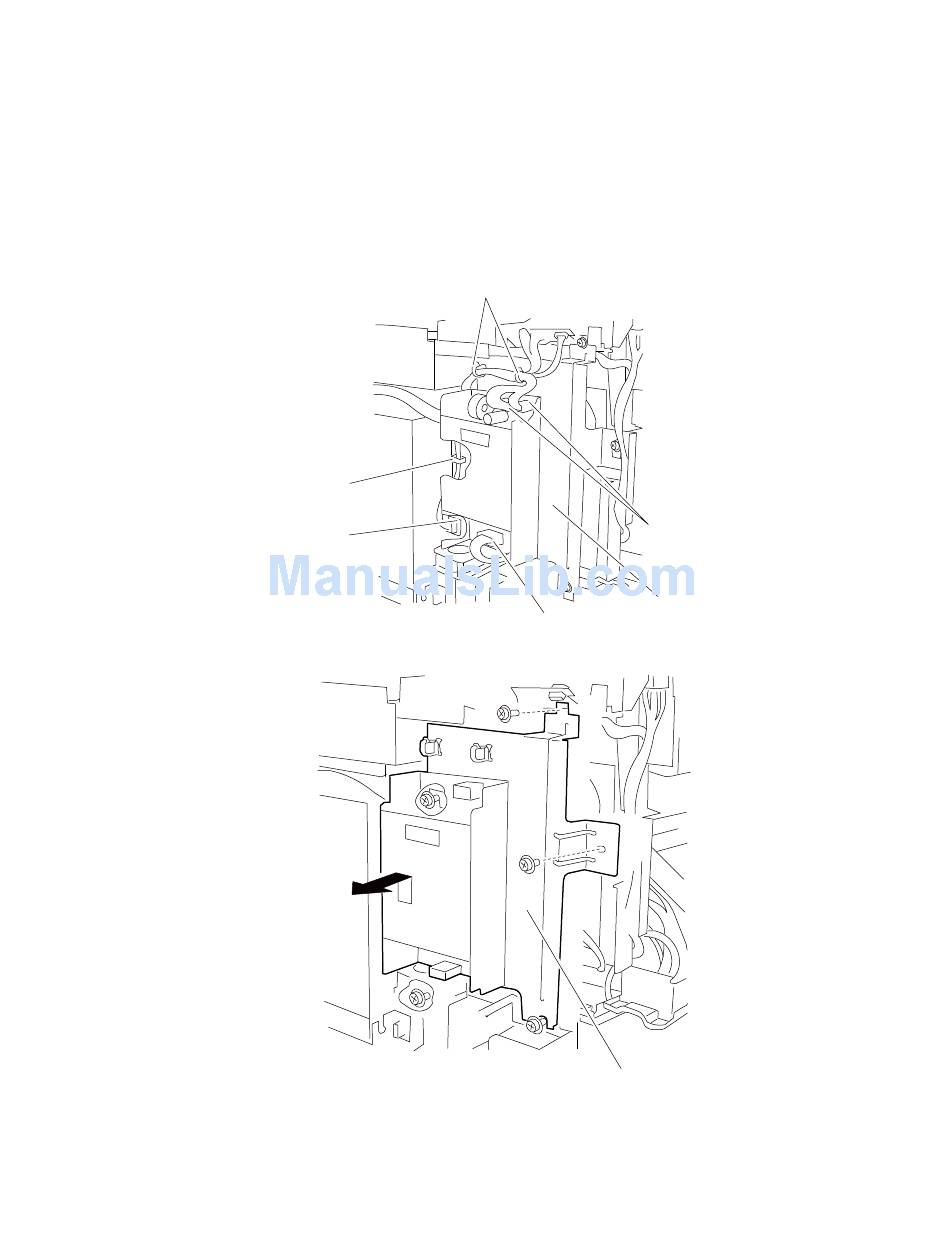

4. Disconnect the four connectors from the 24V LVPS card bracket assembly (A).
5. Remove the harnesses from the clamps.
6. Remove the five screws securing the 24V LVPS card bracket assembly (A) to the machine.
7. Remove the 24V LVPS card bracket assembly (A).
Clamps
Clamp
Connectors
Connector
A
Connector
A
4-85
Repair information
