Scanner drive motor assembly removal

1. Remove the platen cushion assembly. See
2. Remove the ADF unit assembly. See
3. Remove the ADF front cover assembly. See
4. Remove the ADF rear cover. See
5. Remove the ADF left cover assembly. See
6. Remove the document tray assembly. See
7. Remove the scanner left cover. See
8. Remove the scanner right cover. See
9. Remove the scanner top rear cover. See

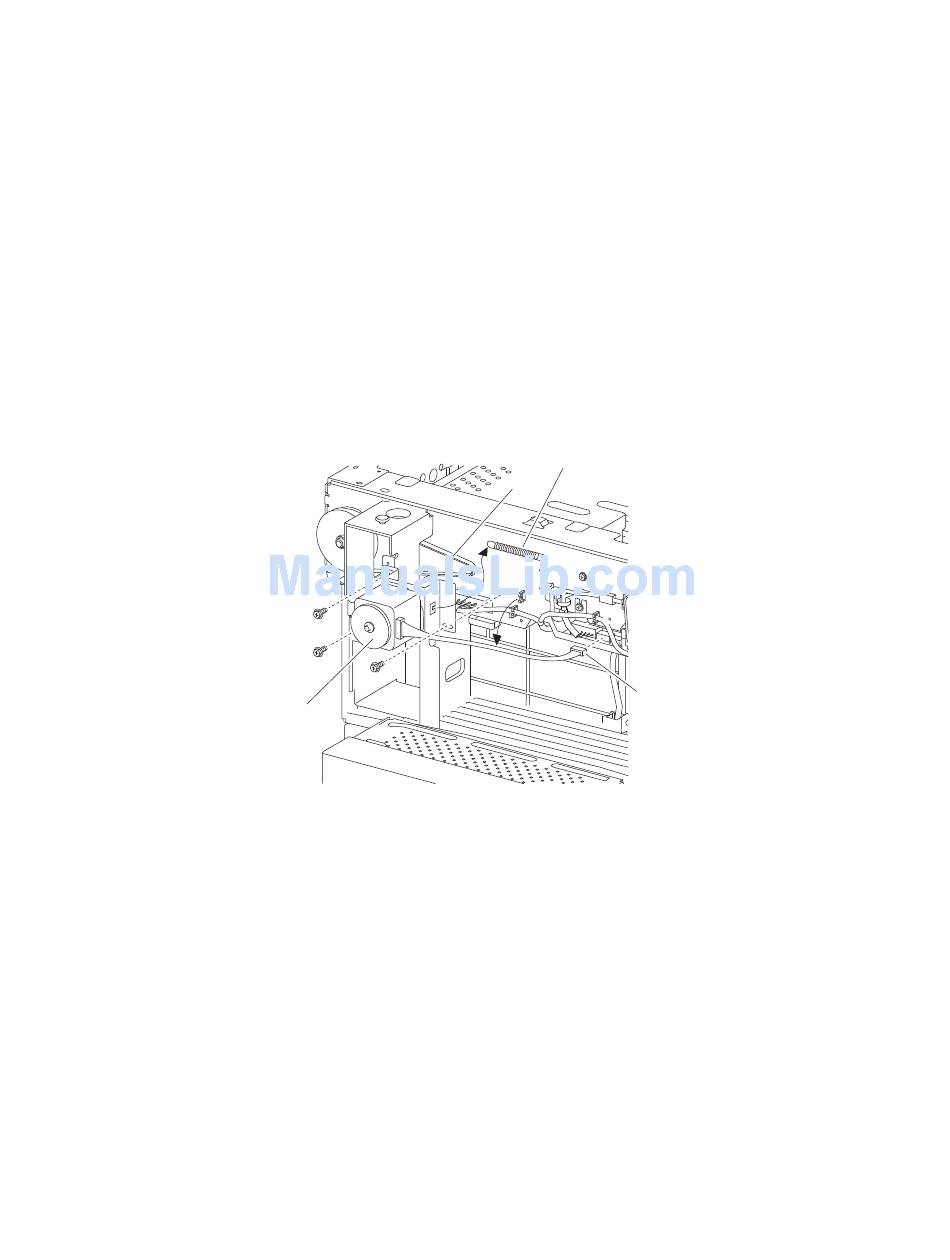

10. Disconnect the connector from the scanner drive motor assembly (A).
11. Release the frame clamp from the machine.
12. Remove the scanner drive motor tension spring (B) from the scanner drive motor assembly (A).
13. Remove the three screws securing the scanner drive motor assembly (A) to the scanner unit assembly.
14. Remove the scanner drive motor assembly (A).
Note: To correctly set the scanner drive belt (C) tension, install the scanner drive motor assembly (A) and the
scanner drive motor tension spring (B) before completely tightening the three screws.
"Platen cushion removal" on page
"ADF unit assembly removal" on page
"ADF rear cover removal" on page
"ADF left cover assembly removal" on page
"Document tray assembly removal" on page
"Scanner left cover removal" on page
"Scanner right cover removal" on page
"Scanner top rear cover removal" on page
A
"ADF front cover assembly removal" on page
B
C
Connector
4-130.
4-129.
4-131.
4-131.
4-132.
4-137.
4-117.
4-118.
4-118.
Repair information
7510
4-121
