Registration / Transport Roll Assembly Removal - Lexmark X940e Service Manual

7510

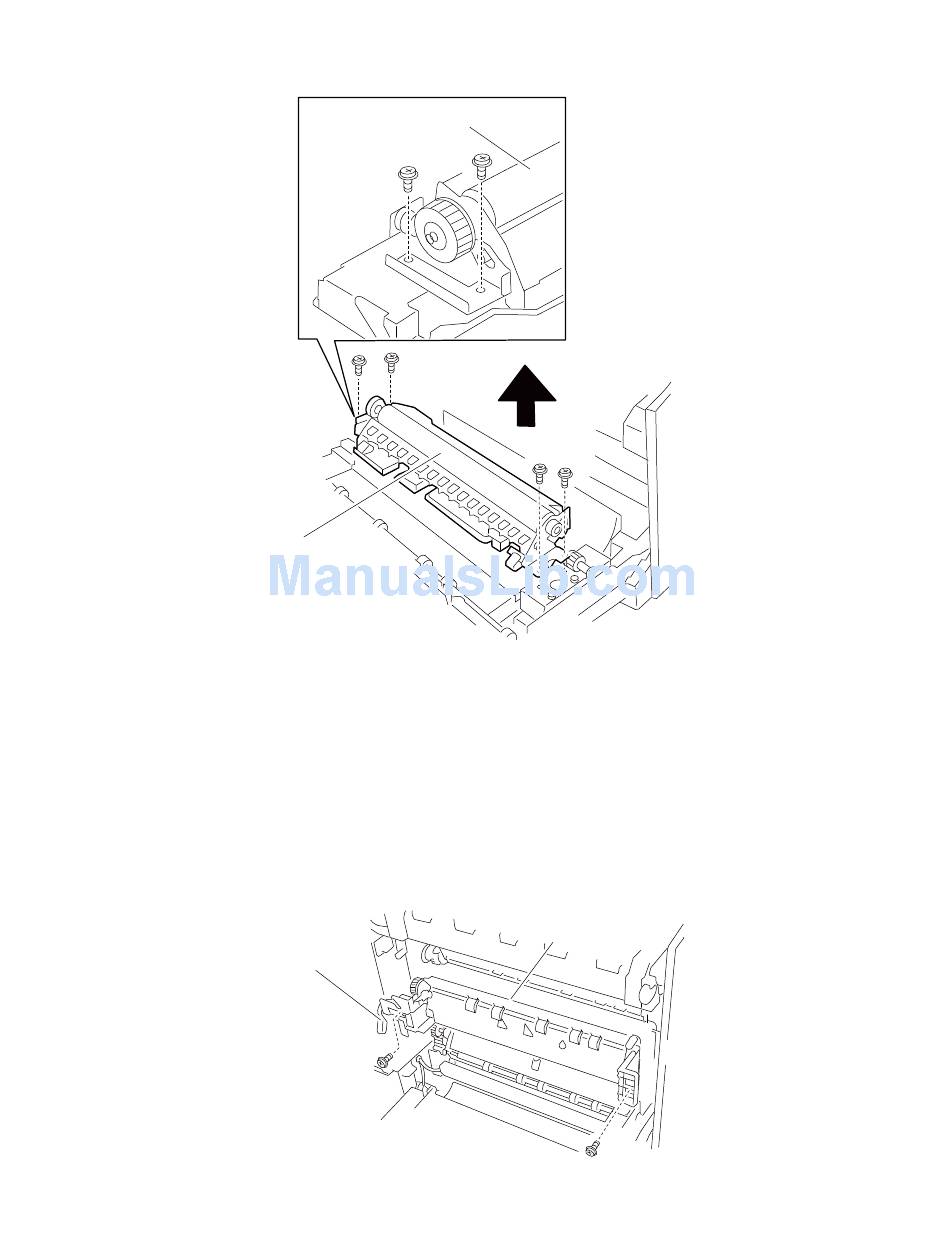

Warning: When removing the main transfer roll assembly (B), do not touch the roll surface.
Replacement warning: When reinstalling the transfer roll assembly (B), do not touch the roll surface.

Registration / transport roll assembly removal

1. Remove the rear cover assembly. See
2. Remove the rear left middle cover. See
3. Remove the MPF feed unit assembly. See
4. Remove the printer left door assembly. See
5. Open the printer left lower door assembly.
6. Disconnect the connector from the registration transport roll assembly (A).
7. Remove the two screws securing the registration transport roll assembly (A) to the machine.
8. Remove the registration transport roll assembly (A).
4-36
Service Manual
B
"Rear cover assembly removal" on page
"Rear left middle cover removal" on page
"MPF feed unit assembly removal" on page
"Printer left door assembly removal" on page
Connector
B
A
4-5.
4-6.
4-8.
4-26.
