7510

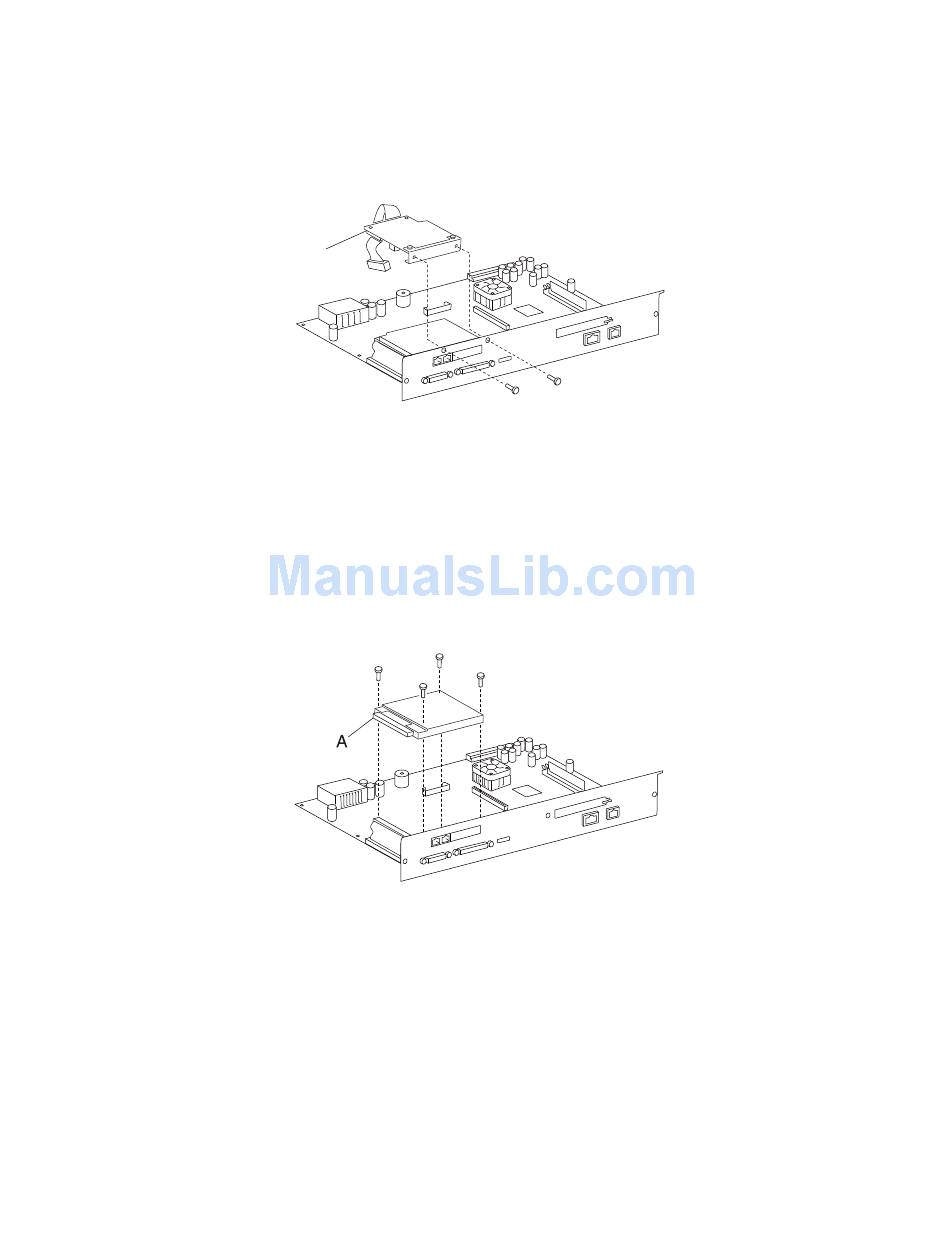

Fax interface card (modem) assembly removal

1. Remove the RIP card assembly. See
2. Remove the two screws securing the fax interface card (modem) assembly (A) to the assembly.
3. Disconnect the connectors from the fax interface card (modem) assembly (A).
4. Remove the fax interface card (modem) assembly (A).

Hard drive removal

1. Remove the RIP card assembly. See
Warning: Do not drop the RIP card assembly, or damage will occur.
2. Remove the fax interface card (modem) assembly. See
page 4-74.
3. Remove the two connectors from the hard drive (A).
4. Remove the four screws securing the hard drive (B) to the side of the RIP card assembly (A).
5. Remove the hard drive (B).
Warning: Do not drop the hard drive, or damage will occur.
4-74
Service Manual
"RIP card assembly removal" on page
A
"RIP card assembly removal" on page
4-73.
4-73.
"Fax interface card (modem) assembly removal" on
