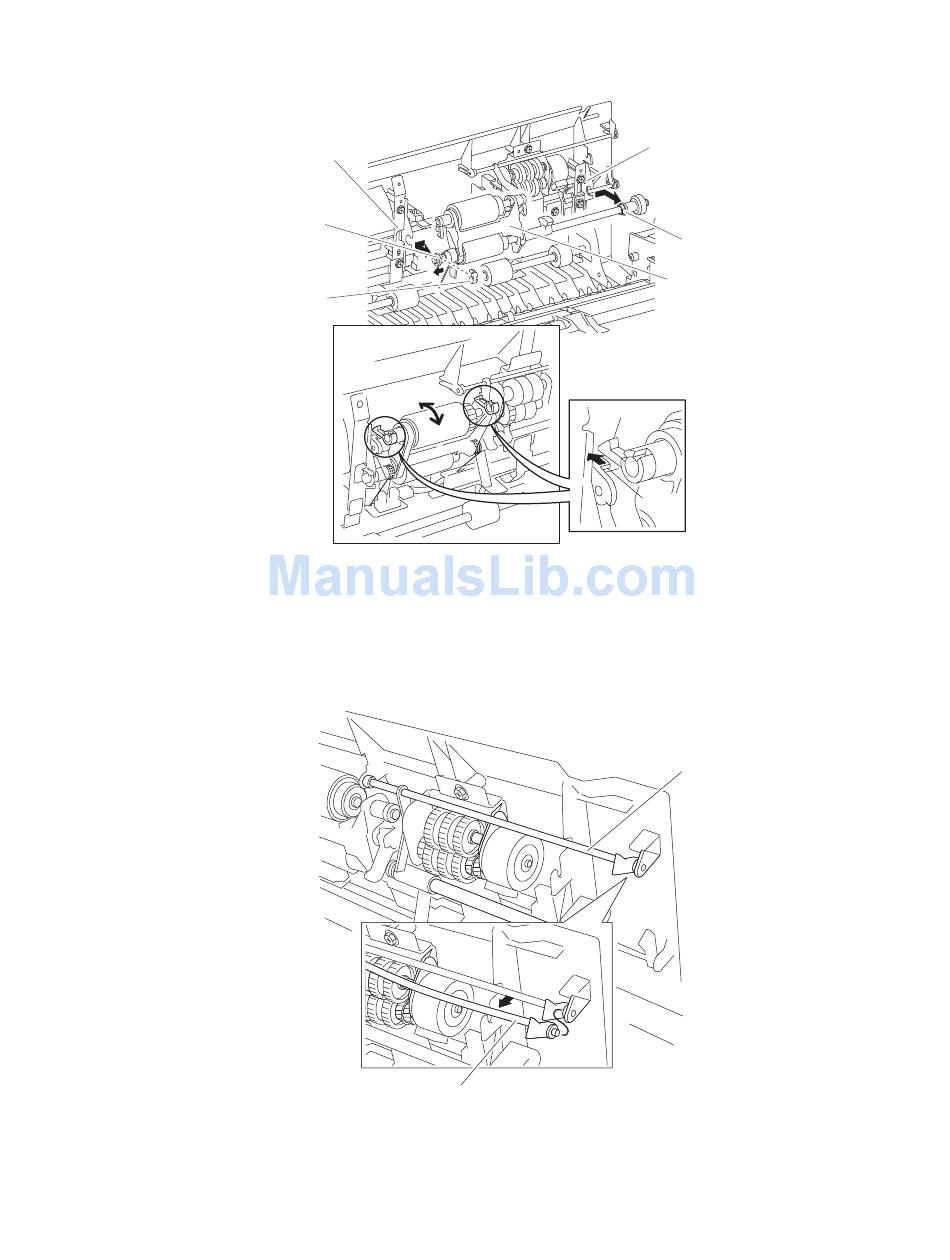

Document set actuator removal

1. Open the ADF left cover assembly.
"ADF left cover media guide removal" on page
4-144.
2. Remove the ADF left cover media guide. See
3. Gently pry the document set actuator (A) from the ADF left cover assembly.
4. Remove the document set actuator (A).
A
A
4-143
