Lower Printer Engine Card Assembly Removal - Lexmark X940e Service Manual

7510

Lower printer engine card assembly removal

1. Remove the rear cover assembly. See
2. Remove the rear upper cooling fan bracket assembly. See
removal" on page
3. Remove the developer / transfer roll HVPS card assembly. See
removal" on page
4. Remove the lower printer engine card bracket assembly. See
removal" on page

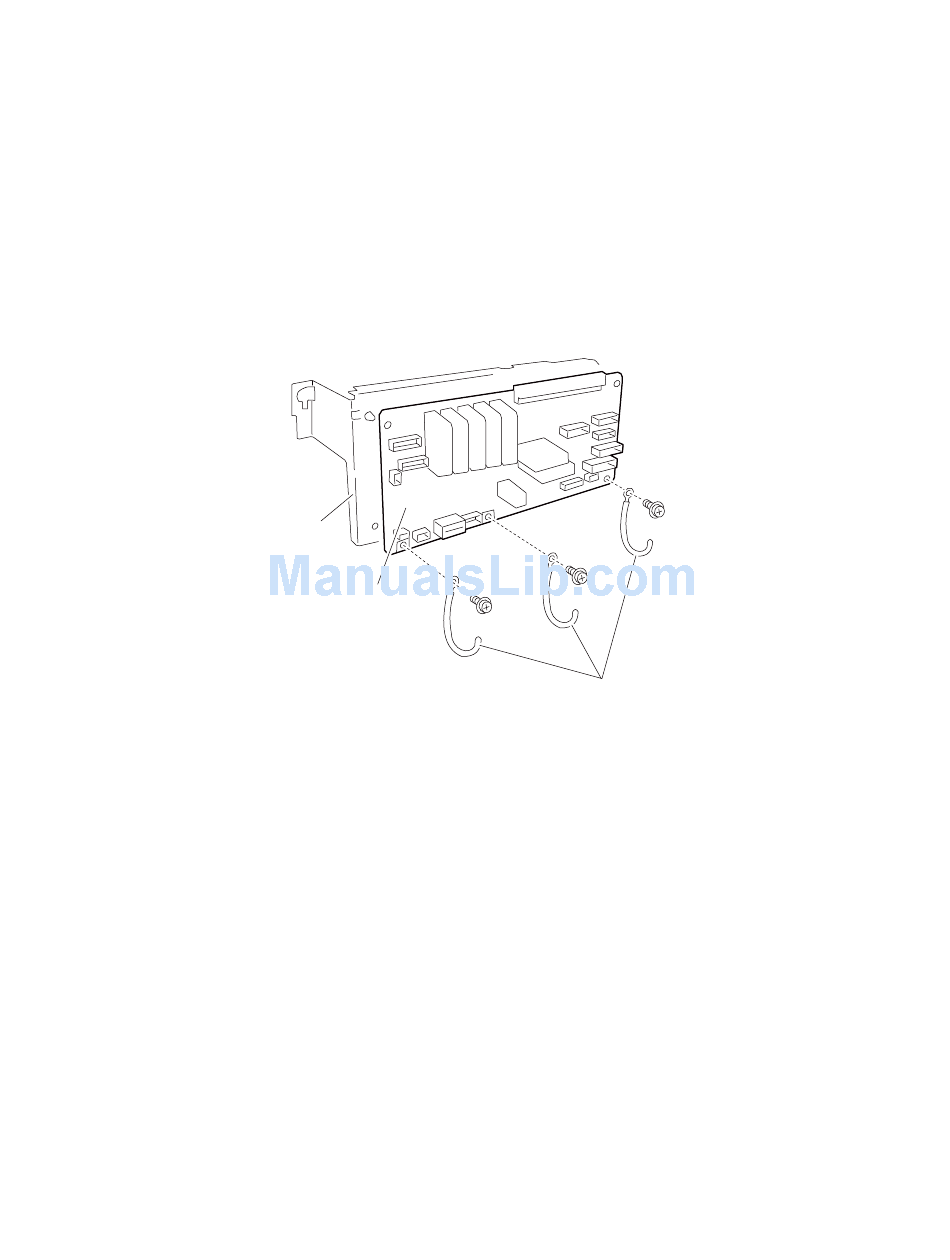

5. Remove the three screws securing the lower printer engine card assembly (A) to the lower printer engine card
bracket assembly (B).
6. Release the two plastic retainers with needle nose pliers securing the lower printer engine card assembly (A) to
the lower printer engine card bracket assembly (B).
7. Remove the lower printer engine card assembly (A).
4-80
Service Manual
"Rear cover assembly removal" on page
4-102.
4-103.
4-79.
B
A
4-5.
"Rear upper cooling fan bracket assembly
"Developer / transfer roll HVPS card assembly
"Lower printer engine card bracket assembly
Clamps
