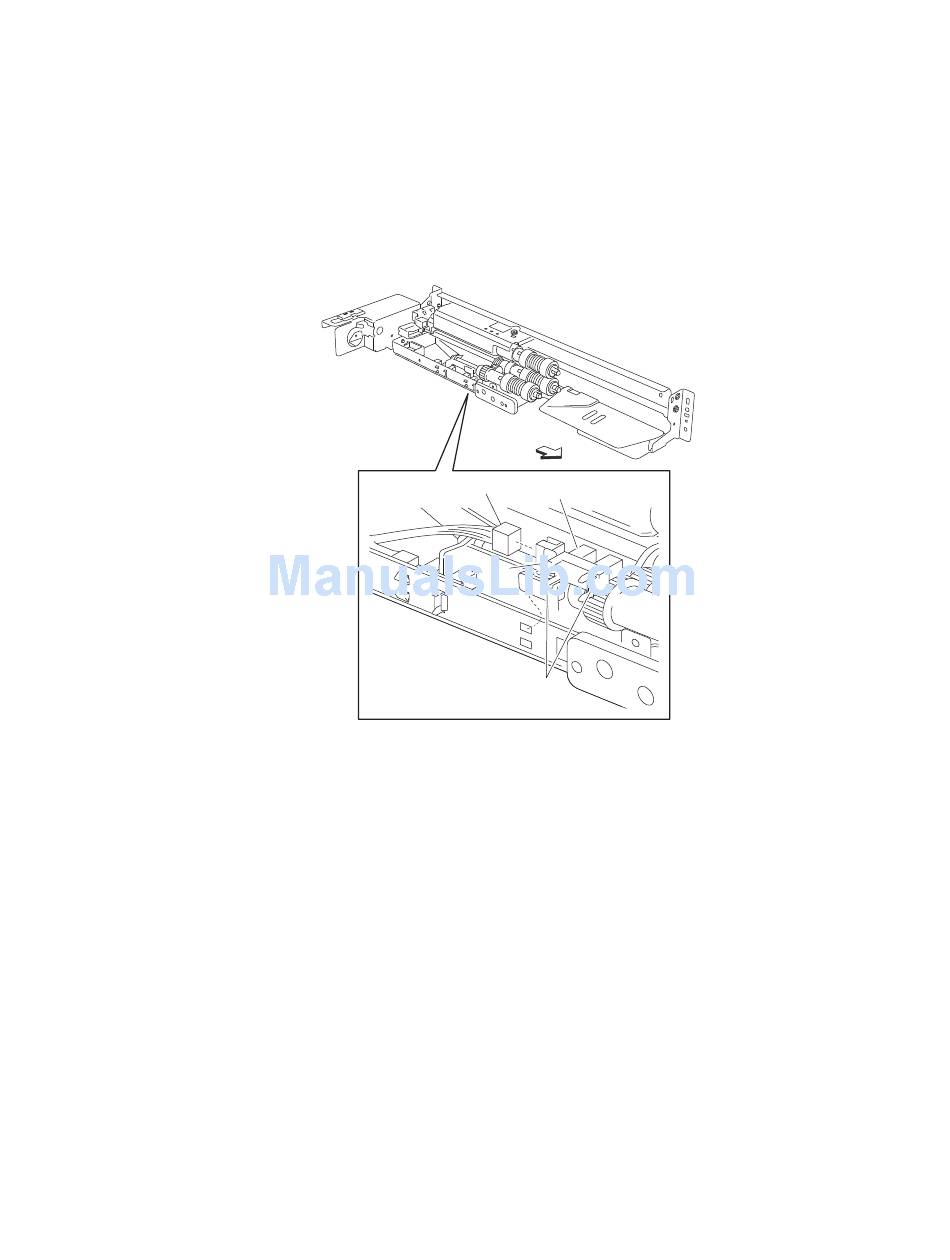

3X 500-sheet drawer (3TM)—sensor (media out) removal
1. Remove the media feed unit assembly.
(tray 2)" on page 4-215
page
4-213.
2. Remove the media out actuator. See
page
4-219.
3. Disconnect the connector from the sensor (media out) (A).
4. Release the hooks securing the sensor (media out) (A) to the media feed unit assembly.
5. Remove the sensor (media out) (A).
See"3X 500-sheet drawer (3TM)–media feed unit assembly removal
"3X 500-sheet drawer (3TM)–media feed unit assembly removal (tray 3)" on
or
"3X 500-sheet drawer (3TM)–media out actuator removal" on
Harness
Hook
Hooks
Lower view
Front
A
7510
4-221
Repair information
