ADF registration motor removal

1. Open the ADF left cover assembly.
2. Lift the document tray assembly.

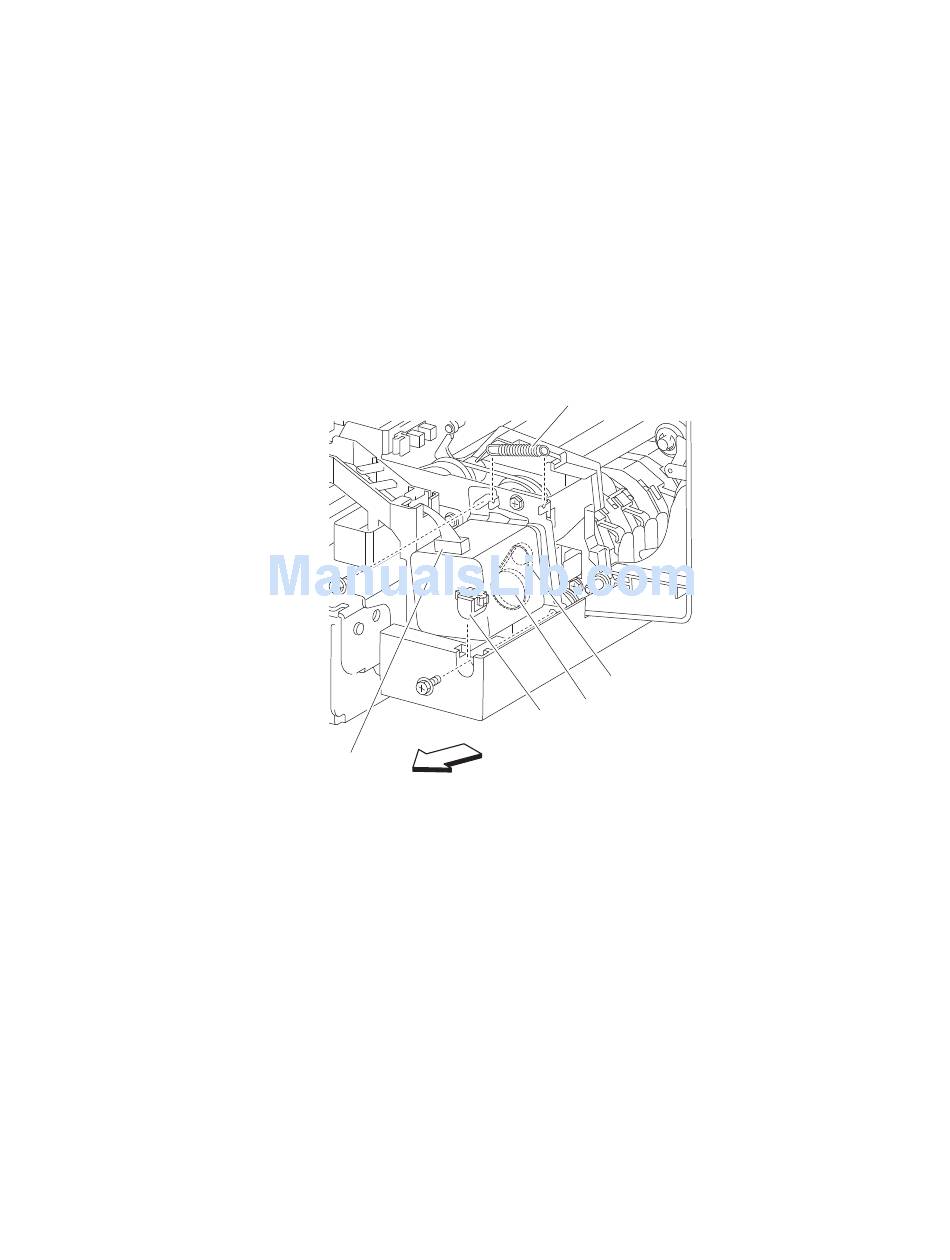

3. Remove the ADF rear cover. See
4. Remove the access cap (A).
5. Disconnect the connector from the ADF registration motor (A).
6. Remove the tension spring (B) from the ADF registration motor (A).
7. Remove the two screws securing the ADF registration motor (A).
8. Remove the registration main drive belt (C).
Replacement note: Before reinstalling the ADF registration motor (A), place the registration main drive belt (C)
on the registration main drive pulley 21/54T (D).
Replacement note: Ensure that the registration main drive belt (C) is properly routed.To correctly set the
registration main drive belt (C) tension, install the ADF registration motor (A) and the tension spring (B) before
completely tightening the two screws.
"ADF rear cover removal" on page
Rear
Connector
4-131.
B
C
D
A
Repair information
7510
4-159
