Bridge Card Assembly Removal - Lexmark X940e Service Manual

7510

Bridge card assembly removal

1. Remove the rear cover assembly. See
2. Remove the right cover assembly. See
3. Remove the top cover assembly. See
4. Remove the RIP card assembly. See
5. Remove the controller box top cover assembly. See
page 4-69.
6. Remove the switch (main power). See
7. Remove the controller box assembly. See

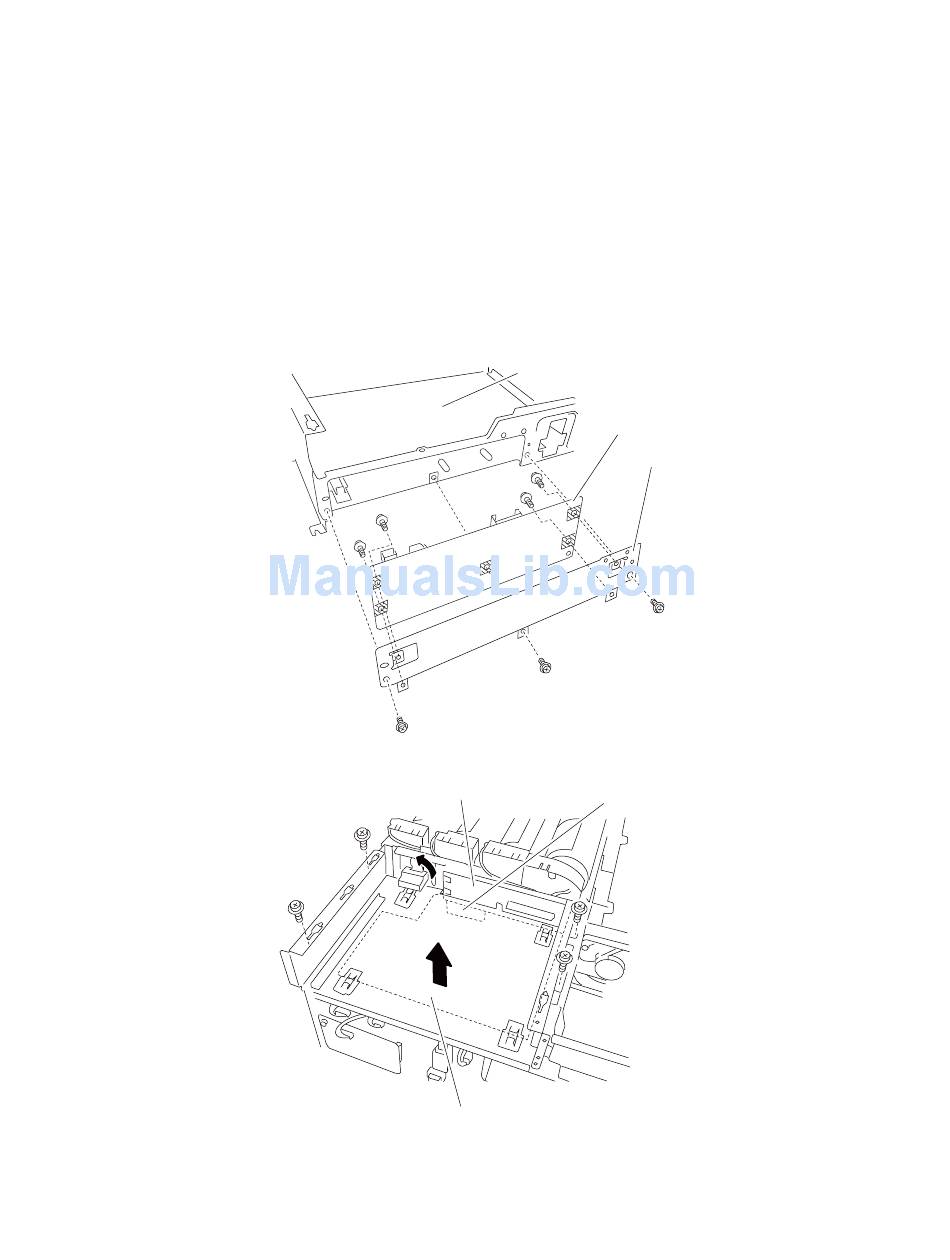

8. Remove the three screws securing the bracket (A) to the controller box assembly (B).
9. Remove the bracket (A).
10. Remove the four screws securing the bridge card assembly (C) to the bracket (A).
11. Remove the bridge card assembly (C).
Replacement warning: Ensure that the bridge card assembly (C) and the lower printer engine card (D) are
connected.
4-72
Service Manual
"Rear cover assembly removal" on page
"Right cover assembly removal" on page 4-4
"Top cover assembly removal" on page
"RIP card assembly removal" on page
"RIP card cooling fan cover assembly removal" on
"Switch (main power) removal" on page
"Controller box assembly removal" on page
B
C
D
4-5.
4-4.
4-73.
4-71.
4-70.
C
A
Connector
