1X 500-sheet drawer (1TM)—sensor (media level) removal
1. Remove the media feed unit assembly. See
(tray 2)" on page
2. Disconnect the connector from the sensor (media level) (A).
3. Release the hooks securing the sensor (media level) (A) to the media feed unit assembly.
4. Remove the sensor (media level) (A).
4-242
Service Manual
"1X 500-sheet drawer (1TM)–media feed unit assembly removal
4-236.

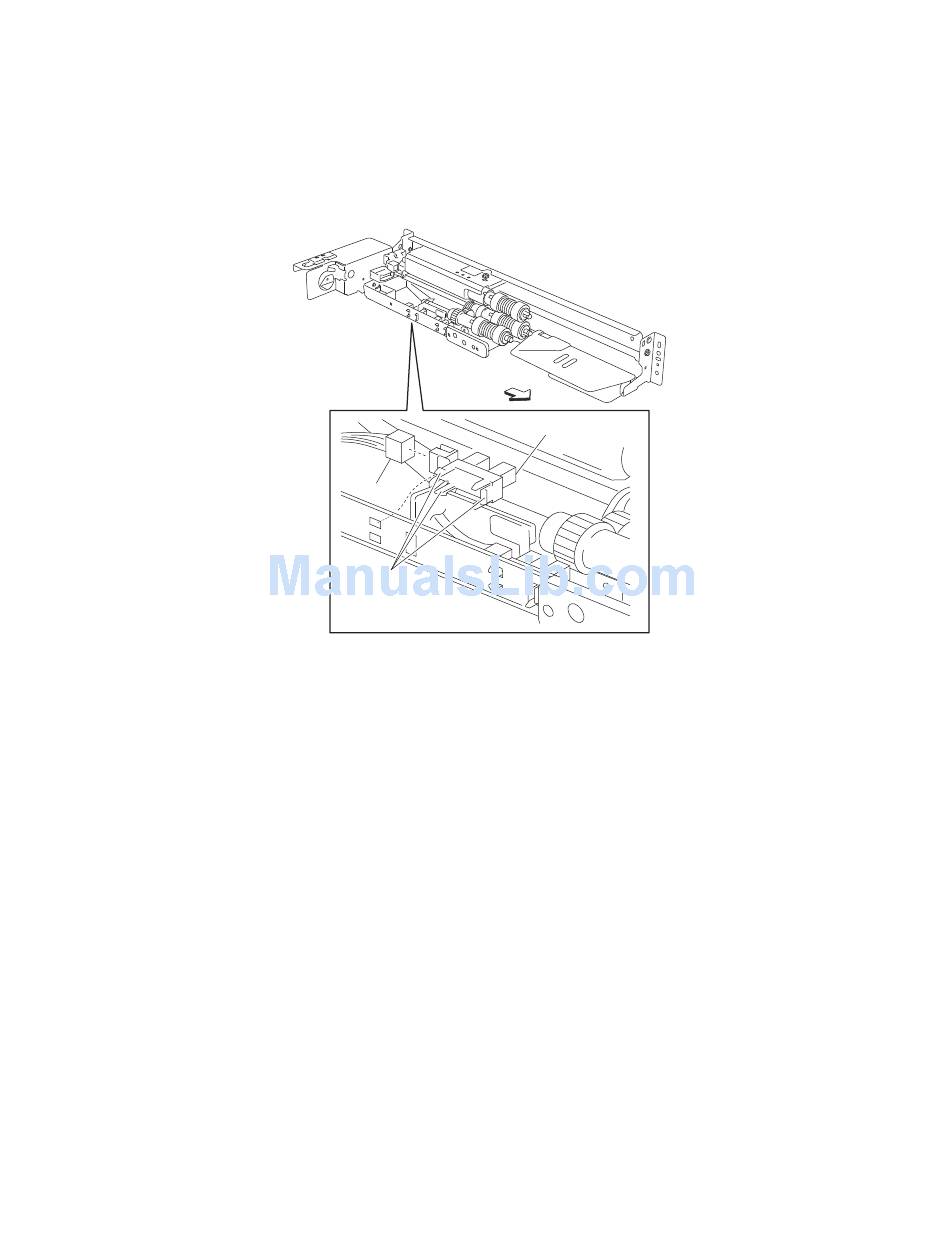

Harness
Hooks
Lower view
Front
A
