7510
3X 500-sheet drawer (3TM)—one-way 22 tooth removal
1. Remove the media tray assembly.
2. Remove the feed roll. See
3. Remove the feed roll one-way clutch. See
on page 4-194.

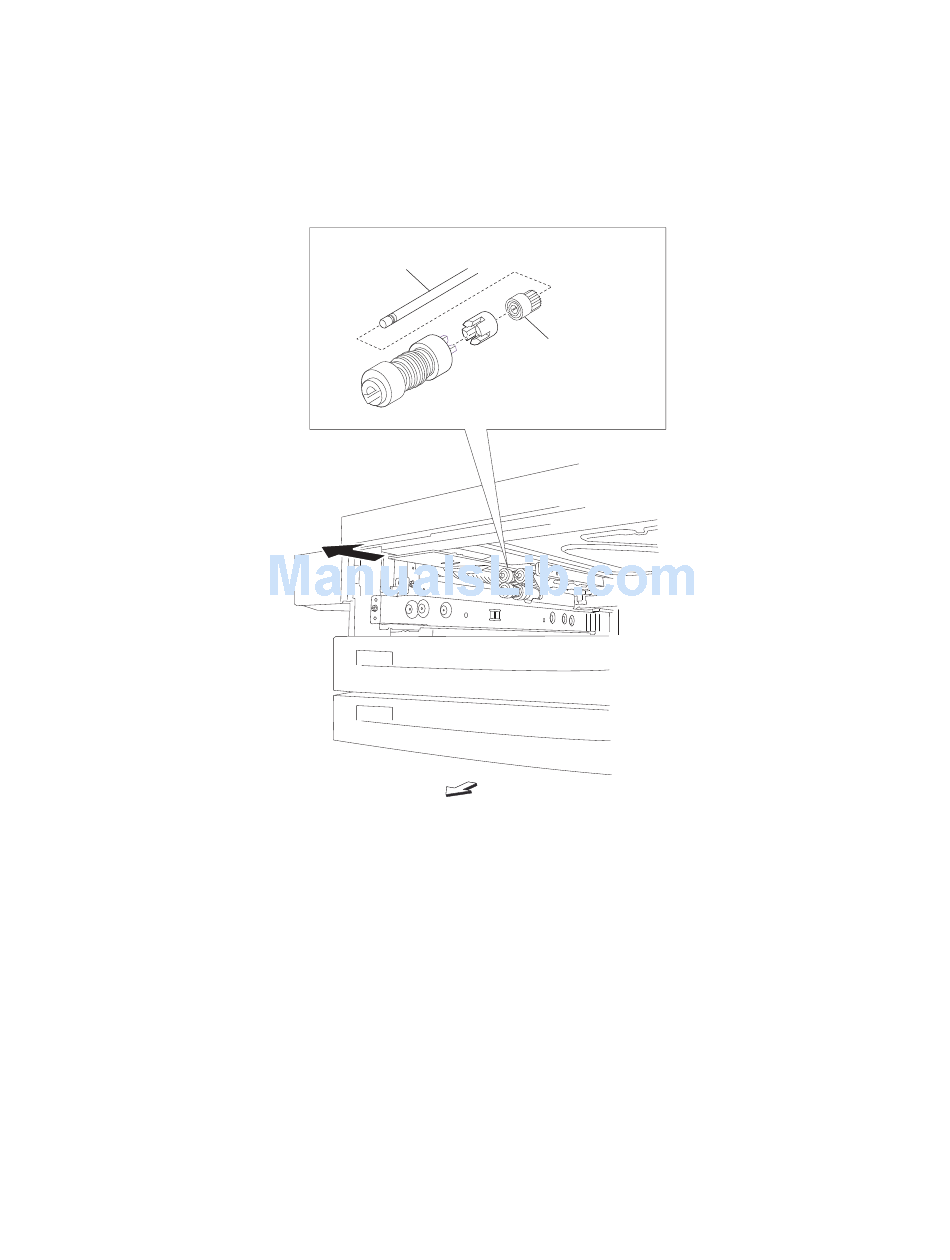

4. Remove the feed roll one-way gear 22 tooth (A).
4-224
Service Manual
"2000-sheet dual input (TTM)–feed roll removal" on page
"2000-sheet dual input (TTM)–feed roll one-way clutch removal"
B
Front
A
4-193.
