Warning: Note the orientation of the harnesses to ensure they are not pinched when replacing the harness
access cover (A), or damage will occur.

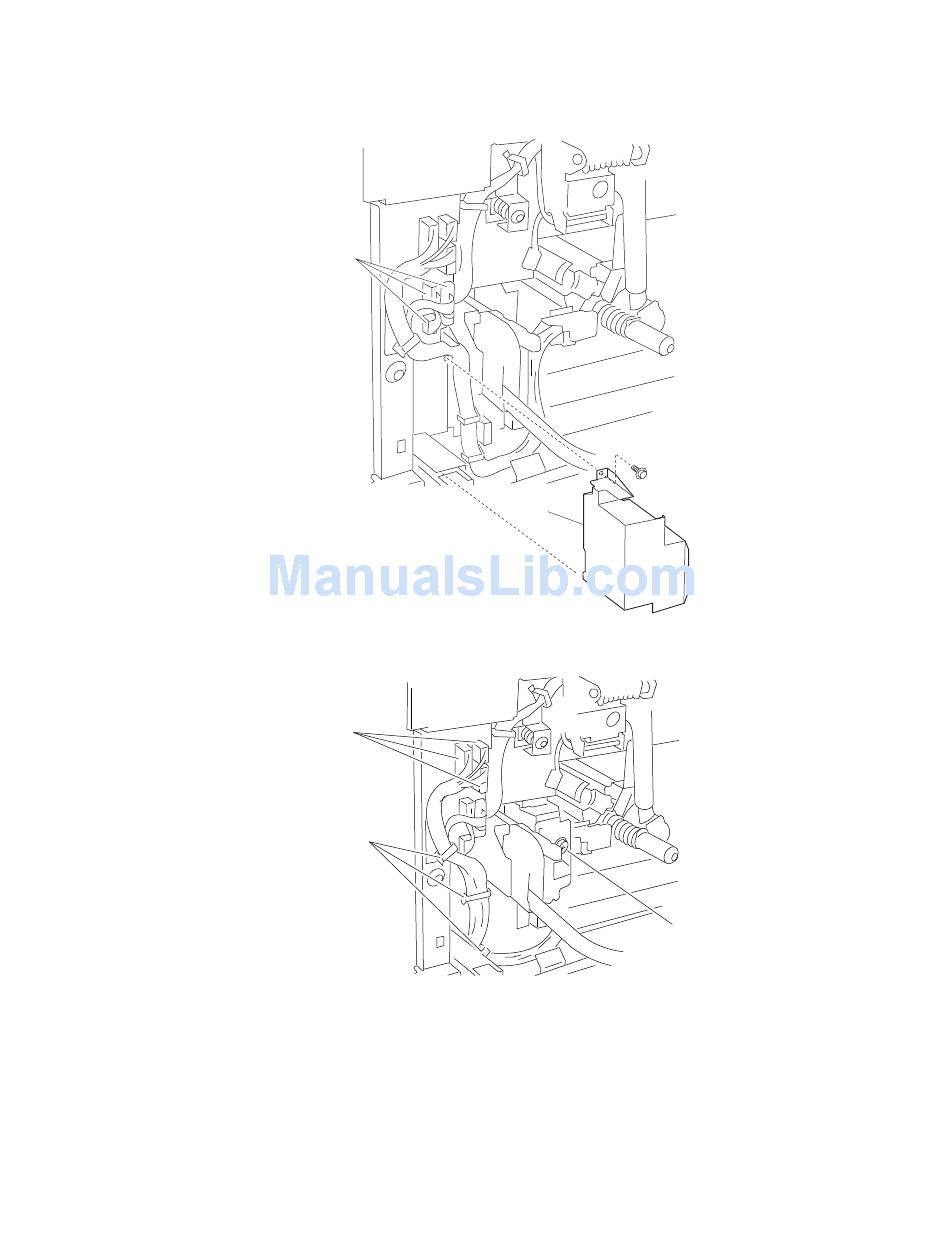

8. Remove the harness access cover (A) from the machine.
9. Disconnect the three connectors from the image density sensor assembly (B).
10. Release the harnesses from the clamps.
11. Remove the screw securing the image density sensor assembly (B) to the machine.
Note: Ensure the transfer belt lift handle is in its lower-most position before removing the image density sensor
assembly (B).
4-46
Service Manual
Connectors
Connectors
Clamps
A
B
