2000-sheet dual input (TTM) removals

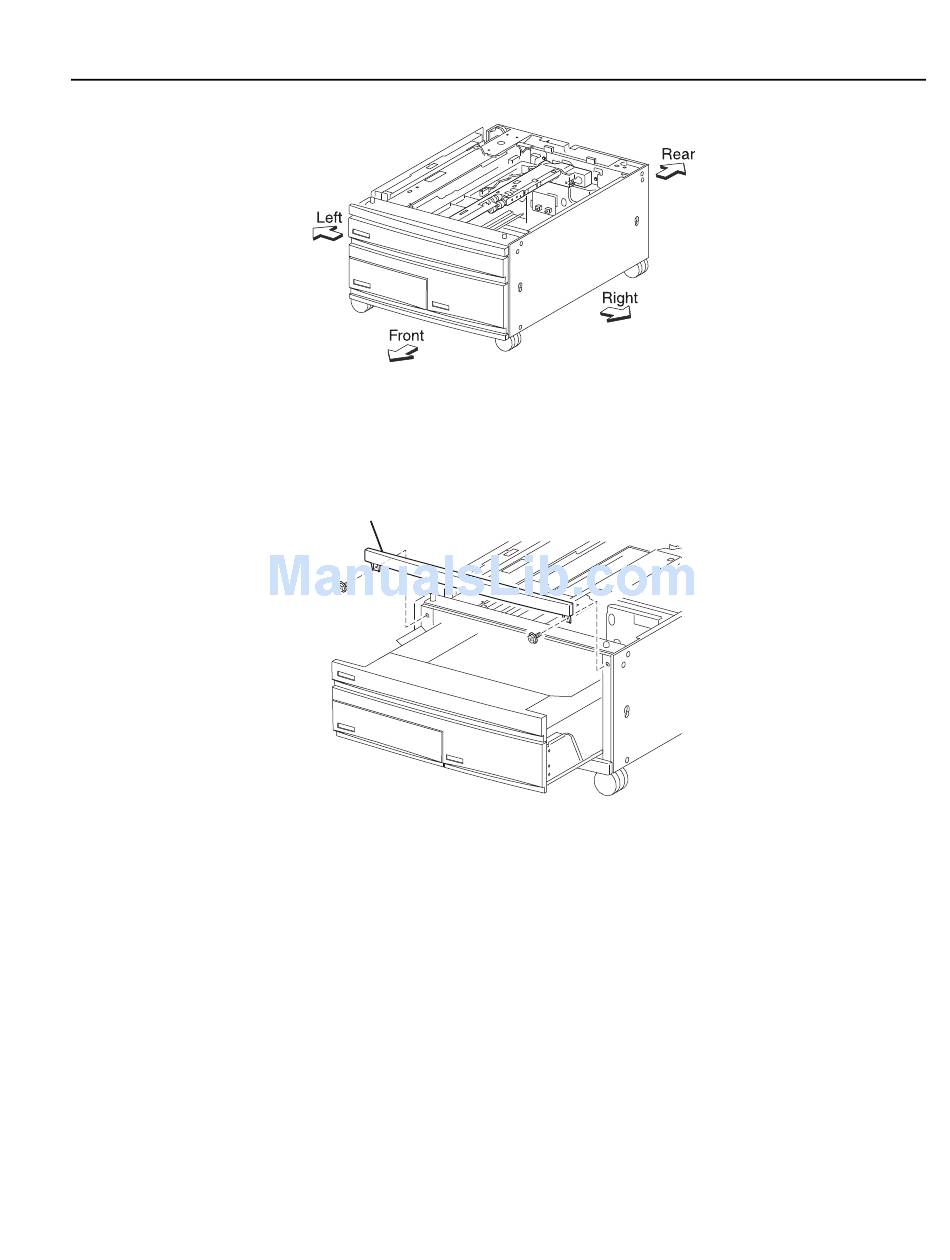

2000-sheet dual input (TTM)—top cover removal
1. Pull out tray 2 assembly.
2. Remove the two screws securing the top cover (A).
3. Remove the top cover (A).
2000-sheet dual input (TTM)—foot cover removal
1. Pull out the TTM media tray 3 assembly.
2. Pull out the media tray 4 assembly.
3. Remove the two screws securing the foot cover (A) to the machine.
