12. Remove the tray 4 rear cables (D) from the bottom plate (H).

Replacement note: Before re-installing:

It is recommended that all four cables be replaced.

Ensure tray 4 rear cables (D) are not twisted or kinked.

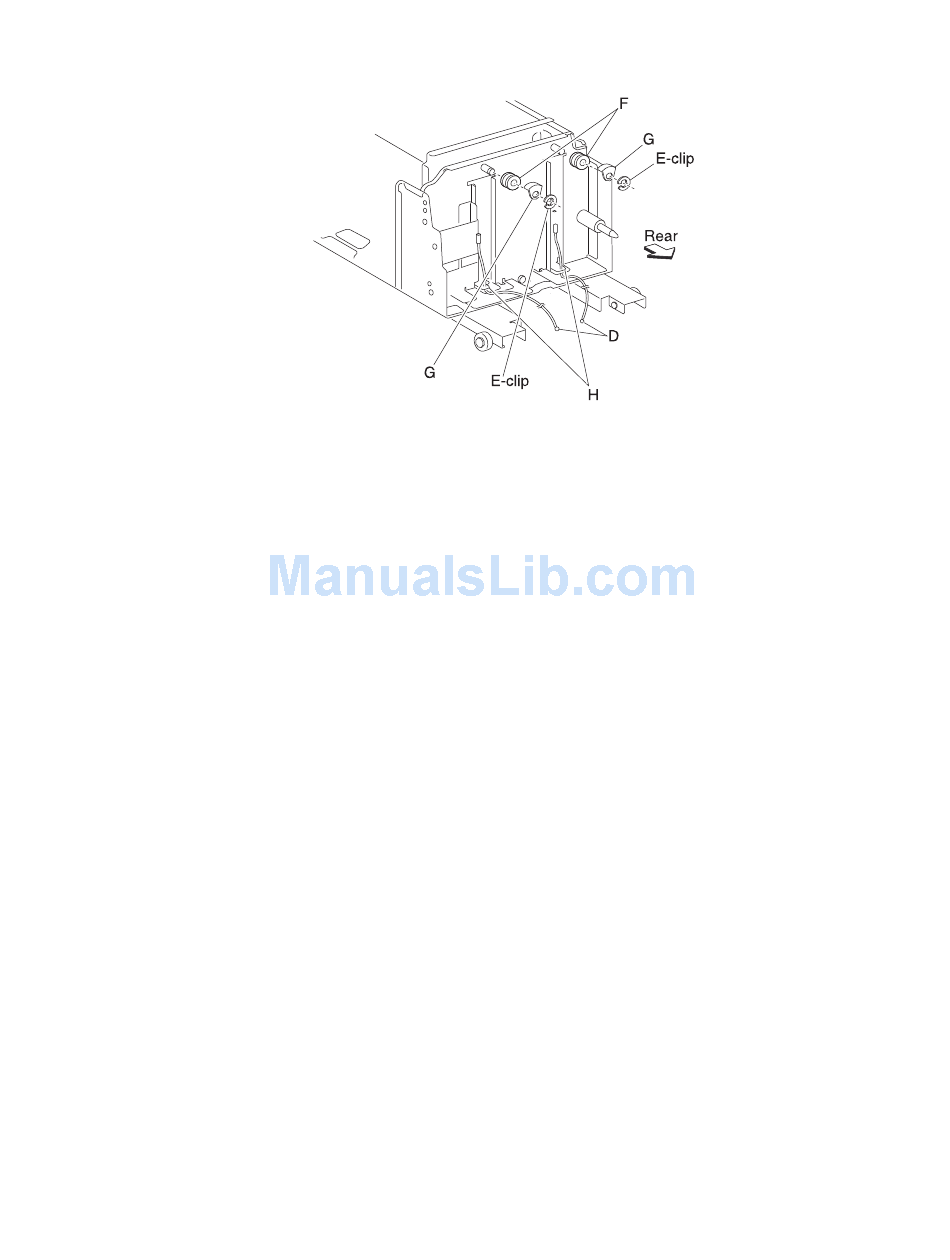

Route the cables properly as shown in the figure.

Replace the cables by setting the frame assembly on its side as shown in the figure.
