Rear Upper Cooling Fan Bracket Assembly Removal; Rear Upper Cooling Fan Removal - Lexmark X940e Service Manual

7510

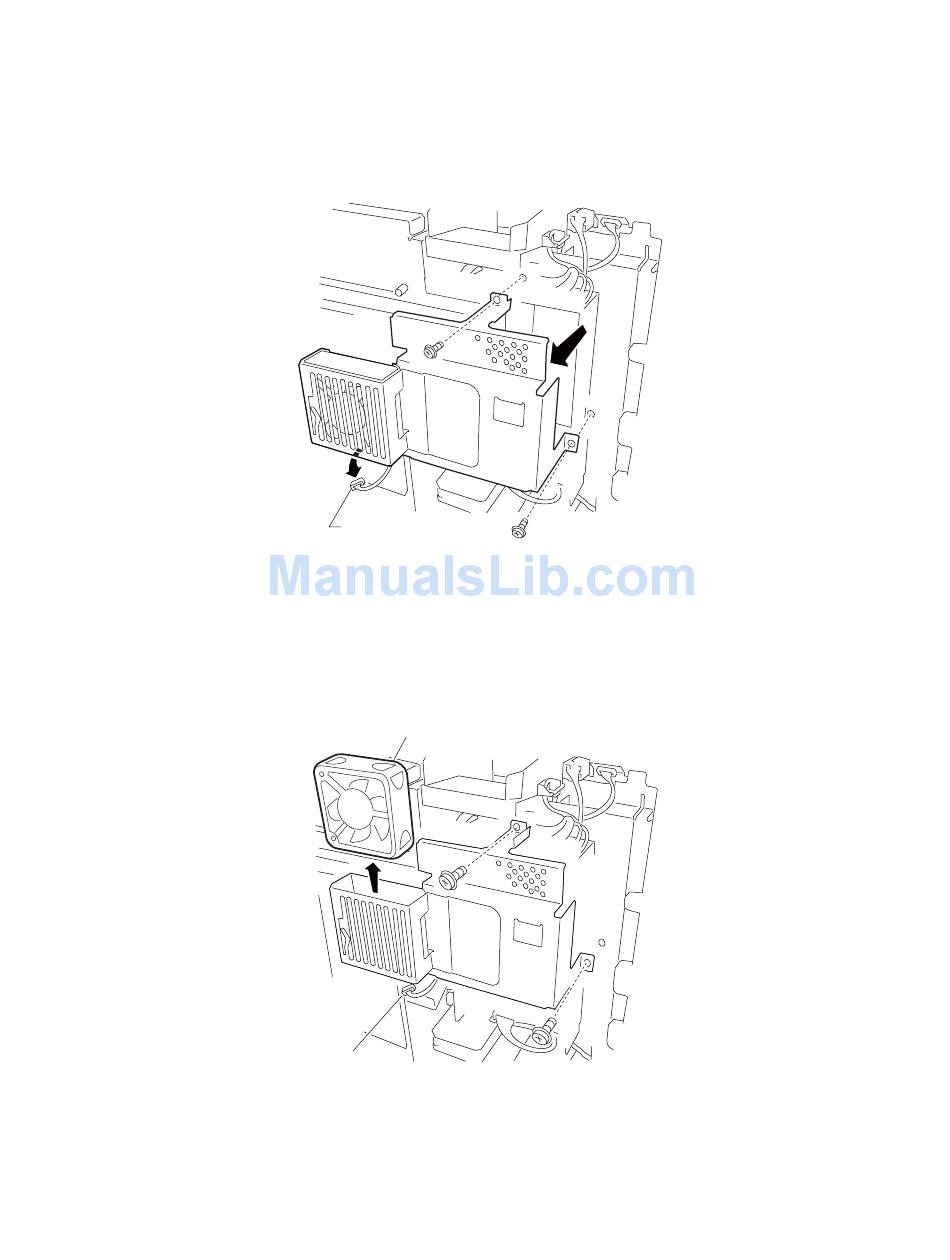

Rear upper cooling fan bracket assembly removal

1. Remove the rear cover assembly. See
2. Disconnect the connector from the rear upper cooling fan bracket assembly (A).
3. Remove the two screws securing the upper cooling fan bracket assembly (A) to the machine.
4. Remove the rear upper cooling fan bracket assembly (A).

Rear upper cooling fan removal

1. Remove the rear cover assembly. See
2. Remove the rear upper cooling fan bracket assembly. See
removal" on page
3. Disconnect the connector from the rear upper cooling fan (A).
4. Remove the rear upper cooling fan (A) from the rear upper cooling fan bracket.
4-102
Service Manual
"Rear cover assembly removal" on page
Connector
"Rear cover assembly removal" on page
4-102.
A
Connector
4-5.
4-5.
"Rear upper cooling fan bracket assembly
