Sensor (MPF media out) removal

1. Remove the rear cover assembly. See
2. Remove the rear left middle cover. See
3. Remove the MPF feed unit assembly. See

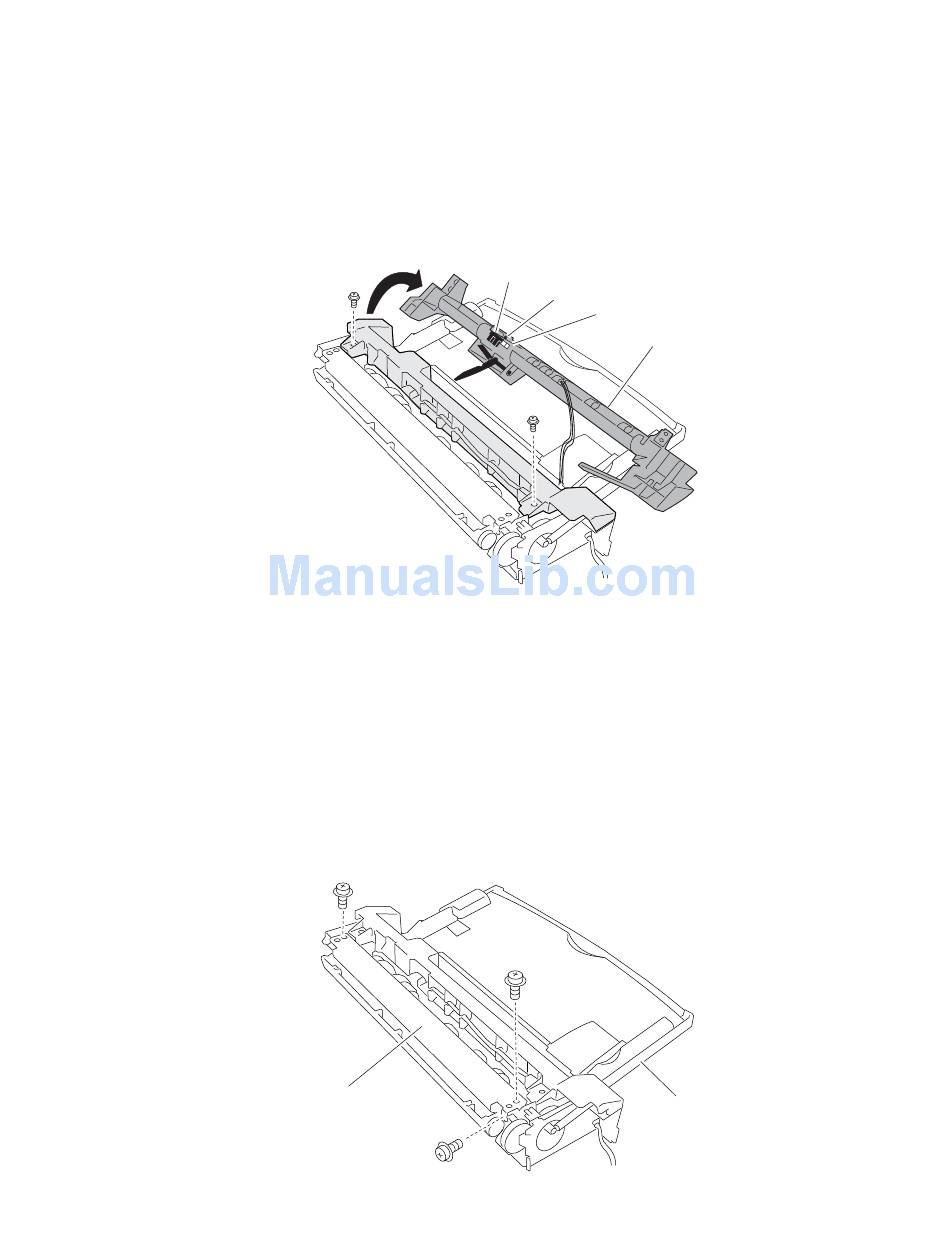

4. Remove the two screws securing the upper frame cover (A).
5. Remove the upper frame cover (A).
6. Release the hooks securing the sensor (MPF media out) (B) to the upper frame cover (A).
7. Remove the sensor (MPF media out) (B).

MPF pick roll assembly removal

1. Remove the rear cover assembly. See
2. Remove the rear left middle cover. See
3. Remove the MPF feed unit assembly. See
4. Remove the three screws securing the MPF pinch roll assembly (A) to the MPF feed unit assembly (B).
5. Remove the MPF pinch roll assembly (A).
6. Release the two hooks of the two feed shaft cores (B), and move them both outwards in the directions in the
arrows.
Note: When removing the MPF feed roll assembly (C), do not touch the rubber surface.
7. Remove the two MPF feed roll assemblies (C) by moving them outward in the direction of the arrows and lifting
upwards.
"Rear cover assembly removal" on page
"Rear left middle cover removal" on page
"MPF feed unit assembly removal" on page
B
"Rear cover assembly removal" on page
"Rear left middle cover removal" on page
"MPF feed unit assembly removal" on page
A
Hooks
Connector
A
B
Repair information
7510
4-5.
4-6.
4-8.
4-5.
4-6.
4-8.
4-111
