1X 500-sheet drawer (1TM)—feed roll removal
1. Remove the media tray assembly.

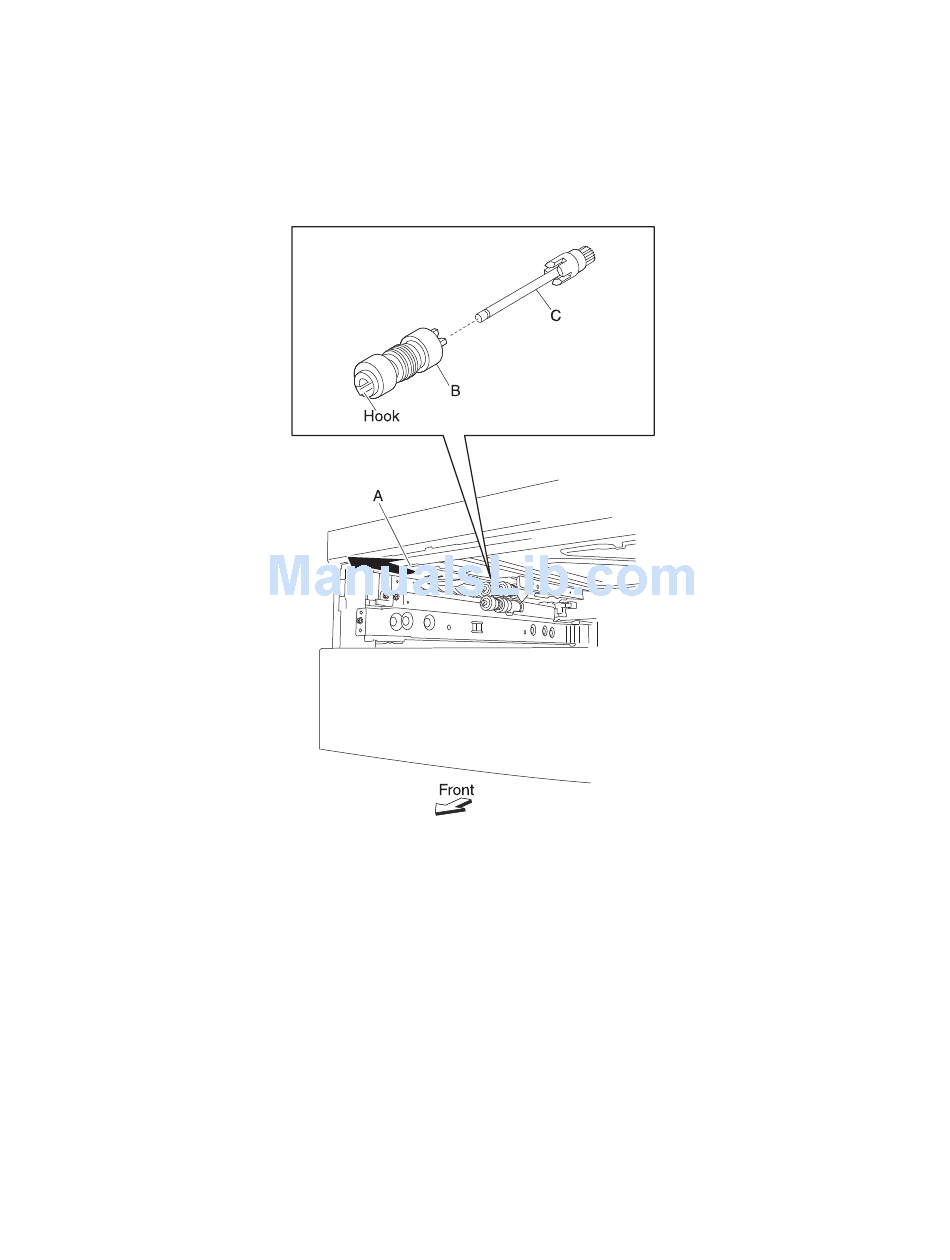

2. Move the feed unit front guide (A) toward the front in the direction of the arrow.
3. Release the hook securing the feed roll (B) to the shaft (C).
4. Remove the feed roll (B).
Note: Do not touch the rubber surface of the feed roll (B).
Replacement note: Before re-installing, do not touch the rubber surface of the feed roll (B).
