2000-sheet dual input (TTM)—switch (TTM left door interlock) removal

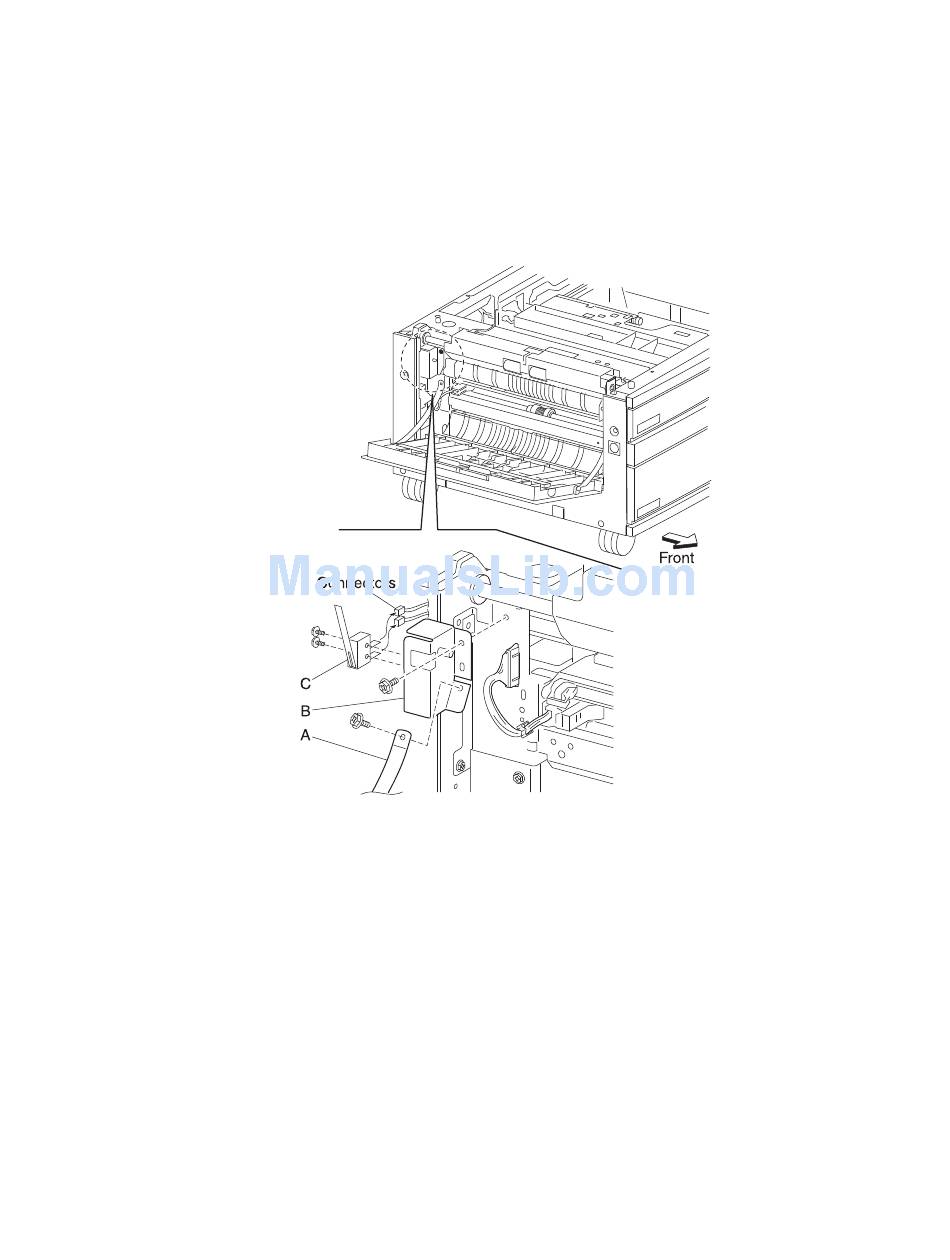

1. Open the TTM left door assembly.
2. Remove the screw securing the support strap (A) to the machine.
3. Remove the screw securing the bracket (B) to the machine.
4. Remove the bracket (B).
5. Disconnect the two connectors from the switch (TTM left door interlock) (C).
6. Remove the two screws securing the switch (TTM left door interlock) (C) to the bracket (B).
7. Remove the switch (TTM left door interlock) (C).
4-201
