Mpf Feed Roll; Mpf Pick Solenoid; Sensor (Mpf Media Out); Sensor (Mpf Media Width) - Lexmark X940e Service Manual

7510

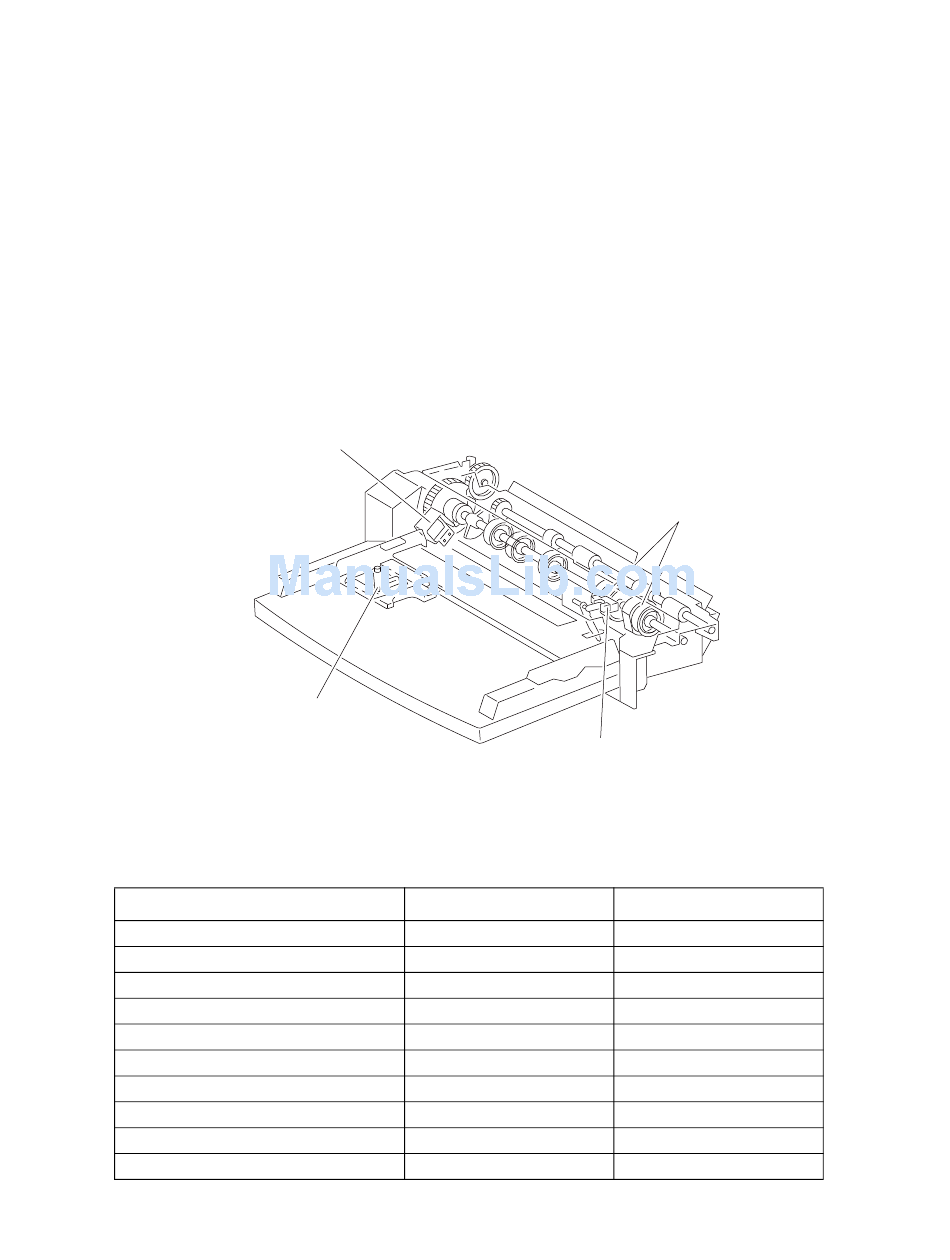

The MPF is a mechanical unit suppling media to the printer. The driving force from the MPF/transport drive
motor is transmitted to the MPF feed roll to feed media.

MPF feed roll

The MPF feed rolls feed media set on the MPF and into the printer.

MPF pick solenoid

The MPF pick solenoid transmits the driving force from the MPF/transport drive to the MPF feed rolls.

Sensor (MPF media out)

The sensor (MPF media out) detects whether media is present on the MPF.

Sensor (MPF media width)

The MPF side guides detects the width (length in the main scanning direction) of media on the MPF.
Sensor (MPF media width)

Media size

The following table details the standard paper and envelope sizes supported by the Lexmark X945e MFPs and
options.
Media
A4
A5
A3
JIS B5
JIS B4
Letter
Tabloid
Legal
Executive
Folio
1-10
Service Manual
MPF pick solenoid
210 mm
148 mm
297 mm
182 mm
257 mm
8.5 inches
11 inches
8.5 inches
7.25 inches
8.5 inches
MPF pick rolls
Sensor (MPF media out)
Width
297 mm
210 mm
420 mm
257 mm
364 mm
11 inches
17 inches
14 inches
10.5 inches
13 inches
Length
