Charge roll HVPS card assembly removal

1. Remove the rear cover assembly. See
2. Remove the rear upper cooling fan bracket assembly. See
removal" on page
3. Remove the developer / transfer roll HVPS card assembly. Go to
assembly removal" on page

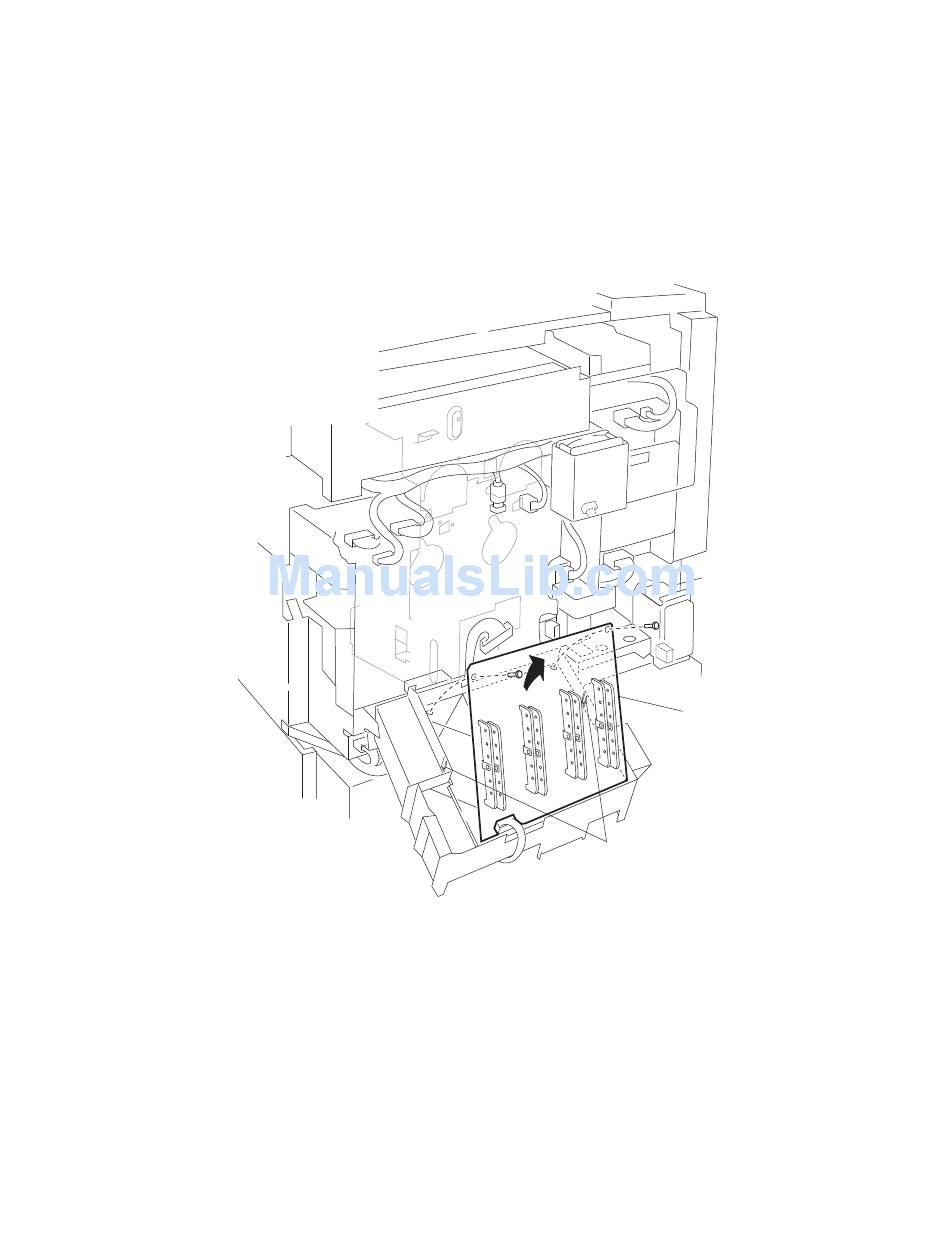

4. Remove the two screws securing the charge roll HVPS card assembly (A) to the assembly.
5. Release the hooks securing the charge roll HVPS card assembly (A) to the assembly.
6. Remove the charge roll HVPS card assembly (A).
4-104
Service Manual
"Rear cover assembly removal" on page
4-102.
4-103.
4-5.
"Rear upper cooling fan bracket assembly
"Developer / transfer roll HVPS card
A
Hooks
