Duplex Media Exit Turn Guide Removal - Lexmark X940e Service Manual

7510

Duplex media exit turn guide removal

1. Remove the rear cover assembly. See
2. Remove the rear left middle cover. See
3. Remove the MPF feed unit assembly. See
4. Remove the printer left door assembly. See
5. Lay the printer left door assembly on a flat surface.

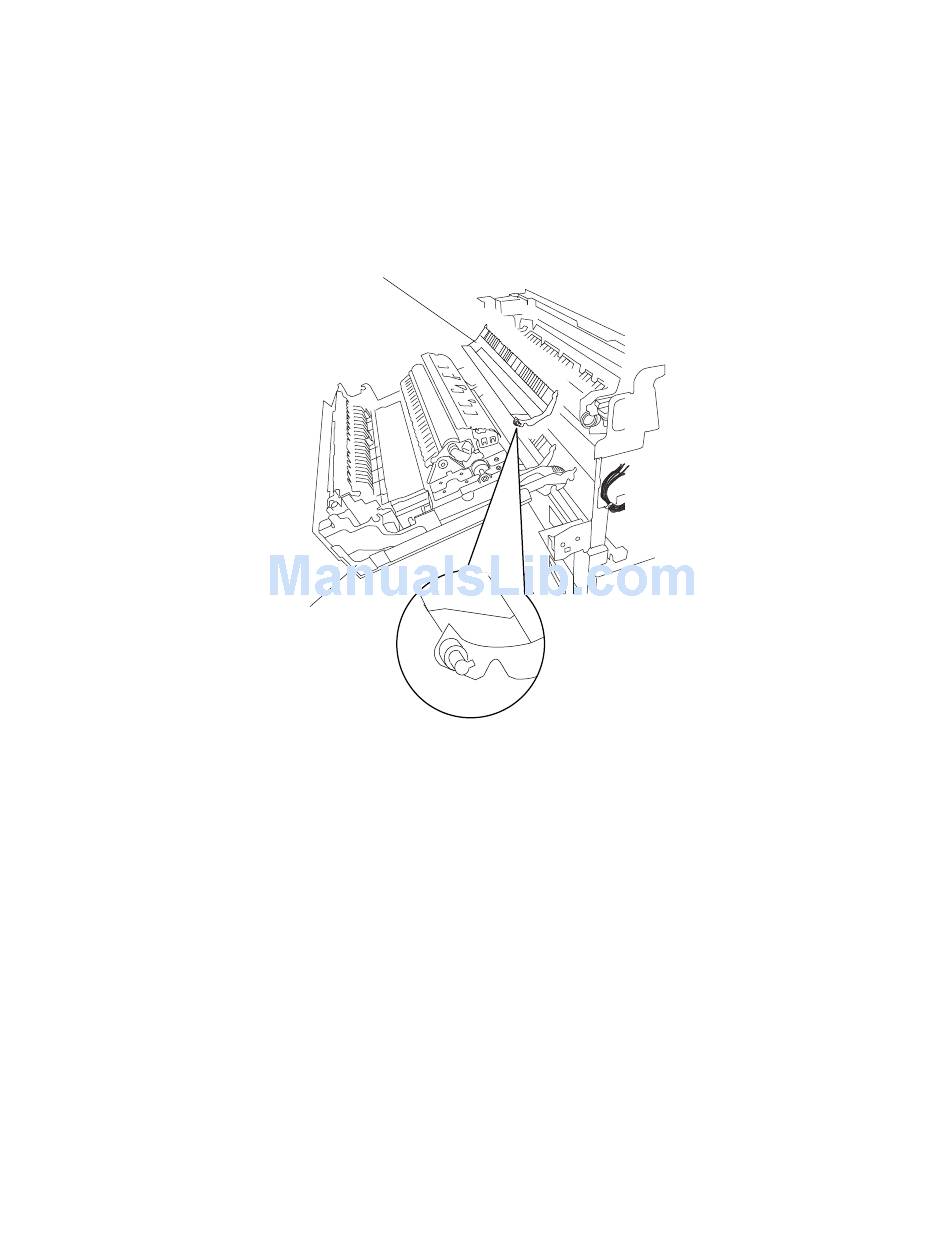

6. Move the duplex media exit turn guide (A) toward the rear, and release the hook from the front hinge.
7. Remove the duplex media exit turn guide (A).
Replacement note: When replacing the printer left door assembly (B), ensure that the black lines are aligned on
the damper assembly (C), or the door will not properly operate.
4-12
Service Manual
"Rear cover assembly removal" on page
"Rear left middle cover removal" on page
"MPF feed unit assembly removal" on page
"Printer left door assembly removal" on page
A
B
4-5.
4-6.
4-8.
4-26.
