AC drive card bracket assembly removal

1. Remove the rear cover assembly. See
2. Remove the rear upper cooling fan bracket assembly. See
removal" on page
3. Remove the developer / transfer roll HVPS card assembly. See
removal" on page
4. Remove the rear left middle cover. See
5. Remove the 24V LVPS card bracket assembly. See
page 4-85.
6. Remove the CMYK transfer HVPS card assembly. See
page 4-94.

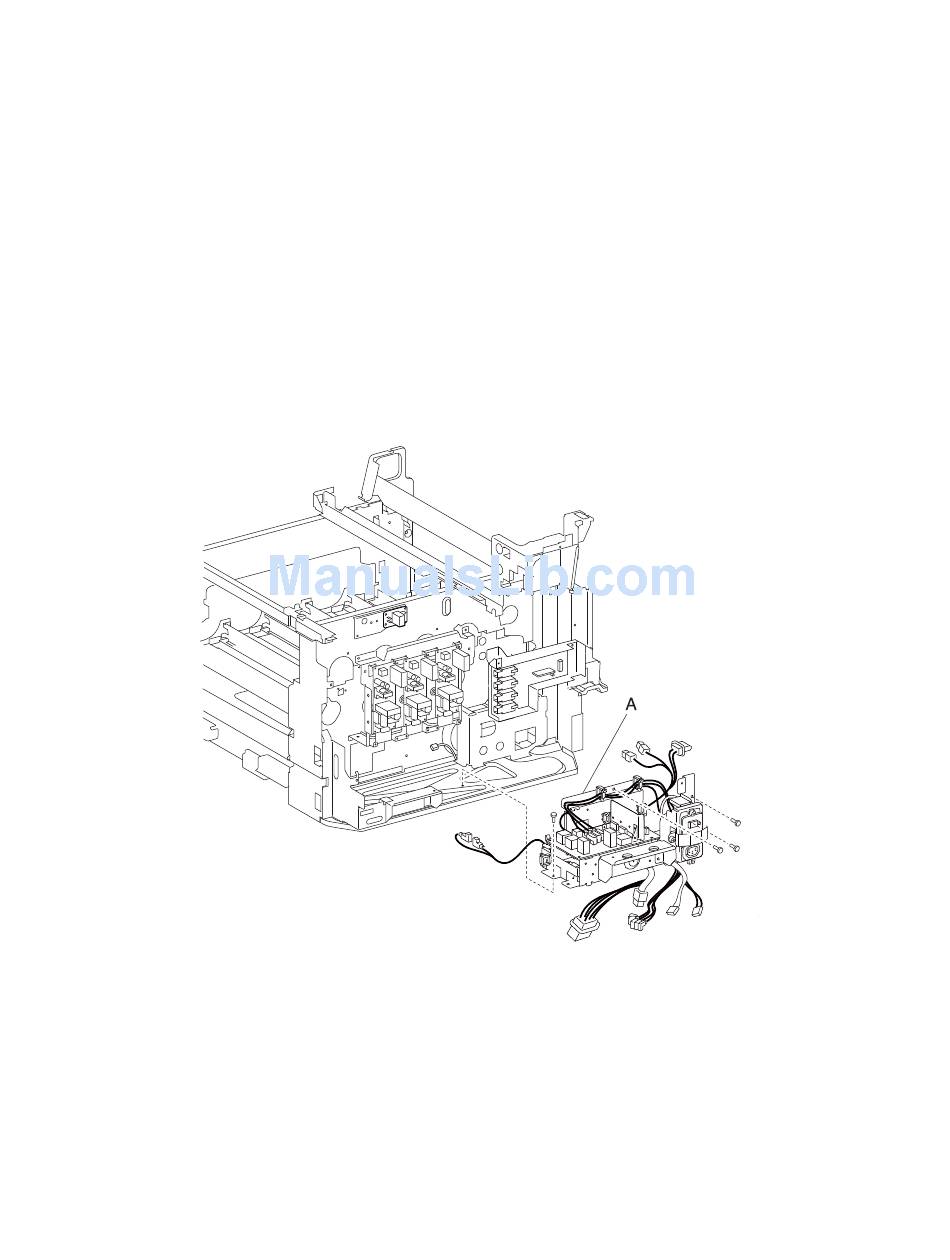

7. Remove four screws securing the AC drive card bracket assembly (A) to the machine.
8. Disconnect the six connectors from the AC drive card bracket assembly (A).
9. Remove the five faston connectors from the AC drive card bracket assembly (A).
10. Remove the three screws securing the AC drive card bracket assembly (A) to the machine.
11. Release the plastic retainer securing the AC drive card bracket assembly (A) to the machine.
12. Remove the AC drive card bracket assembly (A).
4-100
Service Manual
"Rear cover assembly removal" on page
4-102.
4-103.
"Rear left middle cover removal" on page
"Rear upper cooling fan bracket assembly
"Developer / transfer roll HVPS card assembly
"24V LVPS card bracket assembly removal" on
"CMYK transfer HVPS card assembly removal" on
4-5.
4-6.
