1X 500-sheet drawer (1TM)—sensor (media out) removal
1. Remove the media feed unit assembly. See
removal (tray 2)" on page
2. Remove the media out actuator. See
page 4-241.

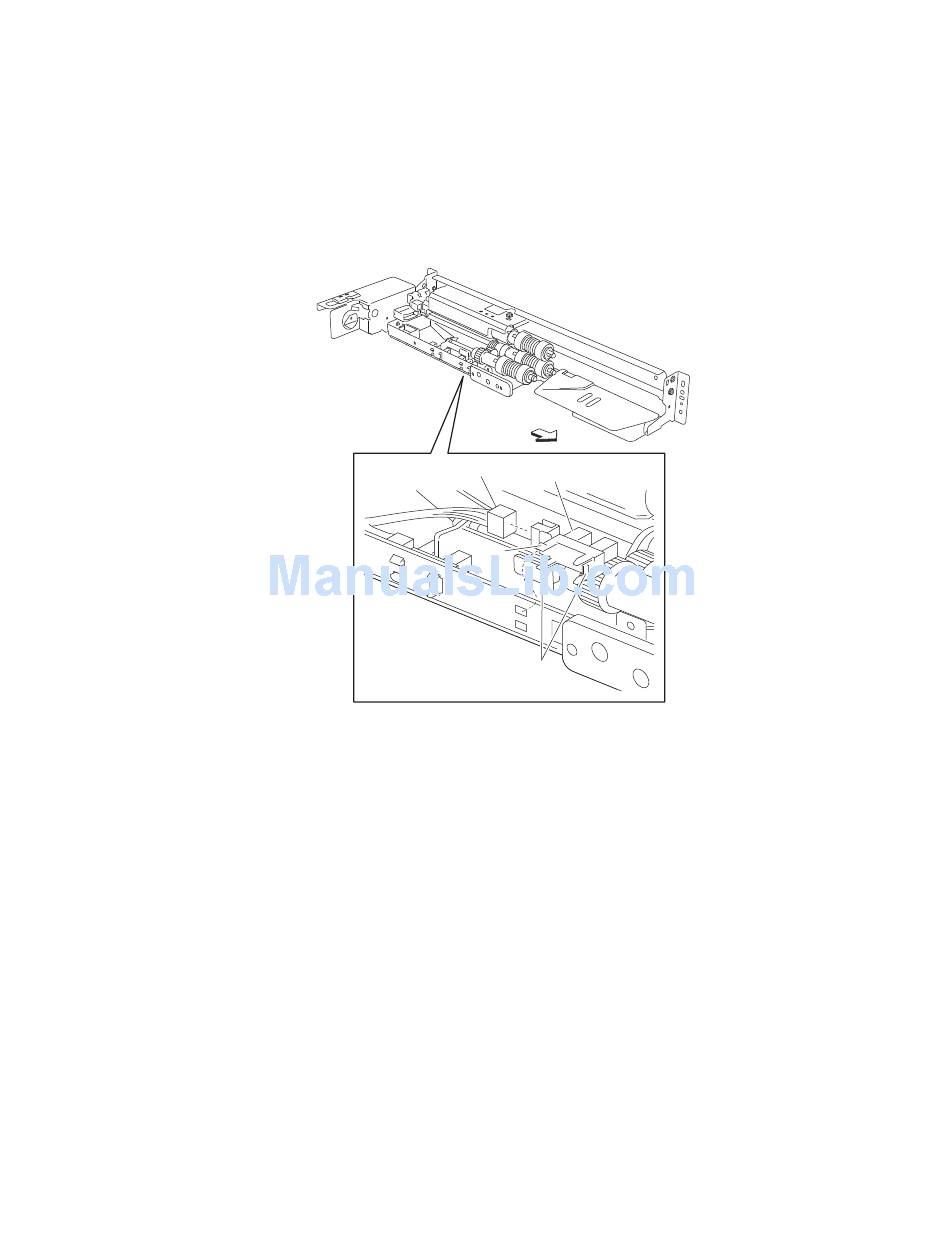

3. Disconnect the connector from the sensor (media out) (A).
4. Release the hooks securing the sensor (media out) (A) to the media feed unit assembly.
5. Remove the sensor (media out) (A).
"1X 500-sheet drawer (1TM)–media feed unit assembly
4-236.
"1X 500-sheet drawer (1TM)–media out actuator removal" on
Front
Harness
Hook
Hooks
Lower view
A
Repair information
7510
4-243
