Packet Format

The master multicasts VRRP packets periodically to declare its existence. VRRP packets are also used
for checking the parameters of the virtual router and electing the master.
Figure 1-3 shows the format of a VRRPv2 packet and

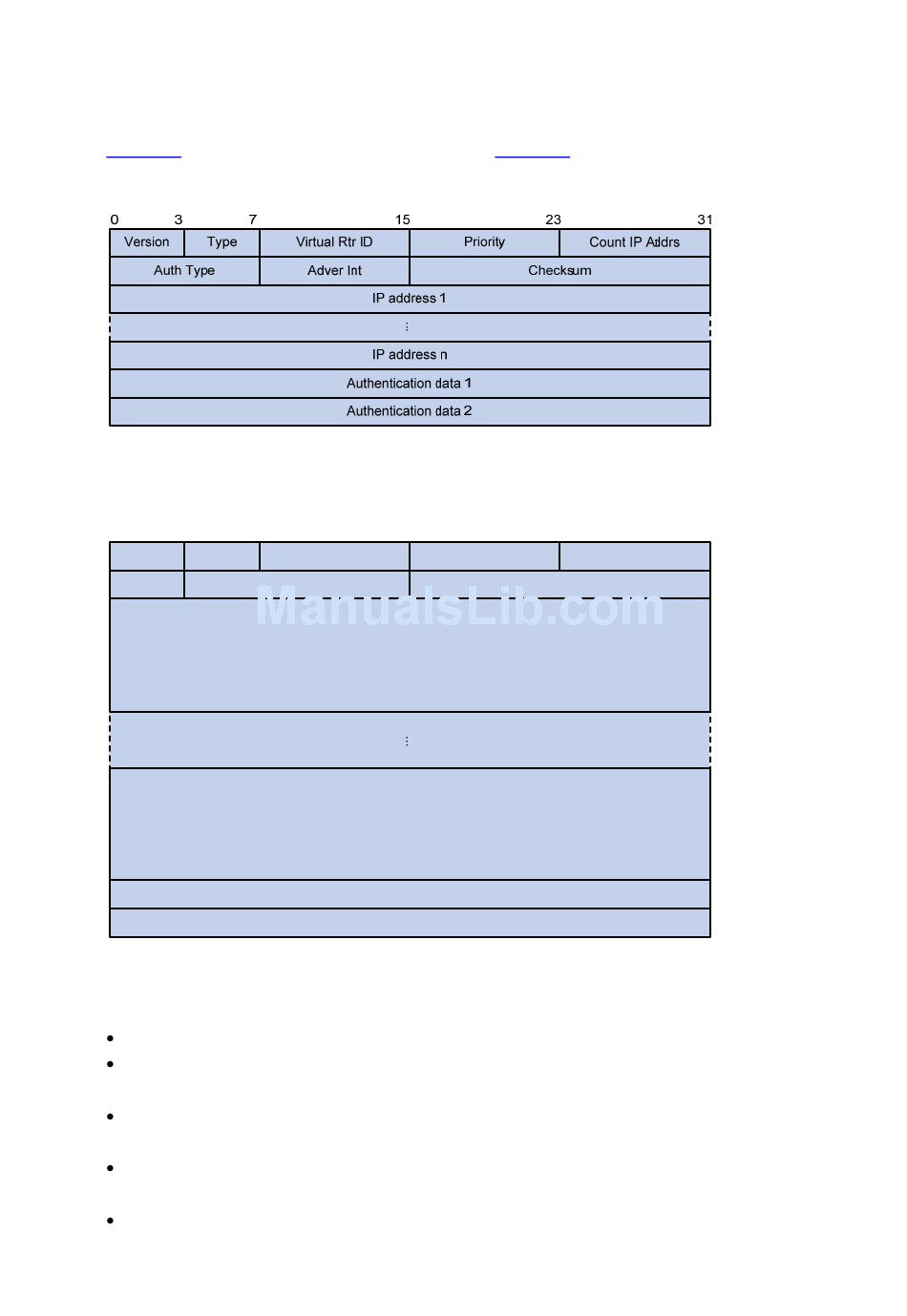

Figure 1-3 Format of a VRRPv2 packet
Figure 1-4 Format of a VRRPv3 packet
0 3
Version Type
Auth Type
A VRRP packet consists of the following fields:
Version: Version number of the protocol, 2 for VRRPv2 and 3 for VRRPv3.
Type: Type of the VRRPv2 or VRRPv3 packet. Only one VRRP packet type is present, that is,
VRRP advertisement, which is represented by 1.
Virtual Rtr ID (VRID): Serial number of the virtual router, that is, serial number of the VRRP group.
It ranges from 1 to 255.
Priority: Priority of the router in the VRRP group, in the range 0 to 255. A greater value represents
a higher priority.
Count IP Addrs/Count IPv6 Addrs: Number of virtual IPv4 or IPv6 addresses for the VRRP group. A
VRRP group can have multiple virtual IPv4 or IPv6 addresses.
7 15
Virtual Rtr ID
Adver Int
IPv6 address 1
IPv6 address n
Authentication data 1
Authentication data 2
Figure 1-4 shows the format of a VRRPv3 packet.
23
Priority Count IPv6 Addrs
Checksum
1-5
31
