Example for Configuring HoVPN

Network requirements
There are two levels of networks, the backbone and the MPLS VPN networks, as shown in
SPEs act as PEs to allow MPLS VPNs to access the backbone.
UPEs act as PEs of the MPLS VPNs to allow end users to access the VPNs.
Performance requirements for the UPEs are lower than those for the SPEs.
SPEs advertise routes permitted by the routing policies to UPEs, permitting CE 1 and CE 3 in VPN
1 to communicate with each other and forbidding CE 2 and CE 4 in VPN 2 to communicate with
each other.

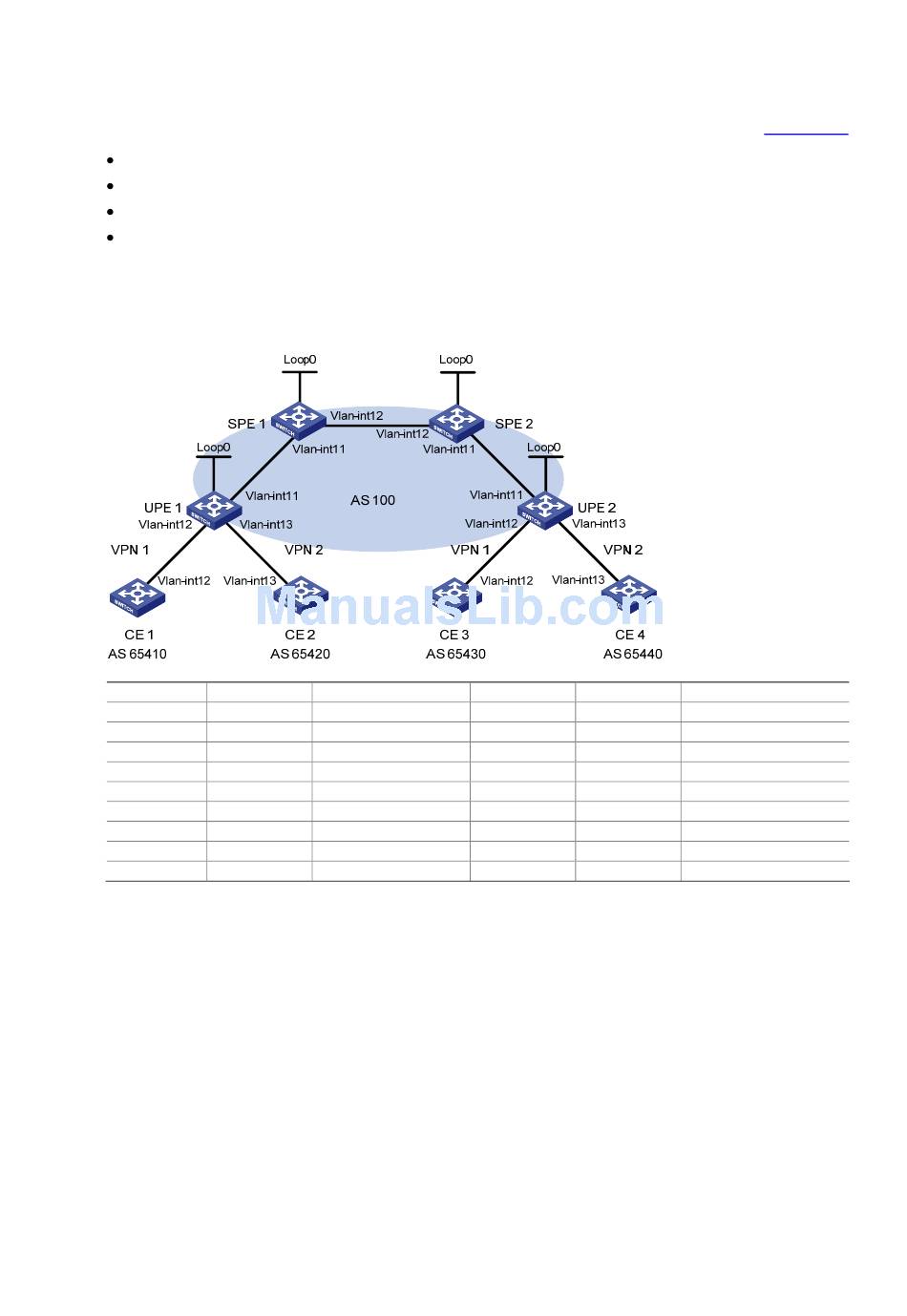

Figure 1-25 Configure HoVPN (on switches)
Device Interface
CE 1 Vlan-int12
CE 2 Vlan-int13
UPE 1 Loop0
Vlan-int11
Vlan-int12
Vlan-int13
SPE 1 Loop0
Vlan-int11
Vlan-int12
Configuration procedure
1) Configure UPE 1
# Configure MPLS basic capability and MPLS LDP to establish LDP LSPs.
<UPE1> system-view
[UPE1] interface loopback 0
[UPE1-LoopBack0] ip address 1.1.1.9 32
[UPE1-LoopBack0] quit
[UPE1] mpls lsr-id 1.1.1.9
[UPE1] mpls
[UPE1-mpls] quit
[UPE1] mpls ldp
[UPE1-mpls-ldp] quit
IP address Device
10.2.1.1/24 CE 3
10.4.1.1/24 CE 4
1.1.1.9/32 UPE 2
172.1.1.1/24
10.2.1.2/24
10.4.1.2/24
2.2.2.9/32 SPE 2
172.1.1.2/24
180.1.1.1/24
1-90
Interface IP address
Vlan-int12 10.1.1.1/24
Vlan-int13 10.3.1.1/24
Loop0 4.4.4.9/32
Vlan-int11 172.2.1.1/24
Vlan-int12 10.1.1.2/24
Vlan-int13 10.3.1.2/24
Loop0 3.3.3.9/32
Vlan-int11 172.2.1.2/24
Vlan-int12 180.1.1.2/24
Figure 1-25.
