[DeviceA-nqa-admin-test-tcp] destination port 9000
# Enable the saving of history records.
[DeviceA-nqa-admin-test-tcp] history-record enable
[DeviceA-nqa-admin-test-tcp] quit
# Enable TCP test.
[DeviceA] nqa schedule admin test start-time now lifetime forever
# Disable TCP test after the test begins for a period of time.
[DeviceA] undo nqa schedule admin test
# Display results of the last TCP test.
[DeviceA] display nqa result admin test
NQA entry(admin admin, tag test) test results:
Destination IP address: 10.2.2.2
Send operation times: 1
Min/Max/Average round trip time: 13/13/13
Square-Sum of round trip time: 169
Last succeeded probe time: 2007-11-22 10:27:25.1
Extended results:
Packet lost in test: 0%
Failures due to timeout: 0
Failures due to disconnect: 0
Failures due to no connection: 0
Failures due to sequence error: 0
Failures due to internal error: 0
Failures due to other errors: 0
Packet(s) arrived late: 0
# Display the history of TCP tests.
[DeviceA] display nqa history admin test
NQA entry(admin admin, tag test) history record(s):
Index
1

UDP Echo Test Configuration Example

Network requirements
Use the NQA UDP echo function to test the round trip time between Device A and Device B. The port
number is 8000.

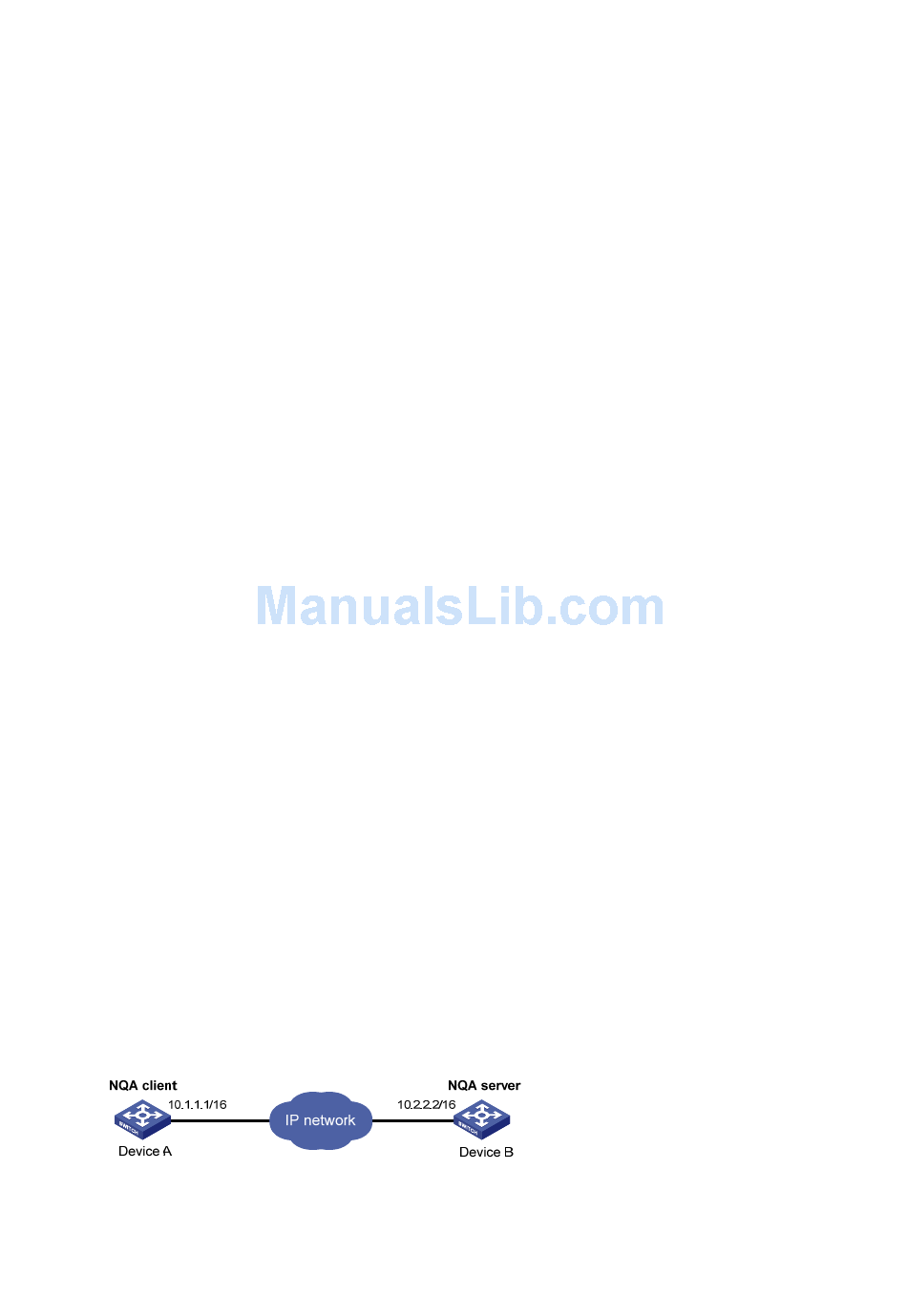

Figure 1-11 Network diagram for the UDP echo tests
Response Status
13 Succeeded
Receive response times: 1
Time
2007-11-22 10:27:25.1
