CR-LSP Backup Configuration Example

Network requirements
Set up an MPLS TE tunnel from Switch A to Switch C. Use CR-LSP hot backup for it.

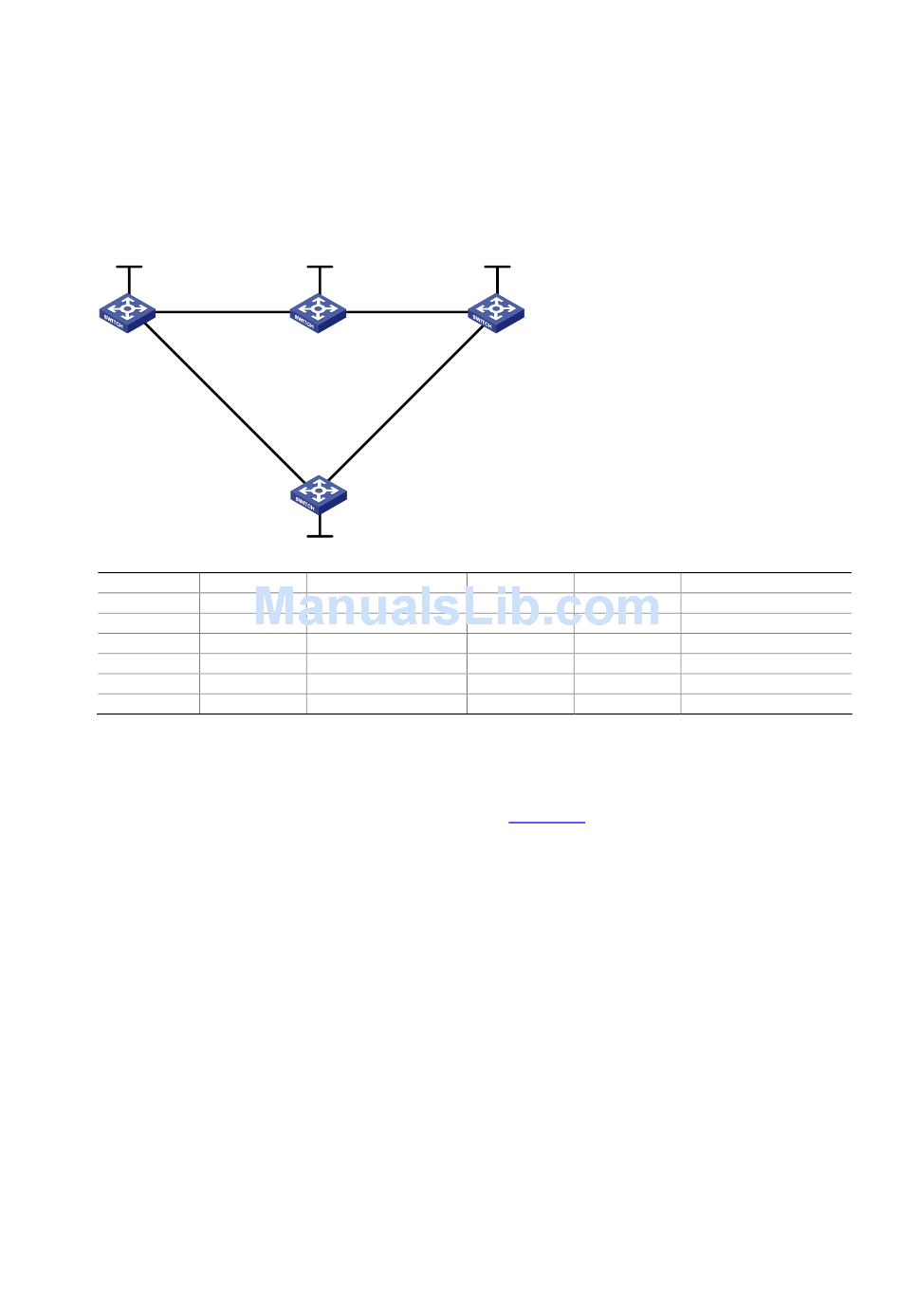

Figure 1-9 CR-LSP backup
Switch A
Loop0
Vlan-int1
Vlan-int4
Device Interface
Switch A Loop0
Vlan-int1
Vlan-int4
Switch B Loop0
Vlan-int1
Vlan-int2
Configuration procedure
1) Assign IP addresses and masks to interfaces (see
Omitted
2) Configure the IGP protocol
# Enable IS-IS to advertise host routes with LSR IDs as destinations on each node. (Omitted)
Perform the display ip routing-table command on each switch. You should see that all nodes learnt
the host routes of other nodes with LSR IDs as destinations.
3) Configure MPLS TE basic capabilities, and enable RSVP-TE and CSPF
# Configure Switch A.
<SwitchA> system-view
[SwitchA] mpls lsr-id 1.1.1.9
[SwitchA] mpls
[SwitchA-mpls] mpls te
[SwitchA-mpls] mpls rsvp-te
[SwitchA-mpls] mpls te cspf
[SwitchA-mpls] quit
[SwitchA] interface vlan-interface 1
Recovery Time: 300 Sec
Switch B
Loop0
Vlan-int1
Vlan-int2
Switch D
Vlan-int4 Vlan-int3
Loop0
IP address
1.1.1.9/32
10.1.1.1/24
30.1.1.1/24
2.2.2.9/32
10.1.1.2/24
20.1.1.1/24
Switch C
Loop0
Vlan-int2
Vlan-int3
Device Interface
Switch D Loop0
Vlan-int4
Vlan-int3
Switch C Loop0
Vlan-int2
Vlan-int3
Figure 1-9)
1-53
IP address
4.4.4.9/32
30.1.1.2/24
40.1.1.1/24
3.3.3.9/32
20.1.1.2/24
40.1.1.2/24
