SuperStack
plus 1-Port 1000BASE-T (3C16467) User Guide
DUA1646-7AAA02
I
NTRODUCTION
®

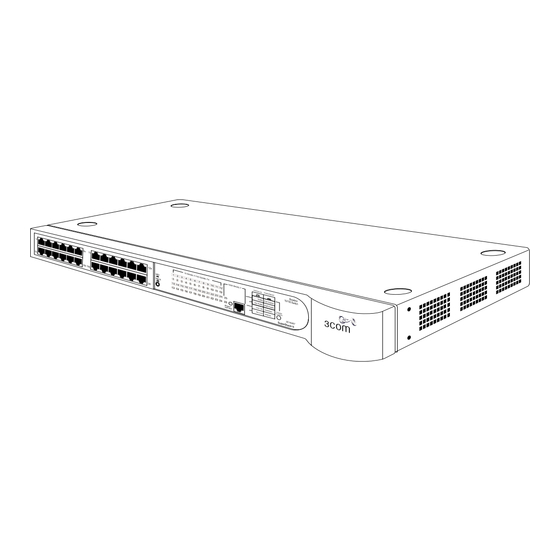

The SuperStack
3 Baseline 10/100 Switch 24 Port
10BASE-T/100BASE-TX plus 1-Port 1000BASE-T is a versatile,
easy-to-use unmanaged switch. It is ideal for users who want the
high-speed performance of 10/100 switching with the added
functionality of a 1000BASE-T link but do not need sophisticated
management capabilities. The Baseline 10/100 Switch is shipped
ready for use. No configuration is necessary.
The Baseline 10/100 Switch 24 Port 10BASE-T/100BASE-TX plus
1-Port 1000BASE-T has 24 shielded RJ-45, 10/100Mbps
auto-negotiating ports and one shielded RJ-45, 1000BASE-T port
on the front panel. Each 10/100Mbps port automatically
determines the speed and duplex mode of the connected
equipment and provides a suitable switched connection. The
1000BASE-T port is a fixed speed port that operates in full duplex
mode.
The Baseline 10/100 Switch is suited for office use where it can
be free standing, or rack mounted (in a wiring closet or
equipment room).
The Baseline 10/100 Switch comes with:
T
One power cord
T
Four self-adhesive rubber pads
T
One mounting kit
The Switch can be powered either from the AC mains supply, or
through an optional 3Com SuperStack 3 Advanced Redundant
Power System (3C16071B). Contact your supplier for details.
3 Baseline 10/100 Switch 24-Port 10BASE-T/100BASE-TX
The Baseline 10/100 Switch 24 Port 10BASE-T/100BASE-TX plus
1-Port 1000BASE-T provides high performance switched
connections to 10Mbps and 100Mbps hubs, servers and
workstations that need a dedicated switched link and a switched
fixed speed 1000 Mbps port that can connect to other
1000BASE-T ports or servers/workstations.
1
Advertisement
Table of Contents
Related Manuals for 3Com SuperStack 3 3C16467
Summary of Contents for 3Com SuperStack 3 3C16467
- Page 1 Four self-adhesive rubber pads One mounting kit The Switch can be powered either from the AC mains supply, or through an optional 3Com SuperStack 3 Advanced Redundant Power System (3C16071B). Contact your supplier for details. The Baseline 10/100 Switch 24 Port 10BASE-T/100BASE-TX plus...
-
Page 2: Front Panel
Connecting to another Switch or Hub If you connect two Baseline 10/100 Switch 24 Port 10BASE-T/100BASE-TX plus 1-Port 1000BASE-T units together, 3Com recommends that you use the 1000BASE-T ports on both units for the link. You must use Category 5 cable when connecting the units. -
Page 3: Rear Panel Connections
Water or moisture cannot enter the case of the unit. Air flow around the unit and through the vents in the side of the case is not restricted (3Com recommend that you provide a minimum of 25mm (1in.) clearance). The air is as free from dust as possible. -
Page 4: Problem Solving
Power Supply Power problems can be the cause of serious failures and down- time in your network. Ensure that the power input to your system is clean and free from sags and surges to avoid unforeseen net- work outages. We recommend that you install power condition- ing, especially in areas prone to black outs, power dips and electrical storms. -
Page 5: Safety Information
AFETY NFORMATION Please read the following safety information carefully before installing the Baseline 10/100 Switch 24 Port 10BASE-T/100BASE-TX plus 1-Port 1000BASE-T. WARNING: Installation and removal of the unit must be carried out by qualified personnel only. If installing the Switch unit in a stack with SuperStack 3 Hub units, the Baseline 10/100 Switch 24 Port 10BASE-T/100BASE-TX plus 1-Port 1000BASE-T unit must be installed below the narrower Hub units. -
Page 6: Technical Information
3Com. The repaired or replaced item will be shipped to Customer, at 3Com's expense, not later than thirty (30) days after 3Com receives the defective product, and 3Com will retain risk of loss or damage until the item is delivered to Customer. -
Page 7: Regulatory Notices
3Com's response to a request for telephone technical support will be in the form of a return call from a 3Com representative by close of business the following business day, defined as 9 a.m. to 5 p.m., local time, Monday through Friday, excluding local holidays. - Page 8 3Com Technologies. 3Com Technologies reserves the right to revise this documentation and to make changes in content from time to time without obligation on the part of 3Com Technologies to provide notification of such revision or change. 3Com Technologies provides this documentation without warranty of any kind, either implied or expressed, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.
