Goodrive300-01A series VFD for air compressor
B.1 Touch screen
In order to drive and manage the air compressor in an optimized manner, users can choose our
VT6070E touch screen to be used in conjunction with Goodrive300-01A product. The touch screen
comes with 2.5m RS485 communication cable (24V power cable included) and emergency-stop
signal wire, as shown below.
Note:
1. The RS485 communication cable included in the standard configuration of the touch screen is
non-shielded cable; shielded cables should be purchased separately.
2. See User Manual for VT6070E series HMI for details on how to use the touch screen.
B.2 Filter
Filter model selections for GD300-01A are shown below.
VFD model
GD300-01A-7R5G-4
GD300-01A-7R5G-4-CT
GD300-01A-011G-4
GD300-01A-011G-4-CT
GD300-01A-015G-4
GD300-01A-015G-4-CT
GD300-01A-018G-4
GD300-01A-022G-4
GD300-01A-030G-4
GD300-01A-037G-4
GD300-01A-045G-4

Appendix B Optional accessories

GD300-01A control board
Emergency-stop
signal wiring

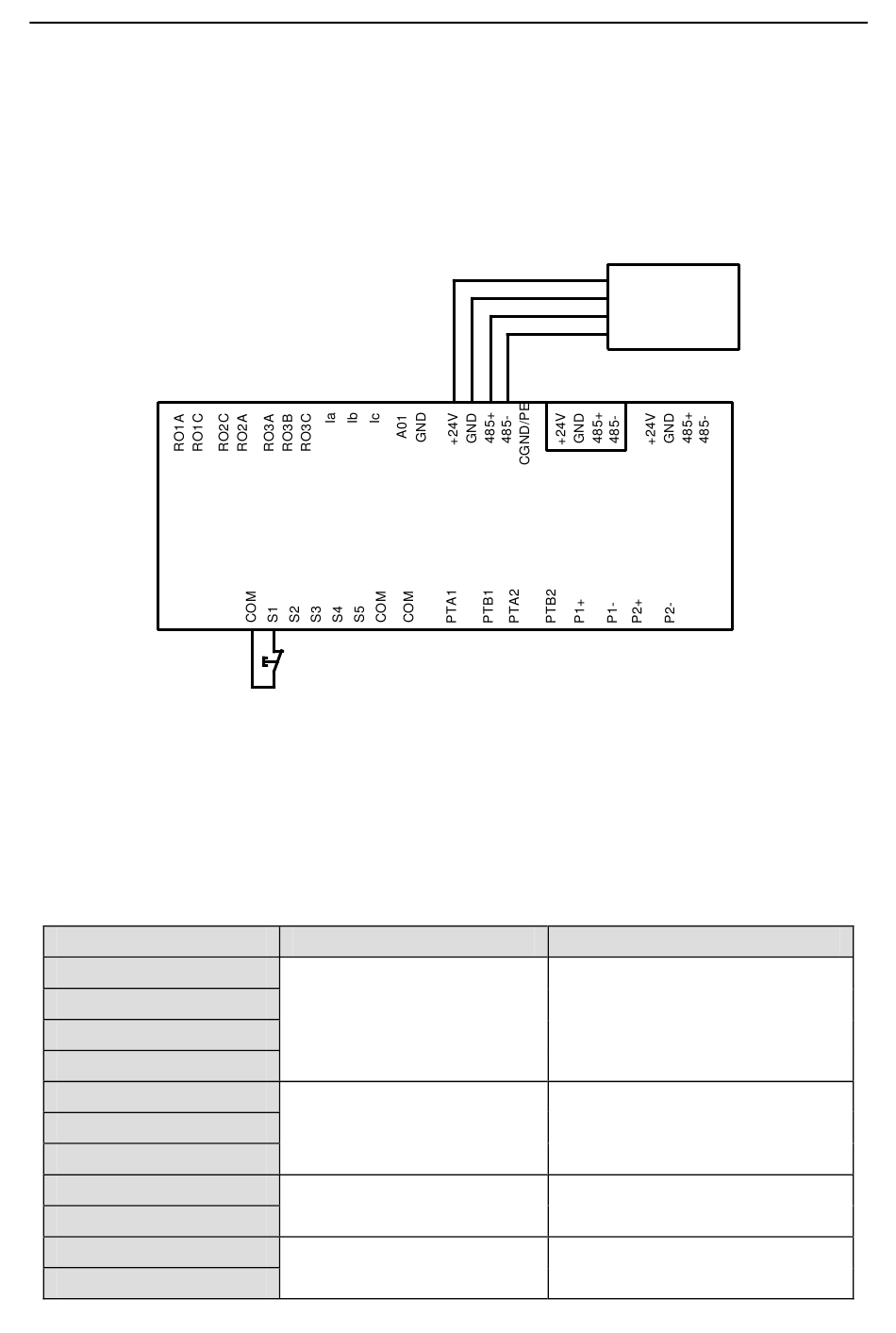

Figure B-1 Wiring of touch screen cables
Input filter
FLT-P04032L-B
FLT-P04045L-B
FLT-P04065L-B
FLT-P04100L-B
RS485 communication line
CN10
-80-
Appendix B
HMI
Output filter
FLT-L04032L-B
FLT-L04045L-B
FLT-L04065L-B
FLT-L04100L-B
