Goodrive3000 series medium voltage inverters
4.2.2 Displayed state of running parameters
4.2.3 Displayed state of faults
4.2.4 Keypad setting and checking
Press SHIFT key and DOWN key for 3 seconds when power on. The keypad will enter the interface of
selection modes in the menu as follows:
1. Hardware test: test the buttons, display and whether the LED functions are normal or not.
2. Flash date program: be used when FLASH configuration table is updated.
3. Language select: can select Chinese and English.
4. Keypad SW ver: check MCU and Flash software version.
5. Converter Type Select: option 1: GD3000, other: reserved.
Goodrive3000 series Chinese mode is selected by default.
4.2.5 Displayed state of function codes editing
In the state of stopping, running or fault, press PRG/ESC
password, see P07.00). Press DATA/ENT into the displayed state of function parameter. On this state,
you can press DATA/ENT to save the parameters or press PRG/ESC to retreat.

4.3 Keypad operation

Operate the inverter via keypad.
The inverter has three levels menu, which are:

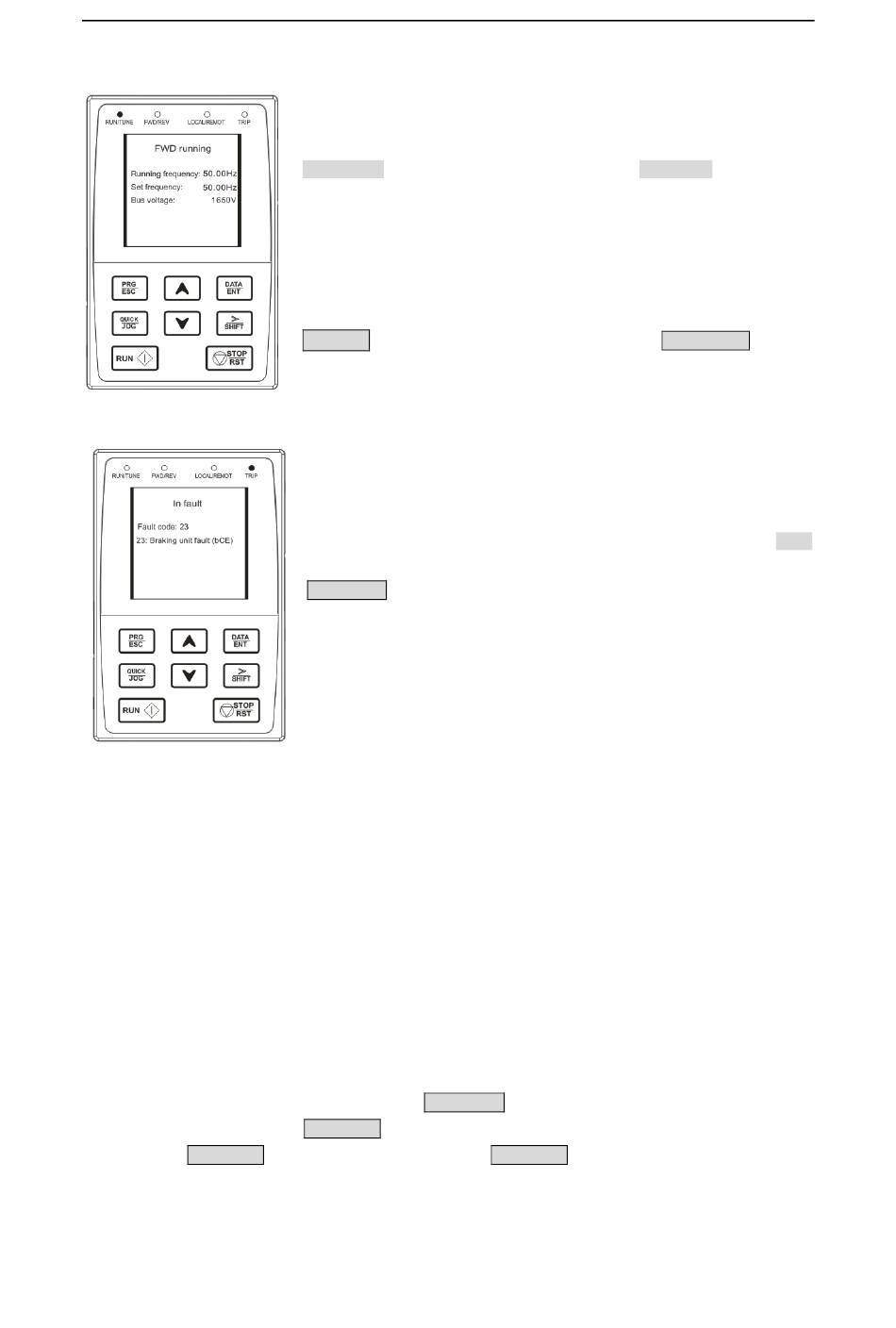

After the inverter receives valid running commands, the inverter will enter
into the running state and the keypad will display the running parameters.
RUN/TUNE LED on the keypad is on, while the FWD/REV is determined
by the current running direction which is shown in figure.
In the running state, various kinds of parameters can be displayed. Select
the parameters to be displayed or not by the binary bit according to the
displayed parameter of stopping state. See the instructions for the
detailed definition of each bit in Chapter 5 P07.05 and Chapter 6 P07.05
and P07.06.
》/SHIFT can shift the parameters from left to right, QUICK/JOG can shift
the parameters from right to left.
If the inverter detects the fault signal, it will enter into the fault pre-alarm
displaying state. The keypad will display the fault information. The TRIP
LED on the keypad is on, and the fault reset can be operated by the
STOP/RST on the keypad, control terminals or communication
commands.
If the fault continues, the keypad will keep displaying the fault
information.
-17-
to enter into the editing state (if there is a
