04H. In the table above, its name is operation failed and its meaning is that the parameter setting in
parameter writing is invalid.
8.4.7 Example of writing and reading
Refer to 8.4.1 and 8.4.2 for the command format.
8.4.7.1 Example of reading command 03H

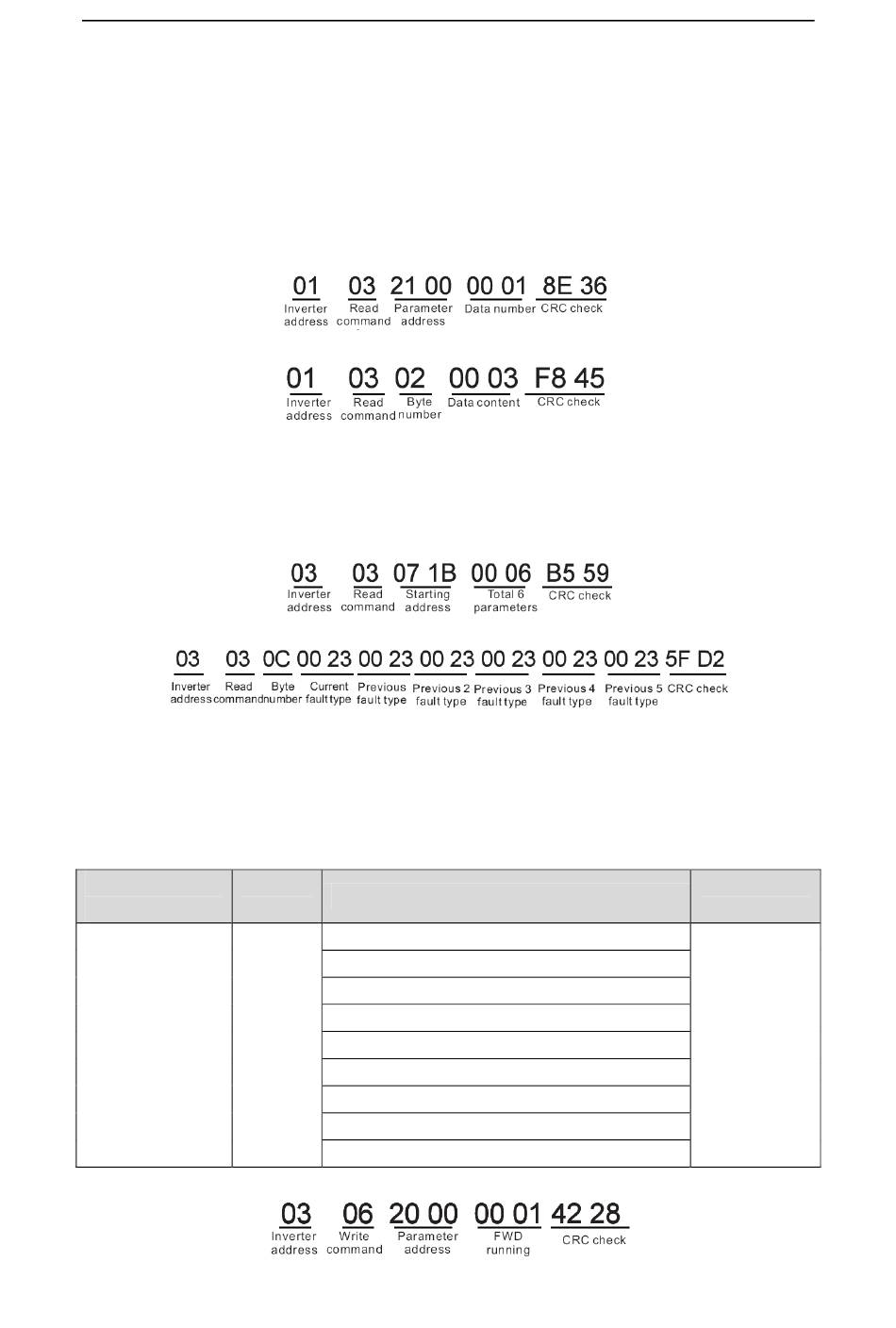

Example 1: Read the state word 1 of the inverter with the address of 01H (refer to table 1). From the table
1, the parameter address of the state word 1 of the inverter is 2100H.
The command sent to the inverter:
If the response message is as below:
The data content is 0003H. From the table 1, the inverter stops.
Example 2: Watch "the current fault type" to "the previous 5 times fault type" of the inverter through
commands, the corresponding function code is P07.27~P07.32 and corresponding parameter address is
071BH~0720H (there are 6 from 071BH).
The command sent to the inverter:
If the response message is as below:
See from the returned data, all fault types are 0023H (decimal 35) with the meaning of maladjustment
(STo).
8.4.7.2 Example of writing command 06H
Example 1: Make the inverter with the address of 03H to run forward. See Parameter list of other function
codes, the address of "communication control command" is 2000H and forward running is 0001. See the
table below.
Function Address
instruction definition
Communication
2000H
control command
The command sent by the master:
Data meaning instruction
0001H:forward running
0002H:reverse running
0003H:forward jogging
0004H:reverse jogging
0005H:stop
0006H:coast to stop (emergency stop)
0007H:fault reset
0008H:jogging stop
0009H: pre-excitation
