Goodrive3000 series medium voltage inverters

4.1 Keypad

LCD keypad is standard for Goodrive3000 series inverters.
Programming key
Quick key
Run key
4.1.1 Description of key functions
Key
Name
symbol
Programming
key
Enter key
UP key
DOWN key
SHIFT key
RUN key
STOP/RESET
key
Quick key

Chapter 4 HMI

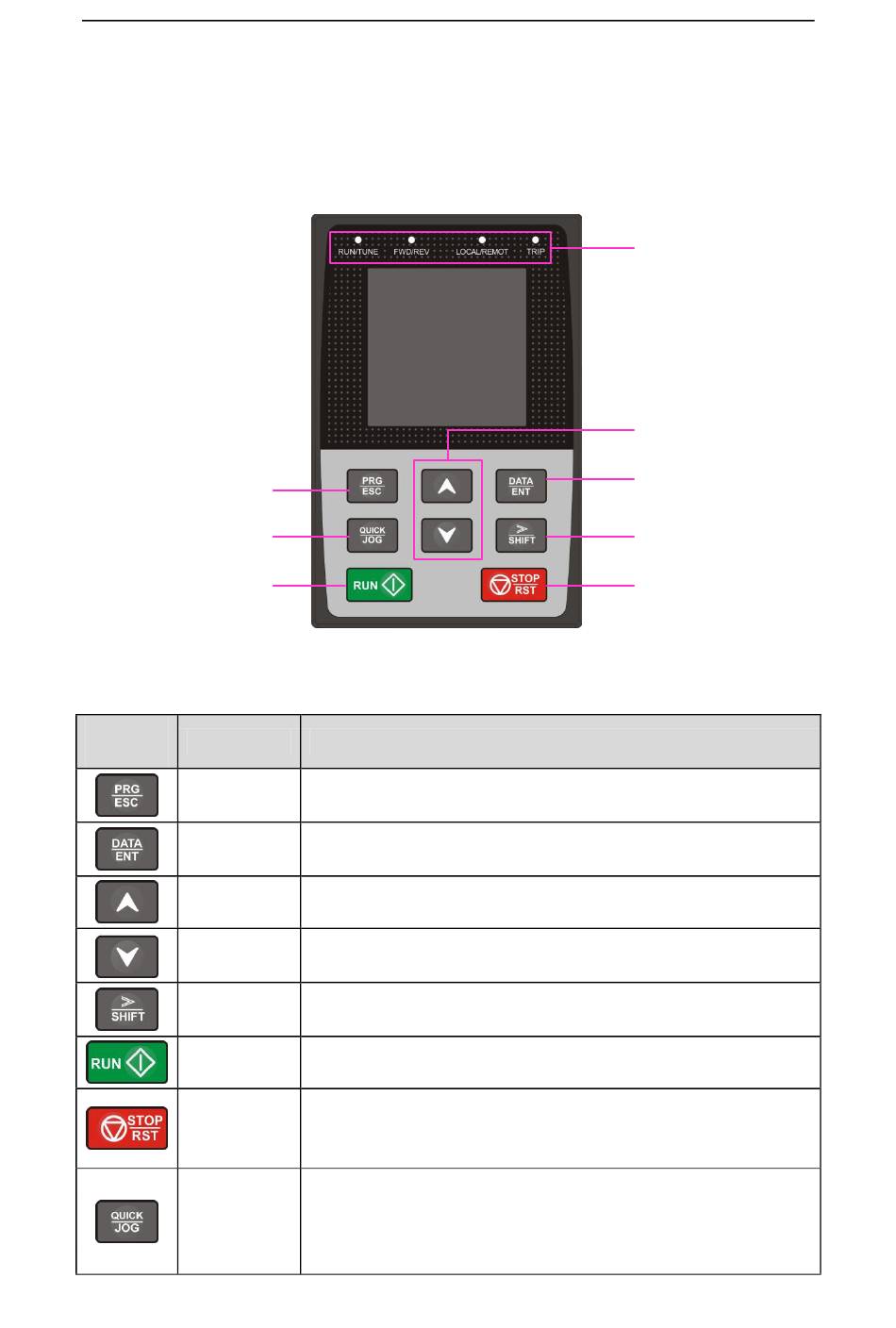

Figure 4-1 Keypad
Table 4-1 Key functions
Enter or escape from the first level menu and remove the parameter
quickly
Enter the menu step-by-step
Confirm parameters
Increase data or function code progressively
Decrease data or function code progressively
Select the displaying parameter circularly in stopping and running mode.
Select the parameter modifying digit during the parameter modification
This key is used to operate on the inverter in key operation mode
This key is used to stop in running state and it is limited by function code
P07.04.
This key is used to reset all control modes in the fault alarm state
The function of this key is confirmed by function code P07.02.
0: Jogging (only apply to keypad control)
1: Shift between forward rotations and reverse rotations (only apply to
keypad control)
-15-
State LED
UP key/
DOWN key
Entry key
Right-shift key
Stop/Reset key
Function description
HMI
