Goodrive3000 series medium voltage inverters
DC braking time. If the set DC braking time is 0, the DC braking is invalid.
The higher the DC braking current, the bigger the braking power. The DC braking current before start-up
refers to the rated current percentage of the inverter.
Function
Name
code

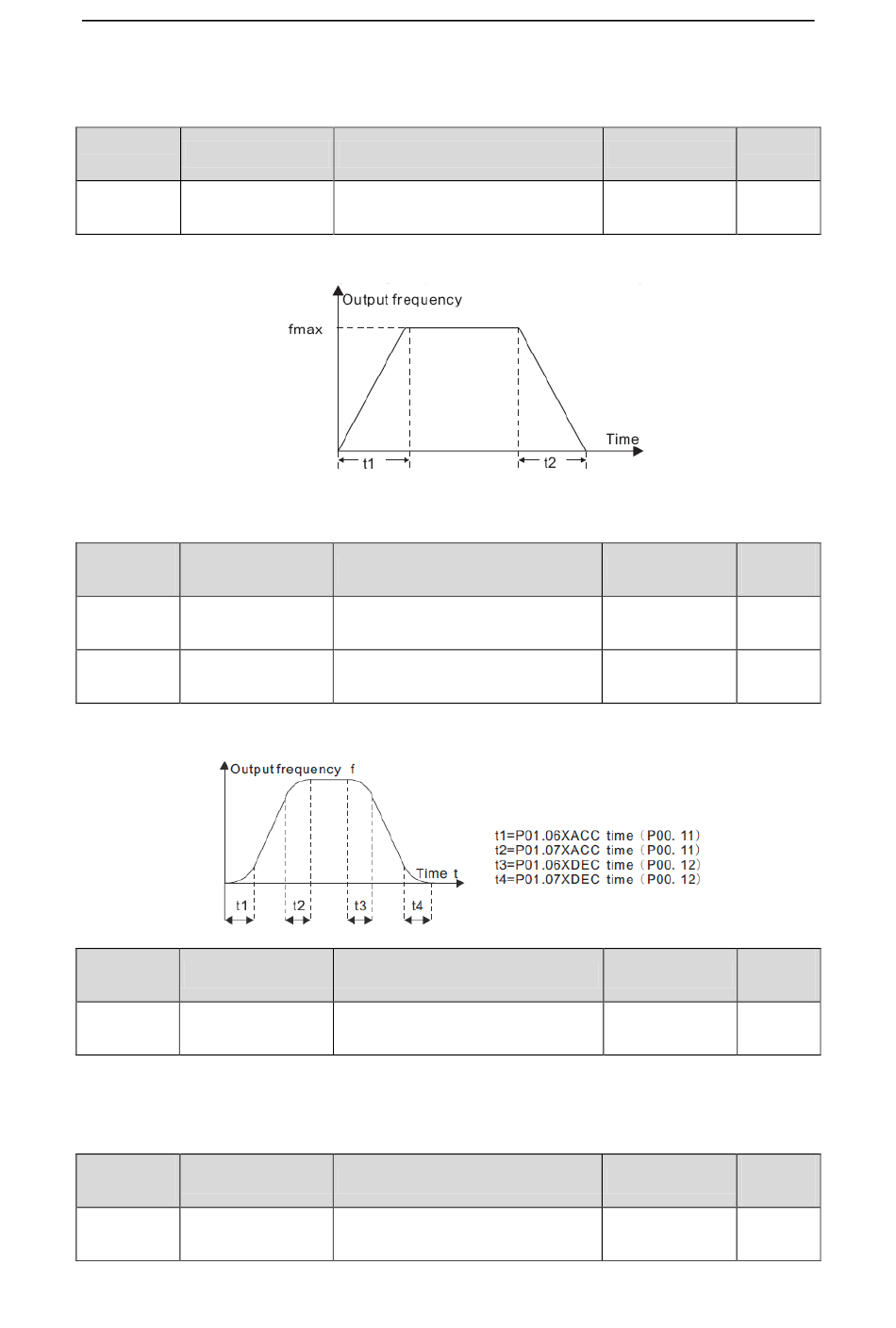

P01.05 ACC/DEC type
The changing mode of the frequency during start-up and running;
0: Linear type: the output frequency increases or decreases linearly.
1: S curve type: the output frequency increases or decreases in S curve.
The S curve is generally used in cases requiring smooth start-up and stop such as elevators and
conveyors.
Function
Name
code
S curve beginning
P01.06
proportion
S curve end
P01.07
proportion
The curvature of the S curve is determined by accelerating range, ACC/DEC time, beginning time and
end time.
Function
Name
code
P01.08 Stop mode
0: Decelerate to stop: after the stop command becomes valid, the inverter decelerates to decrease output
frequency during the set time. When the frequency decreases to 0Hz, the inverter will stop.
1: Coast to stop: after the stop command becomes valid, the inverter immediately ceases the output. The
load coasts to stop at the mechanical inertia.
Function
Name
code
Starting frequency
P01.09
of DC braking
Detailed instruction of parameters
0: Linear type
1: S curve type
Detailed instruction of parameters
0.0~50.0% (ACC/DEC time)
0.0~50.0% (ACC/DEC time)
Detailed instruction of parameters
0: Decelerate to stop
1: Coast to stop
Detailed instruction of parameters
0.00~P00.03 (Max. frequency)
-69-
Goodrive3000 series converter
Default
Setting range
value
0~1
Default
Setting range
value
0.0~50.0 30.0%
0.0~50.0 30.0%
Default
Setting range
value
0~1
Default
Setting range
value
0.00~P00.03 0.00Hz
0
0
