Goodrive3000 series medium voltage inverters
Key
Name
symbol
+
Combination
4.1.2 Description of indicators
Indicator symbol
RUN/TUNE
Forward/Reverse
FWD/REV
rotation LED
LOCAL/REMOT Operation LED
TRIP

4.2 Keypad displaying

The keypad displaying state is divided into stopping state parameter, running state parameter and fault
alarm state and so on.
4.2.1 Displayed state of stopping parameter
When RUN key and STOP/RST key are pressed down simultaneously,
the inverter will coast to stop
Table 4-2 Indicators
Name
LED off means that the inverter is in the stopping state; LED
State LED blinking means the inverter is in the parameter autotune state;
LED on means the inverter is in the running state.
LED off means the inverter is in the forward rotation state; LED
on means the inverter is in the reverse rotation state
LED for keypad operation, terminals operation and remote
communication control
LED off means that the inverter is in the keypad operation
state; LED blinking means the inverter is in the terminals
operation state; LED on means the inverter is in the remote
communication control state.
LED on when the inverter is in the fault state; LED off in normal
Fault LED
state; LED blinking means the inverter is in the pre-alarm state.

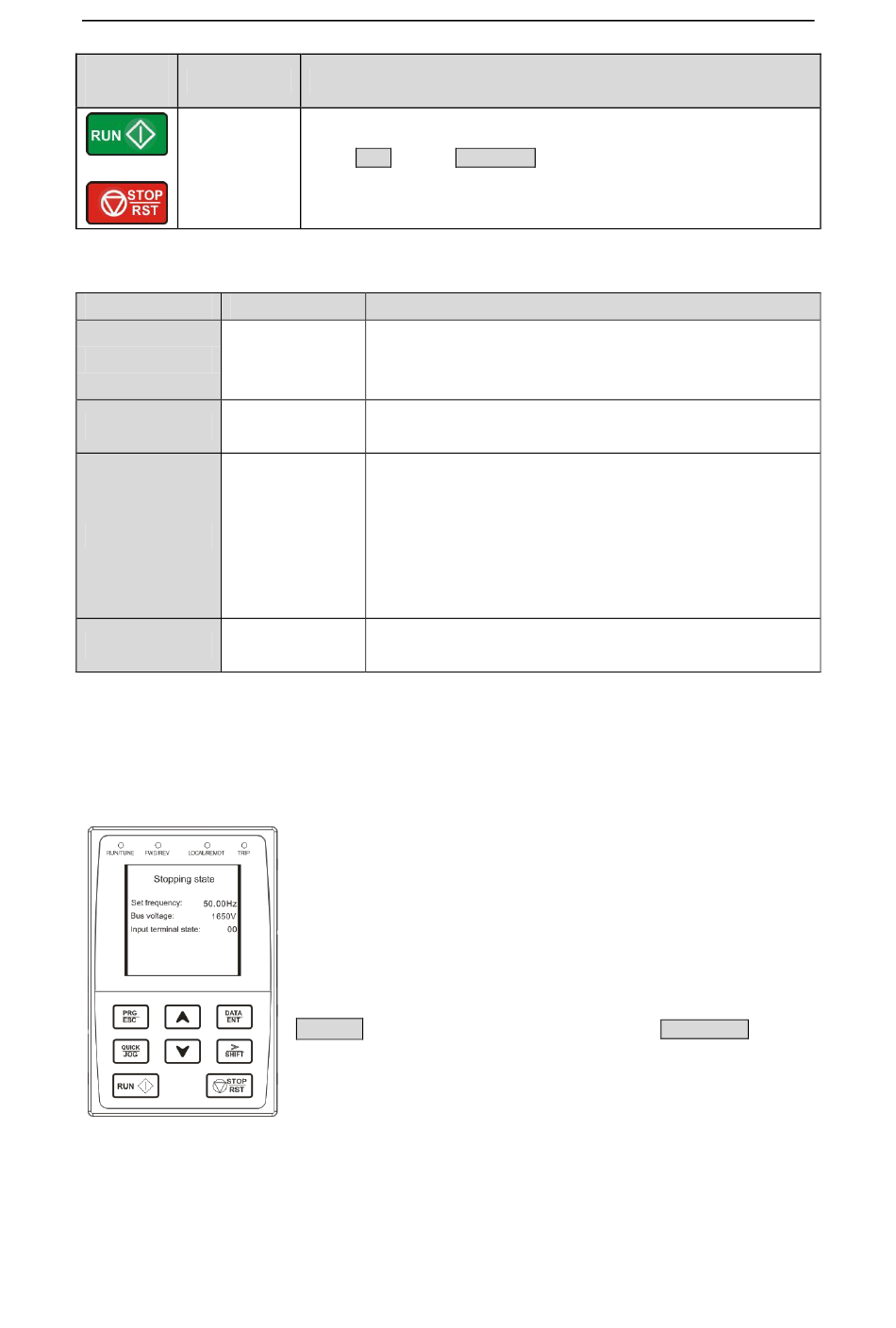

When the inverter is in the stopping state, the keypad will display stopping
parameters which is shown in figure.
In the stopping state, various kinds of parameters can be displayed. Select
the parameters to be displayed or not by the binary bit according to the
displayed parameter of stopping state. See the instructions for the detailed
definition of each bit in Chapter 5 P07.05 and Chapter 6 P07.07.
》/SHIFT can shift the parameters from left to right, QUICK/JOG can shift
the parameters from right to left.
Function description
Description
