Goodrive3000 series medium voltage inverters Peripheral options and parts

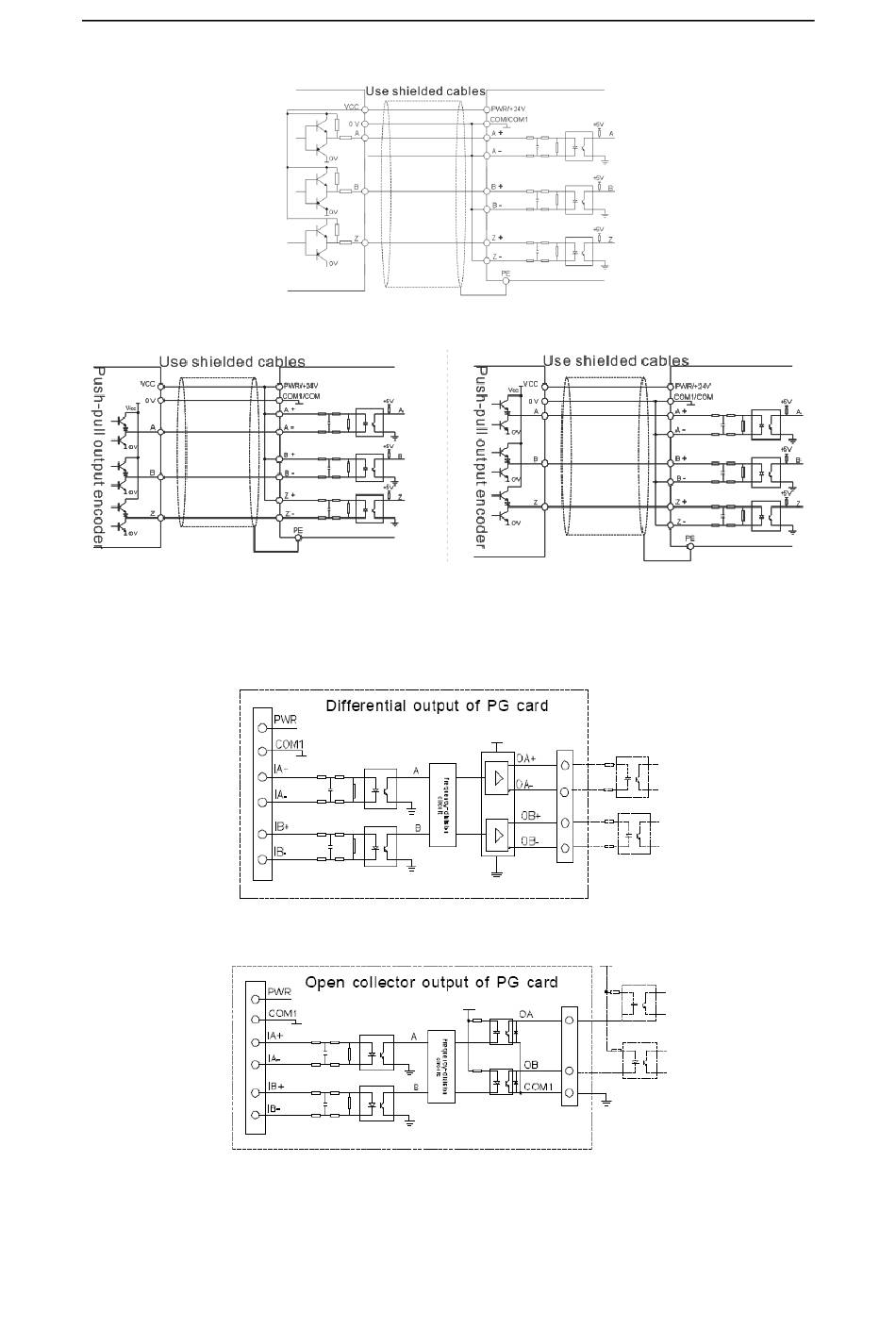

③Wiring diagram of complementary output encoder
Fig 9-7 Wiring diagram of complementary output encoder
④Wiring diagram of push-pull output encoder
Fig 9-8 Wiring diagram of push-pull output encoder
Note: It is necessary to connect Z signal if spindle positioning inverter is supplied and the
connection is the same as that of A and B signal.
9.1.2.6 Output application connection
①Wiring diagram of frequency division differential output of PG card
Fig 9-9 Wiring diagram of frequency division differential output of PG card
②Wiring diagram of frequency division open collector output of PG card
Fig 9-10 Wiring diagram of frequency division open collector output of PG card
Note: PWR at J1 and J2 are short-connected with COA and COB in open collector output.
