Goodrive3000 series medium voltage inverters
shift the channels.
Function
Name
code
FDT1 electrical level
P08.32
detection value
FDT1 retention
P08.33
detection value
FDT2 electrical level
P08.34
detection value
FDT2 retention
P08.35
detection value

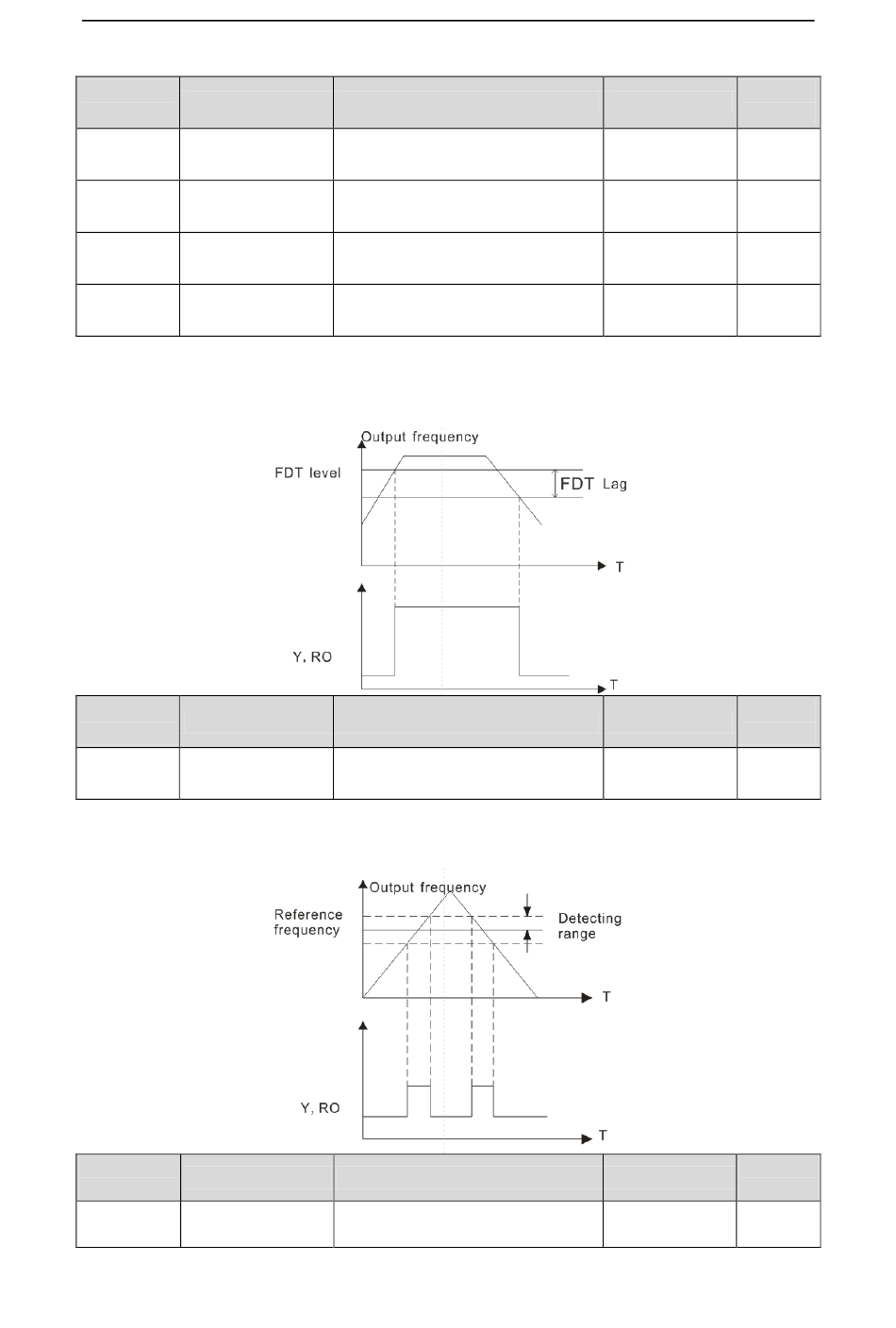

When the output frequency exceeds the corresponding frequency of FDT electrical level, the
multi-function digital output terminal will output the signal of "frequency level detection FDT". The signal is
invalid until the output frequency decreases to a value lower than (FDT electrical level-FDT retention
detection value) the corresponding frequency. Below is the waveform diagram:
Function
Name
code
Frequency arrival
P08.36
detection value
When the output frequency is among the below or above range of the set frequency, the multi-function
digital output terminal will output the signal of "frequency arrival". See the diagram below for detailed
information:
Function
Name
code
Energy braking
P08.37
enable
Enable energy braking.
Detailed instruction of parameters
0.00~P00.03 (Max. frequency)
0.0~100.0% (FDT1 electrical level)
0.00~P00.03 (Max. frequency)
0.0~100.0% (FDT2 electrical level)
Detailed instruction of parameters
0.0~P00.03 (Max. frequency)
Detailed instruction of parameters
0: Disabled
1: Enabled
-112-
Goodrive3000 series converter
Default
Setting range
value
0.00~P00.03 50.00Hz
0.0~100.0 5.0%
0.00~P00.03 50.00Hz
0.0~100.0 5.0%
Default
Setting range
value
0.0~P00.03 0.00Hz
Default
Setting range
value
0~1 0
