Function
Name
code
Motor 1 V/F
P04.03
frequency point 1
Motor 1 V/F
P04.04
voltage point 1
Motor 1 V/F
P04.05
frequency point 2
Motor 1 V/F
P04.06
voltage point 2
Motor 1 V/F
P04.07
frequency point 3
Motor 1 V/F
P04.08
voltage point 3

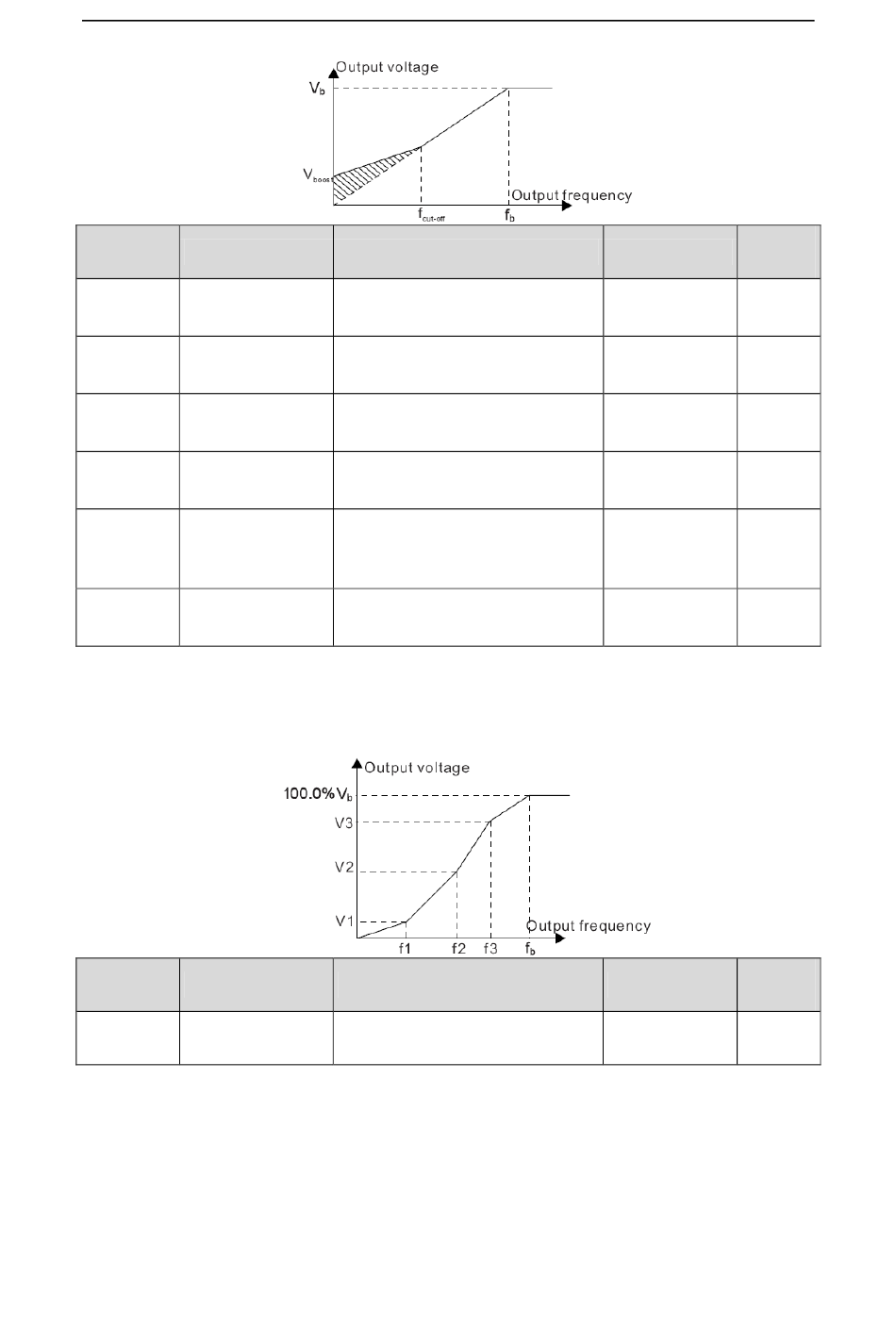

When P04.00=1 (multi-dot V/F curve), set the V/F curve by P04.03~P04.08.
The V/F curve is usually set according to the load feature of the motor.
Note: V1<V2<V3, f1< f2<
inverter overcurrent speed loss or overcurrrent protection.
Function
Name
code
Motor 1 V/F slip
P04.09
compensation gain
This function code is used to compensate the change of the rotating speed caused by the change of load
at V/F control to improve mechanical rigidity of the motor. The rated slip frequency of the motor should be
calculated as follows:
△
f=f -n*p/60
b
Of which, f is motor rated frequency, corresponding to the function code P02.02; n is motor rated speed,
b
corresponding to the function code P02.03; p is motor pole pair, 100.0% corresponding to the rated slip
△
frequency f.
Detailed instruction of parameters
0.00Hz~P04.05
0.0%~110.0% (Rated voltage of
motor 1)
P04.03~ P04.07
0.0%~110.0% (Rated voltage of
motor 1)
P04.05~P02.02 (Rated frequency of
motor 1)/ P04.05~P02.16 (Rated
frequency of motor 1)
0.0%~110.0% (Rated voltage of
motor 1)
f3. Too high low frequency voltage may cause motor overheat or burnout,
Detailed instruction of parameters
0.0~200.0%
-82-
Goodrive3000 series converter
Default
Setting range
value
0.00~P04.05 0.00Hz
0.0~110.0 00.0%
P04.03~ P04.07 00.00Hz
0.0~110.0 00.0%
P04.05~P02.02 00.00Hz
0.0~110.0 00.0%
Default
Setting range
value
0.0~200.0 100.0%
