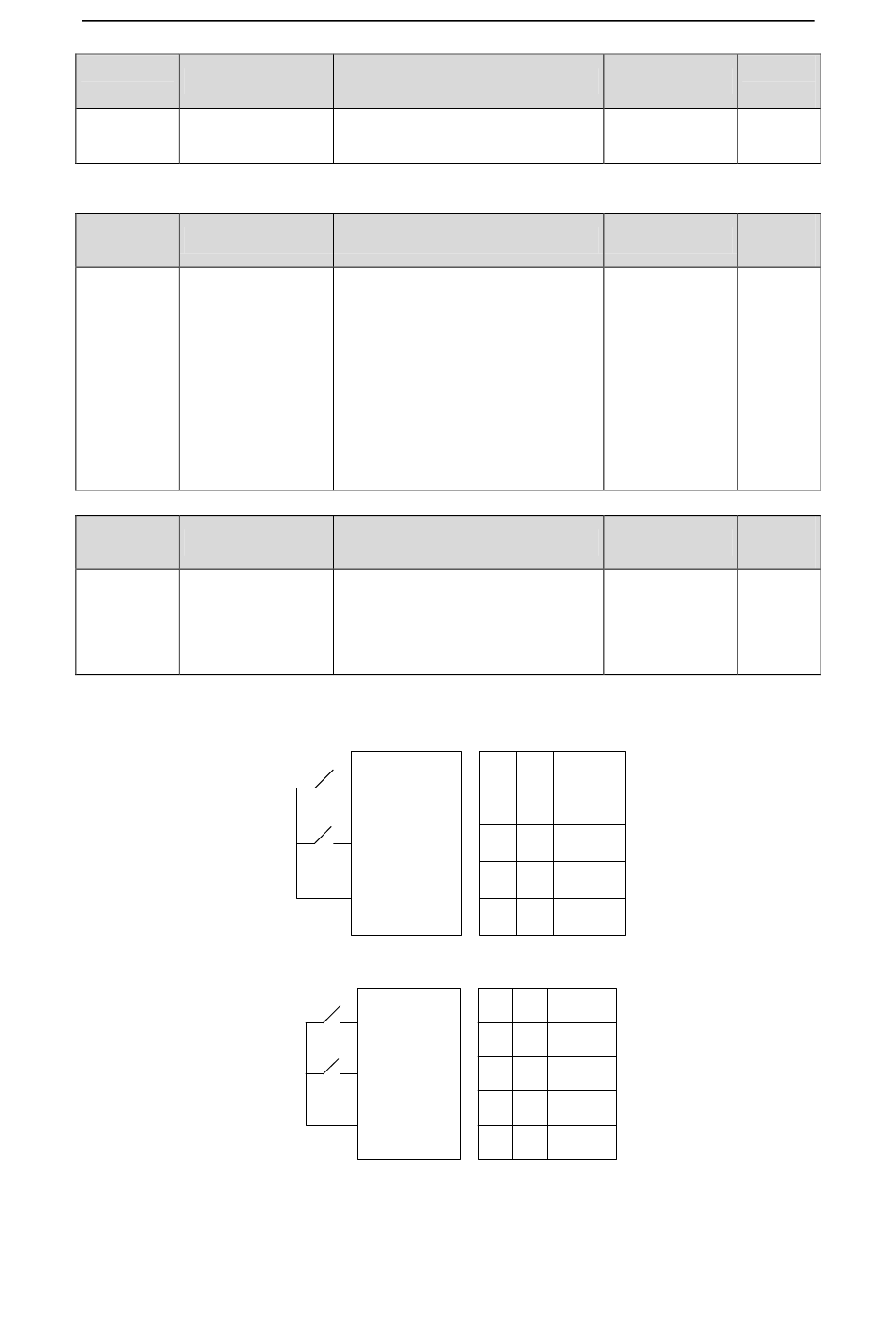

INVT Goodrive3000 GD3000-01-055G-12 Operation Manual page 91

Goodrive3000 series medium voltage inverters
Function
Name
code
P05.11 ON-OFF filter time
Set the sample filter time of S1~S8 terminals. If the interference is strong, increase the parameter to
avoid the incorrect operation.
Function
Name
code
Virtual terminal
P05.12
setting
Enable the input function of virtual terminals at communication modes.
Function
Name
code
Terminal control
P05.13
running mode
Set the running mode of the terminal control.
0: 2-wire control 1, comply the enable with the direction. This mode is widely used. It determines the
rotation direction of the motor by defined FWD and REV terminal commands.
1: 2-wire control 2: Separate the enable from the direction. FWD defined by this mode is the enabling one.
The direction depends on the state of the defined REV.
2: 3-wire control 1: SIn is the enabling terminal defined by the mode, the running command is caused by
FWD and the direction is controlled by REV. When the inverter runs, SIn needs to be in the closed state.
FWD generates a rising-edge signal. When the inverter starts running, the state of REV decides the
direction. When the inverter stops, SIn needs be disconnected.
Detailed instruction of parameters
0.000~1.000s
Detailed instruction of parameters
0: Virtual terminals are invalid.
1: MODBUS communication virtual
terminals are valid.
2: PROFIBUS/CANopen
communication virtual terminals are
valid.
3: Ethernet communication virtual
terminals are valid.
4: Reserved
Detailed instruction of parameters
0: 2-wire control 1
1: 2-wire control 2
2: 3-wire control 1
3: 3-wire control 2
FWD
FWD
K1
OFF
REV
K2
OFF
COM
FWD REV
FWD
K1
OFF
REV
K2
OFF
COM
-90-
Goodrive3000 series converter
Setting range
0.000~1.000
Setting range
Setting range
Running
REV
command
OFF Stop
FWD
ON OFF
running
ON REV running
ON ON Hold
Running
command
OFF Stop
FWD
ON OFF
running
ON
Stop
ON ON
REV running
Default
value
0.010s
Default
value
0~4 0
Default
value
0~3 0
