Goodrive3000 series medium voltage inverters HMI
1. Group number of function code (first-level menu)
2. Tab of function code (second-level menu)
3. Set value of function code (third-level menu)
Remarks: Press the PRG/ESC or the DATA/ENT can return to the second-level menu from the third-level
menu. The difference is: pressing DATA/ENT will save the set parameters into the control panel, and then
return to the second-level menu with shifting to the next function code automatically; while pressing
PRG/ESC will directly return to the second-level menu without saving the parameters, and keep staying
at the current function code.

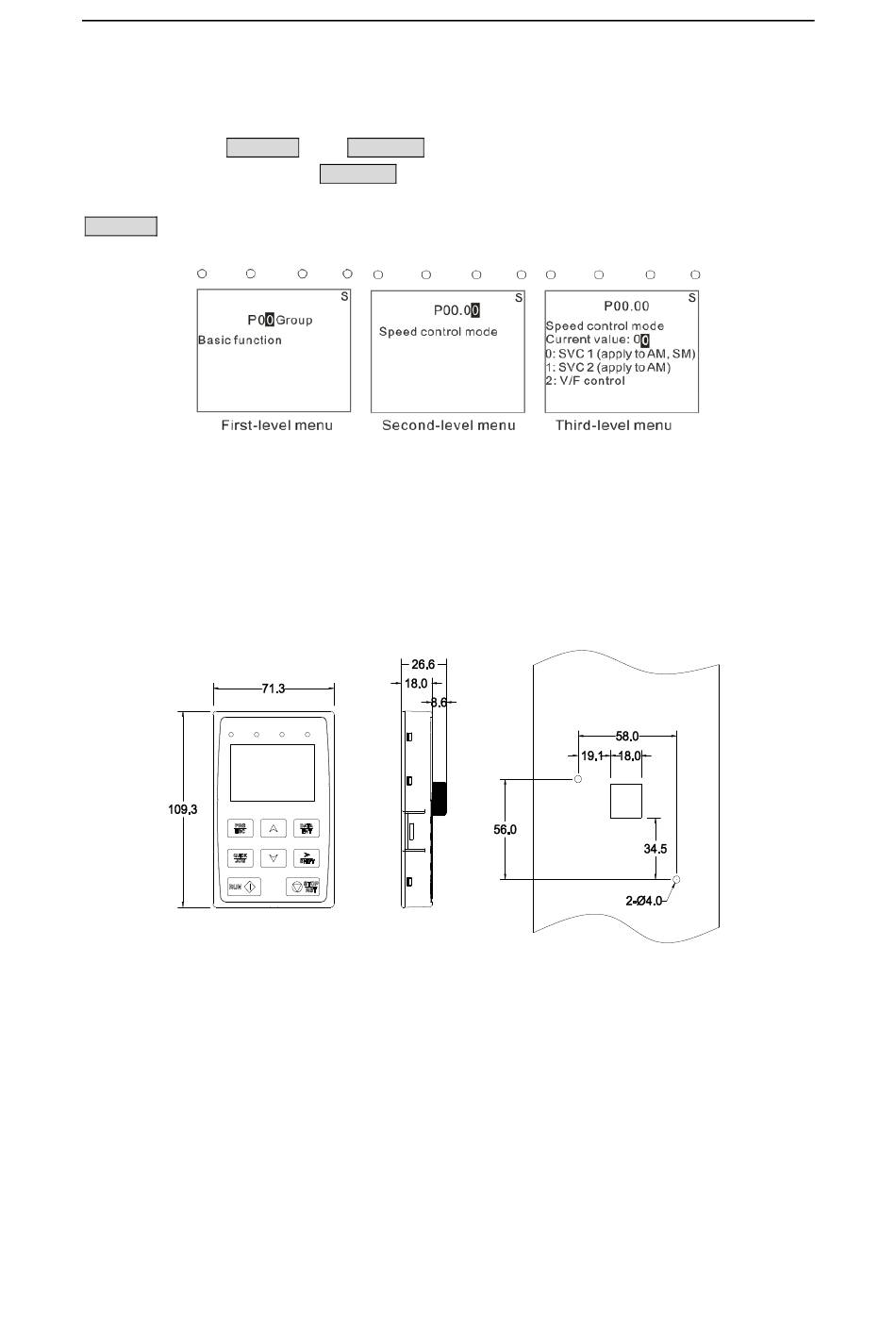

Figure 4-2 Operation flow chart of three levels menu
Under the third-level menu, if the parameter has no flickering bit, it means the function code cannot be
modified. The possible reasons could be:
1) This function code is not modifiable parameter, such as actual detected parameter, operation records
and so on;
2) This function code is not modifiable in running state, but modifiable in stop state.

4.4 Keypad dimension

Figure 4-3 LCD keypad dimension
键盘安装开孔图
-18-
