Goodrive3000 series medium voltage inverters
Function
Name
code
Upper limit of PID
P09.09
output
Lower limit of PID
P09.10
output
The function code is used to set the upper and lower limit of PID adjuster output setting.
100.0% corresponds to the maximum output frequency (P00.03) or the maximum voltage (P04.31).
Function
Name
code
Feedback offline
P09.11
detection value
Feedback offline
P09.12
detection time

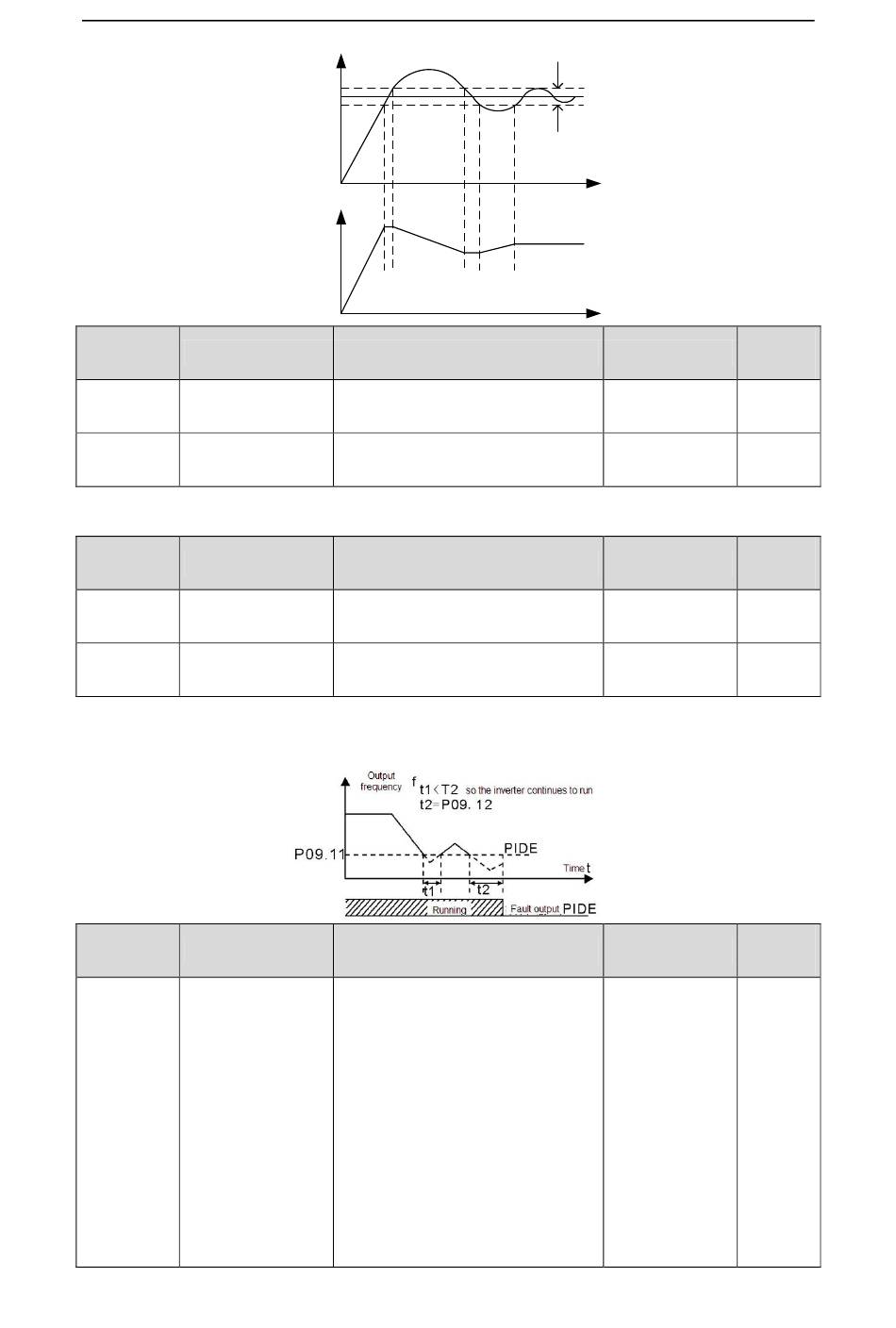

Set the PID feedback offline detection value. When the value is smaller than or equal to the feedback
offline detection value and the duration exceeds the value set in P09.12, the inverter will alarm "PID
feedback offline fault" and the keypad will display PIDE.
Function
Name
code
P09.13 PID adjustment
Feedback
Reference
Output
frequency f
Detailed instruction of parameters
P09.10~100.0% (Max. frequency or
voltage)
-100.0%~P09.09 (Max. frequency or
voltage)
Detailed instruction of parameters
0.0~100.0%
0.0~3600.0s
Detailed instruction of parameters
0x0000~0x1111
LED ones:
0: Keep the integral adjustment when
the frequency reaches the upper and
lower limit
1: Stop the integral adjustment when
the frequency reaches the upper and
lower limit
LED tens:
0: The same with the setting direction
1:Opposite to the setting direction
-118-
Goodrive3000 series converter
Deviation limit
Time t
Time t
Setting range
P09.10~100.0
-100.0~P09.09
Setting range
0.0~100.0
0.0~3600.0
Setting range
0000~1111
Default
value
100.0%
0.0%
Default
value
0.0%
1.0s
Default
value
0x0001
