1A – 4 GENERAL ENGINE INFORMATION

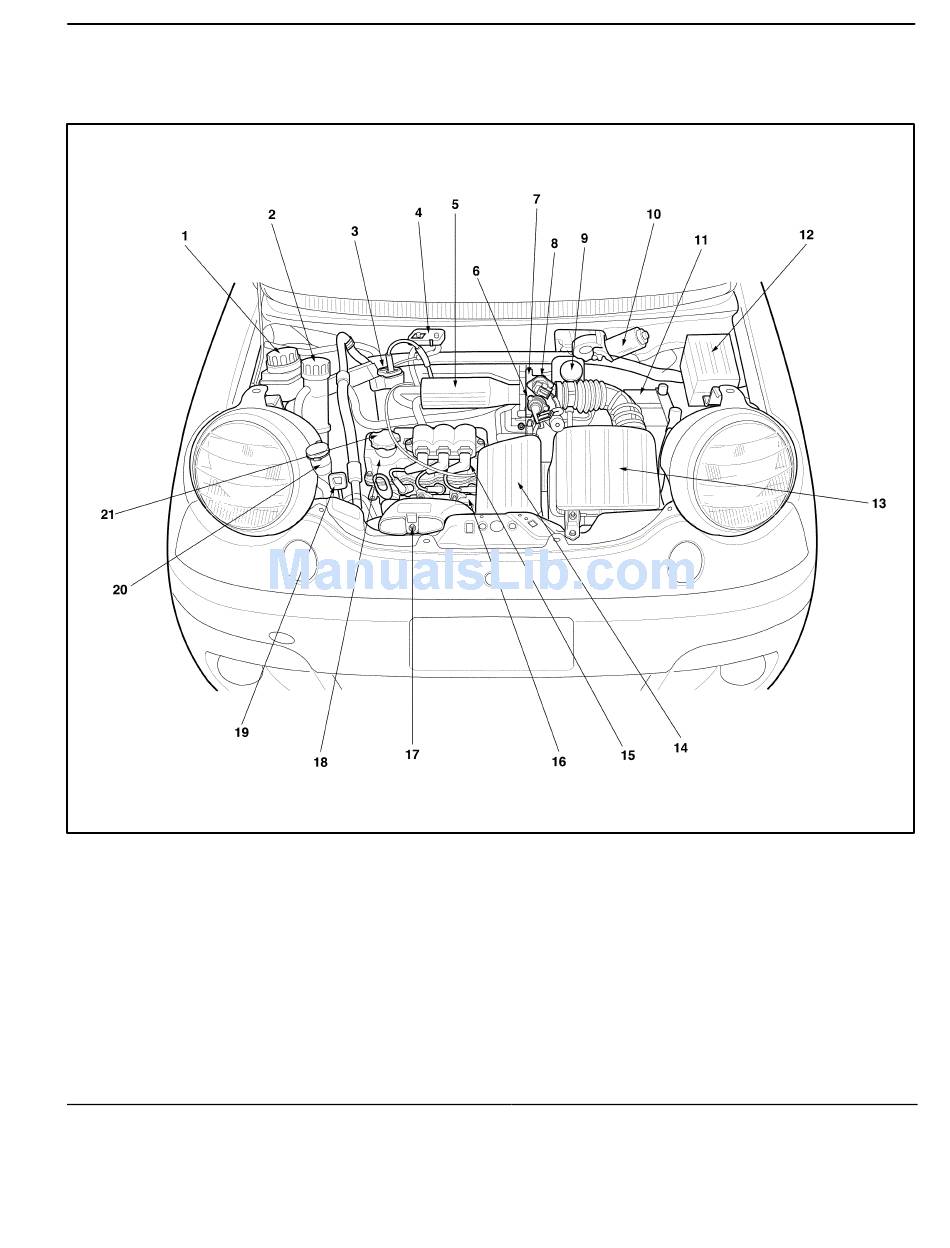

(Left–Hand Drive Shown, Right–Hand Drive Similar)
1 Power Steering Oil Reservoir
2 Coolant Reservoir
3 Canister Purge Solenoid
4 Manifold Absolute Pressure (MAP) Sensor
5 Intake Manifold
6 Throttle Position (TP) Sensor
7 Throttle Body
8 Idle Air Control (IAC) Valve
9 Brake Fluid Reservoir
10 Wiper Motor

ENGINE COMPARTMENT (EURO III)

11 Battery
12 Fuse Box
13 Air Cleaner Housing
14 Resonator
15 Electronic Ignition System Ignition Coil
16 Exhaust Manifold
17 Snorkel
18 Engine
20 Washer Fluid Reservoir
19 Oil Level Gauge
21 Oil Filler Cap
MAA1A010
DAEWOO M-150 BL2
