QuadTech Guardian 6100 Plus Instruction Manual page 98

To access the STORE function in MAIN MENU, press the function key [MEMORY].
Use the [↑] and [↓] arrows to move the backlit box to the desired memory location (the
number in parenthesis will be 0 indicating no steps and the backlit box will be empty)
_____________. Press the function key [STORE]. Name location using alppha-numeric
keypad. Press [ENTER] to store the test setup. Press [EXIT] to return to the MAIN
MENU.
MEMORY SETUP
1. ( 0)
2. ( 0)
3. ( 0)
4. ( 0)
5. ( 0)
6. ( 0)
7. ( 0)
8. ( 0)
9. ( 0)
10. ( 0)
MEMORY SETUP
1. ( 0)
2. ( 0)
3. ( 7)
PRESS ENTER TO CONTINUE
9. ( 0)
10. ( 0)
2.5.2 Recalling a Test
To access the RECALL function in MAIN MENU, press the function key [MEMORY].
Use the [↑] and [↓] arrows to move the backlit box to the desired memory location (the
number in parenthesis will be 1-50 indicating the number of steps and the backlit box
may contain the test name) ___EXAMPLE___. Press the function key [RECALL].
Press [ENTER] to recall the test setup. Press [EXIT] to return to the MAIN MENU.
2.5.3 Deleting a Test Step
To access the DELETE function in MAIN MENU, press the function key [MEMORY].
Use the [↑] and [↓] arrows to move the backlit box to the desired memory location (the
number in parenthesis will be 1-50 indicating the number of steps and the backlit box
may contain the test name) ___EXAMPLE___. Press the function key [DELETE]. Press
[ENTER] to delete the test setup. Press [EXIT] to return to the MAIN MENU.
Page 98 of 177
www.valuetronics.com
: __
: __
NEXT CHAR.
:
__
: __
: __
: __
: __
: __
: __
: __
EXIT
Remote Lock Offset
STORE
: __
: __
: EXAMPLE RECALL
MESSAGE
DELETE
STORE?
NEXT PAGE
: __
: __
Remote Lock Offset

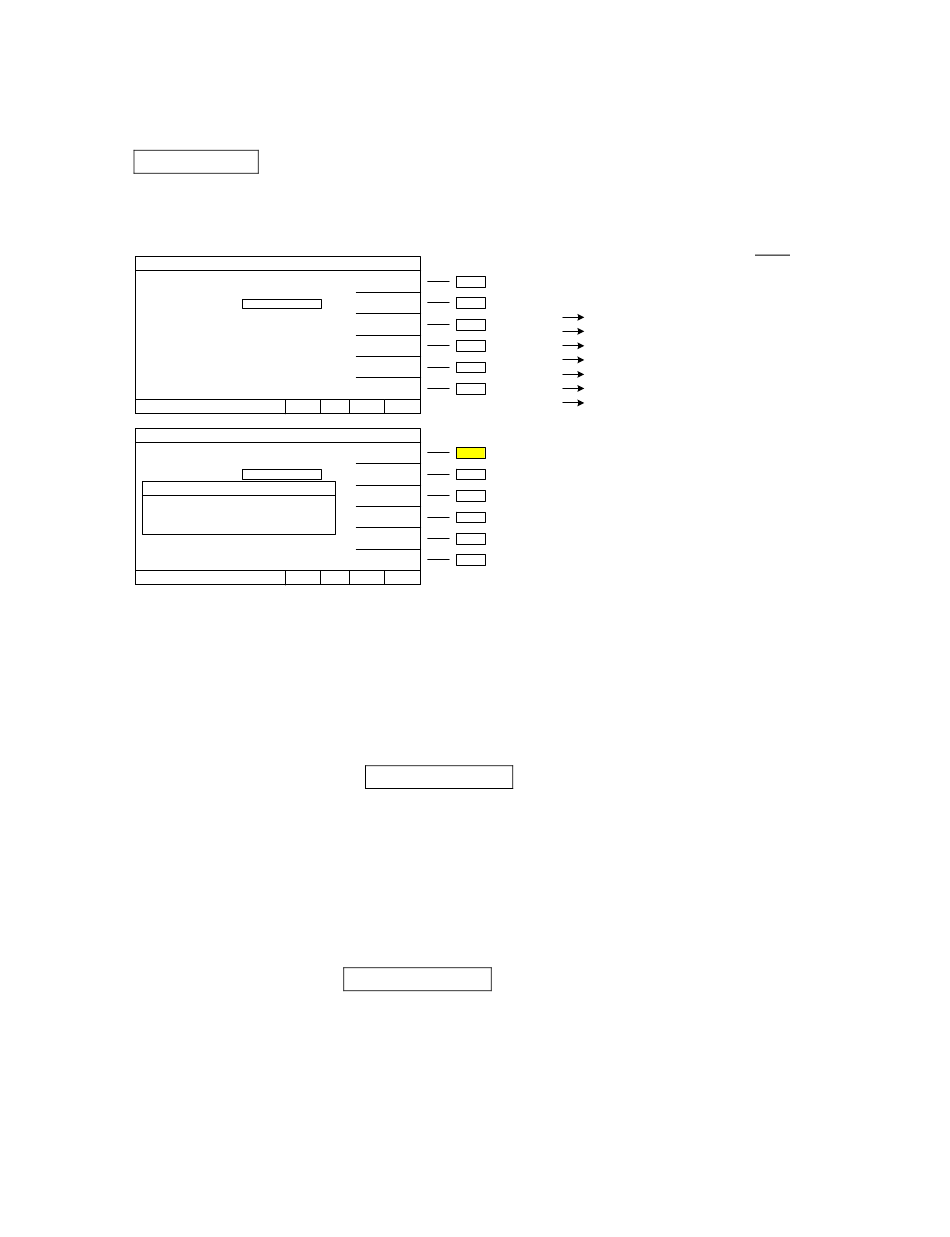

Figure 2-17: STORE Example
