3.5.3 Programming the Internal Scanner
The 6100 Plus instrument is equipped with the internal 6000-07 "Hipot/Leakage Current"
scanner. The 6000-07 internal scanner is designated Scanner #1.
channels #1 and #3 can be programmed in the last step of an OSC, AC, DC, IR or LC
test. Paragraphs 2.4.2, 2.4.3, 2.4.5, 2.4.6 and 2.4.7 illustrate how Scanner #1 is setup for
each of these tests. Figure 3-11 illustrates the setup of Scanner #1 for an LC Test.
When in Scanner Setup, the numerical keypad serves as a toggle switch. For example,
[1] corresponds to Channel 1 and when [1] is pressed the value of CH1 changes from "H"
to "L" to "X". Press the numerical key that corresponds to the Channel # to set that
channel's status. "H" signifies that the High Voltage/Current is applied to the selected
channel. "L" signifies that the selected channel is the return and "X" denotes that the
channel is not used.
Page 156 of 177
www.valuetronics.com
MUST BE INTERCONNECTED
GB FLOATING
!
SENSE
!
DRIVE
HV OUTPUT
N-OUT (CH-1) L-OUT (CH-1) PATIENT PROBE

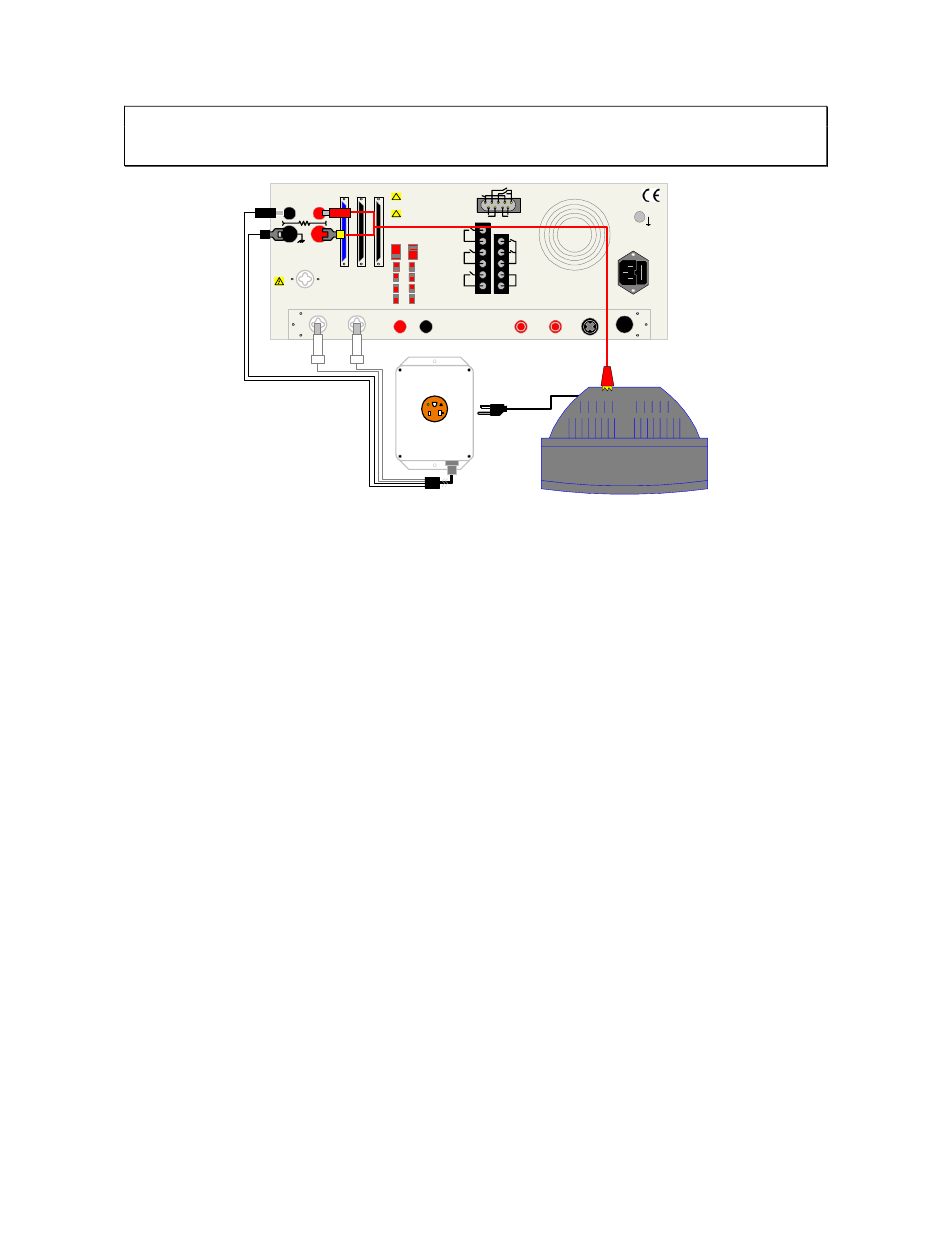

Figure 3-10: 6000-07 Scanner Connection to DUT for Hipot/IR
