Patient Auxiliary Leakage - QuadTech Guardian 6100 Plus Instruction Manual

2.4.7.5
The IEC 60601-1 measuring circuit for the patient auxiliary current test is illustrated in
Figure 2-15a. Patient Auxiliary Current can also be measured from patient connection
P1 to all other patient connections P2.
The tests can be performed with any of 4 different mains conditions. These conditions
are:
All conditions can be performed with the ground switch S7 open or closed.
Operation
www.valuetronics.com

Patient Auxiliary Leakage

Normal Mains (S5 DOWN position)
Reverse Mains (Hot and Neutral reversed) (S5 UP position, as shown)
Single Fault – Normal (Neural S1 open & S5 DOWN position)
Single Fault – Reverse (Hot and Neutral reversed with Neutral S1 open)
L(N)
T
1
Mains
V
V
1
N(L)
R

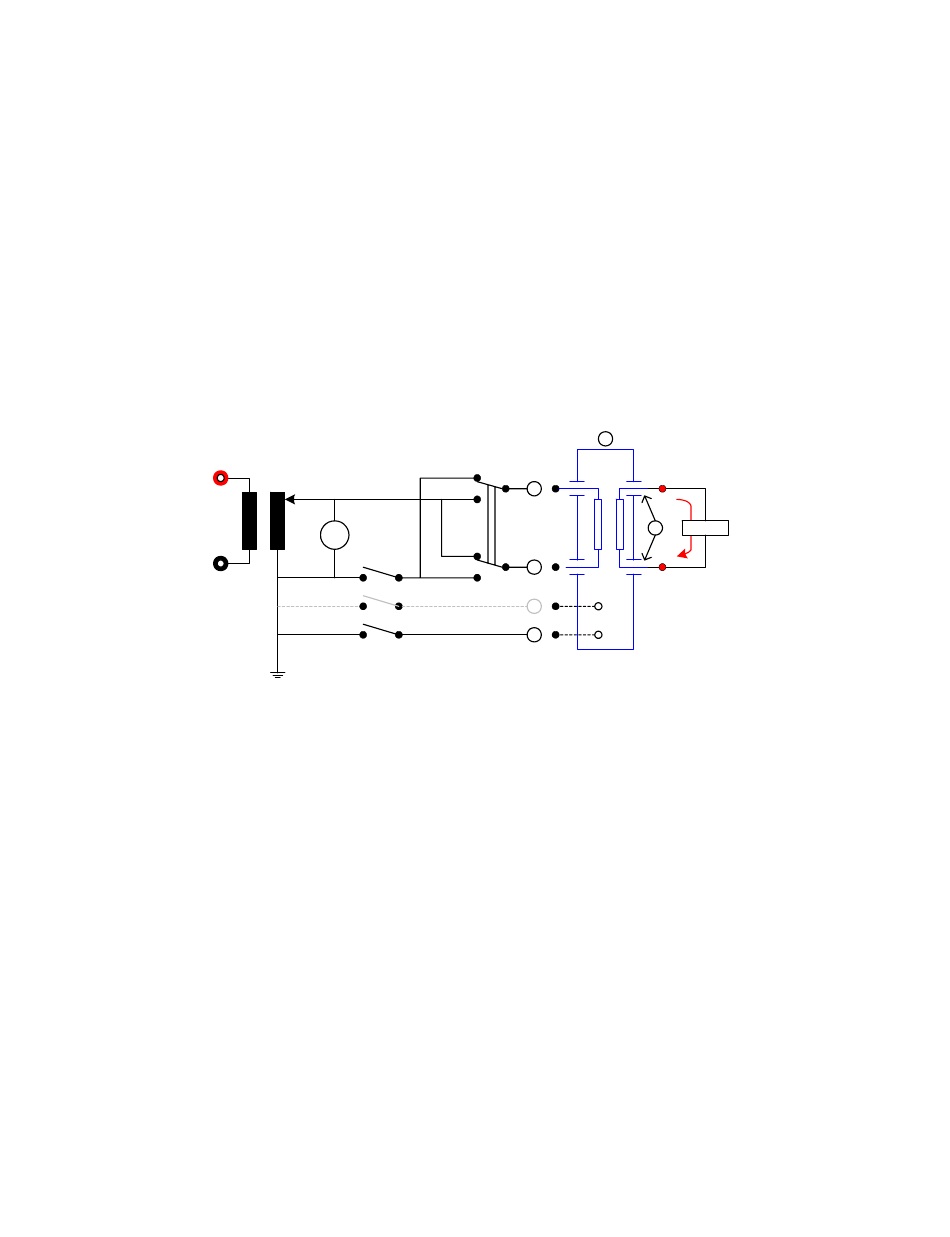

Figure 2-15a: Patient Auxiliary Current
(Figure 17 of 60601-1 © IEC 2000)
S
reverse
5
P
normal
P
S
1
S
P
10
S
P
7
PE
150799 Rev A3
DUT
1
Patient Probe
#1
1
i
MD
5
1
#2
Patient Probe
1
FE
1
PE
