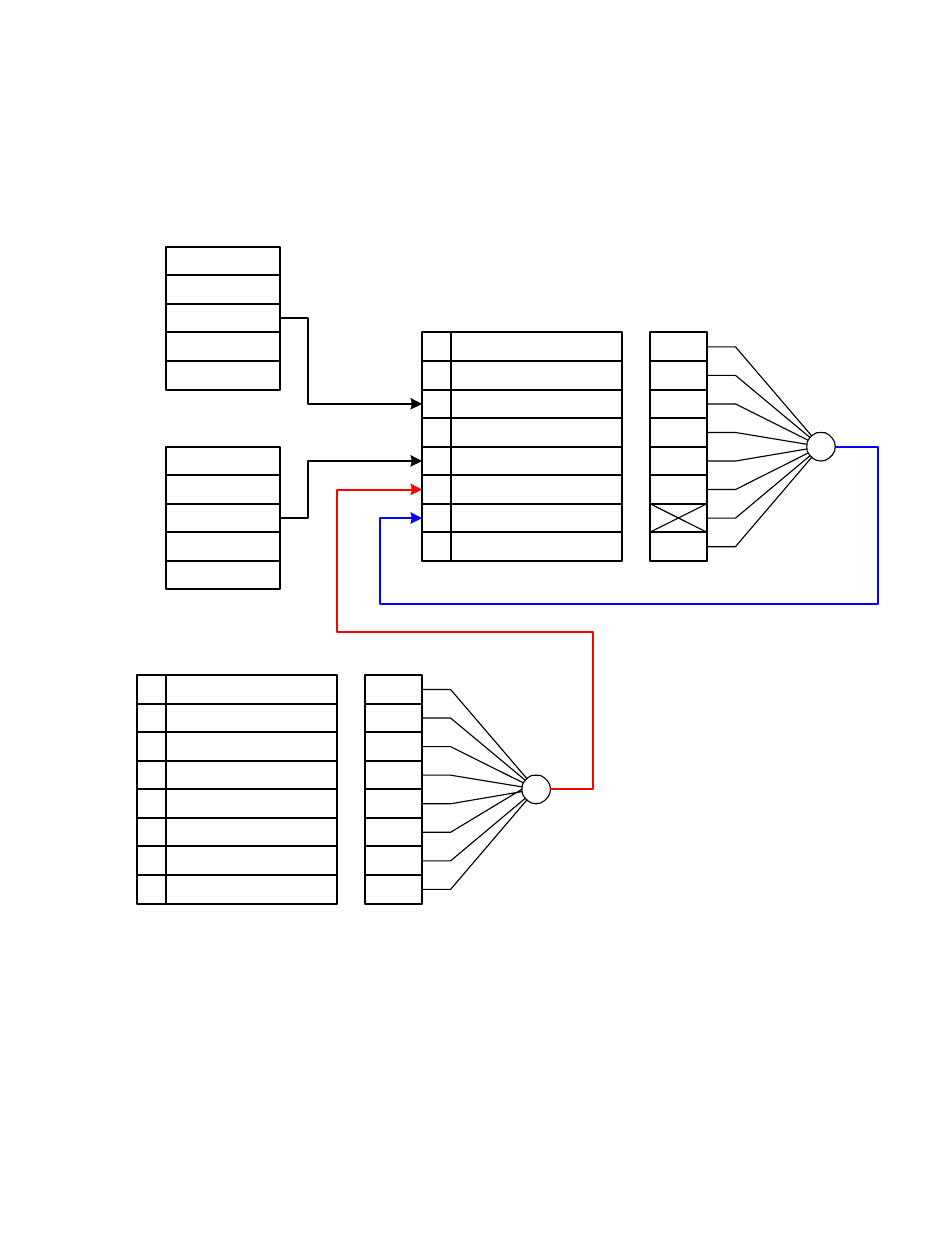

Figure 3-7 illustrates the configuration of the Summary (Status), Event and Enable
Registers for the Guardian 6100 Plus IEEE-488 Interface.
0 Operation Complete
1 Not Used
2 Query Error
3 Device Error
4 Execution Error
5 Command Error
6 Not Used
7 Power On
*ESR?
Page 136 of 177
www.valuetronics.com
IEEE-488 Register Configuration
Error/Event
Queue
Output
Buffer
Event Register
Register
*ESE <value>
*ESE?
Figure 3-7: G6100 Plus IEEE-488 Register Configuration
Summary Register
0 Not Used
1 Has Result
2 Error/Event Queue
3 Not Used
4 Message Available
5 Standard Event
6 Request Service
7 Not Used
Serial Poll (SPOLL)
*STB?
Enable
+
150799 Rev A3
Enable
Register
+
*SRE <value>
*SRE?
Interface
