QuadTech Guardian 6100 Plus Instruction Manual page 113

The G-30 Corded Product Adapter consists of a hospital grade receptacle and four leads
for a three-wire connection of the product to the G6100 Plus instrument. Connection is
via the rear panel output and scanner connectors. The G30 leads consist of two white
custom banana plugs for connection to L-OUT and N-OUT, a black banana plug for
connection to the Sense- terminal, and a black spade lug for connection to the Drive-
terminal.
the G6100 Plus unit.
G14 Power Entry Adapter
The G-14 Power Entry Adapter Cable allows an AC inlet connection of product to G6100
Plus instrument through a three lead set.
connection to HV OUTPUT, a black banana plug with retaining bracket for connection to
the Sense- terminal, and a black spade lug for connection to the Drive- terminal. Figure
2-27 illustrates the connection of the G-14 Power Entry Adapter Cable to the G6100 Plus
unit.
Operation
www.valuetronics.com
Figure 2-26 illustrates the connection of the G-30 Corded Product Adapter to
GB FLOATING GPIB SCAN RS232
SENSE
DRIVE
HV OUTPUT
HIGH VOLTAGE
MAX 5kVAC
6kVDC
N-OUT (CH-1) L-OUT (CH-1)

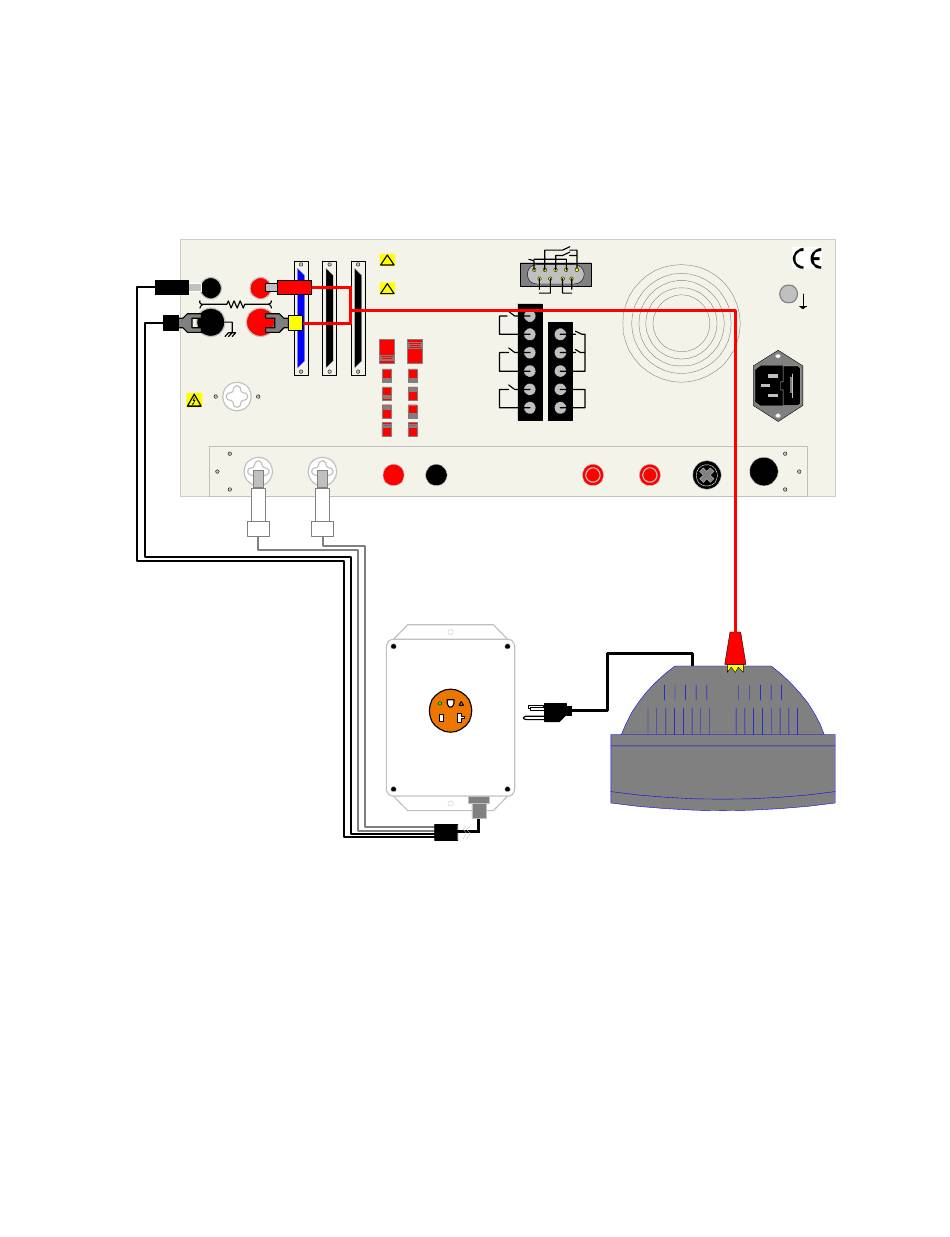

Figure 2-26: G30 Connection to G6100 Plus for GB & Hipot
