When Key Lock and/or Fail Lock are ON, the G6100 Plus unit will power on to the Test
2.7.1 Offset
The Guardian 6100 Plus provides automatic offset for lead or fixture effects. During the
offset process a correction is made (subtracted out) as the result of lead leakage current
and stored in instrument memory to be applied to ongoing measurements. For maximum
measurement accuracy it is recommended that offset be performed after power-up, any
time the test parameters are changed and any time the test leads or fixture are changed.
The offset is saved under setup storage (1-100 setups) and is also saved on a power down
and power back up. Allow the instrument to warm-up for at least 15 minutes before
performing offset.
Test parameters and Preset paramenters should be programmed and test cables
connected prior to initializing the offset function. Refer to ¶2.7.3 for the correct
cable connection.
Open connection using S02 Lead Set:
STOP
START
ON
1
0
OFF
Short connection using G15 Lead Set:
Operation
www.valuetronics.com
QuadTech
Guardian 6100 Plus
Electrical Safety Analyzer

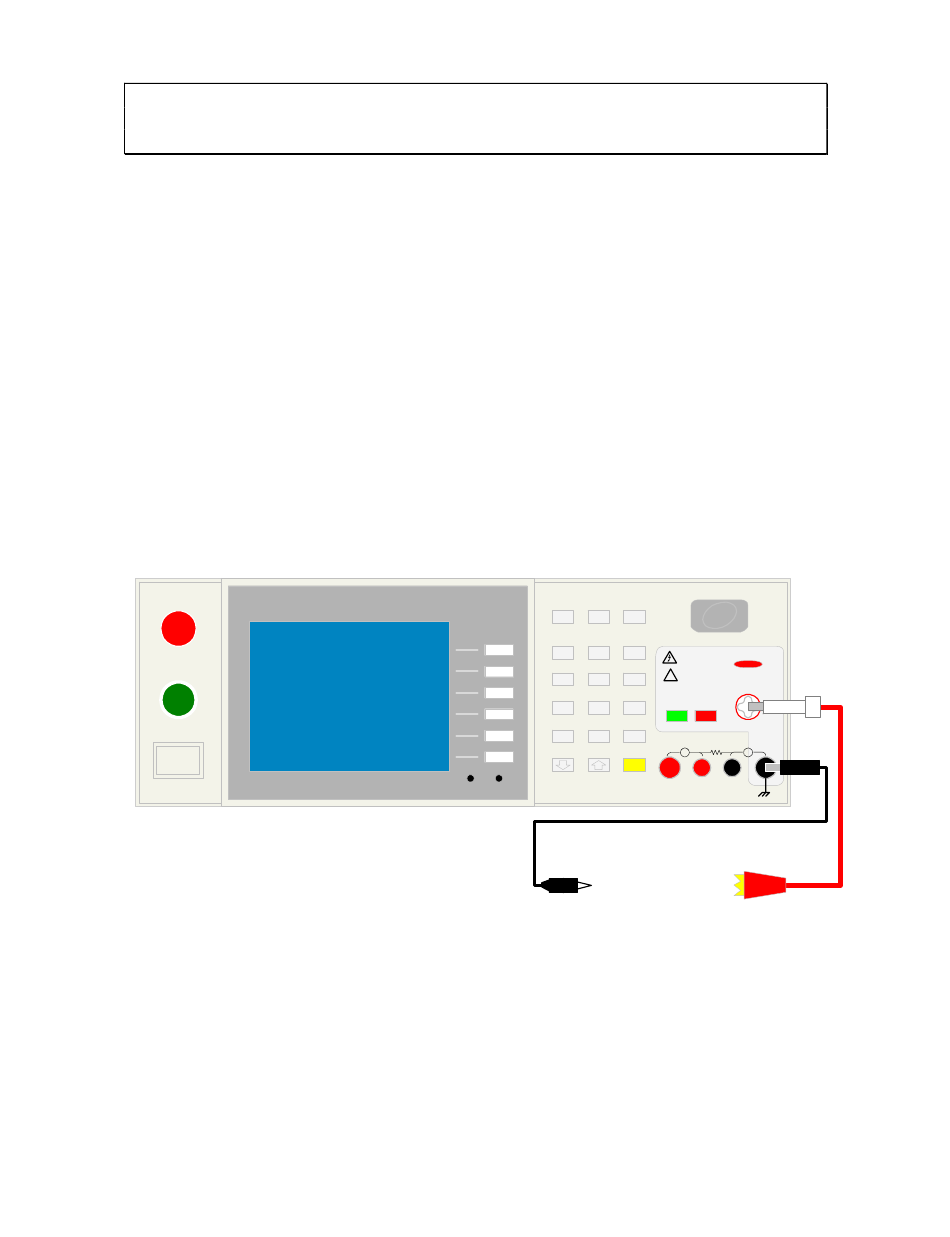

Figure 2-22: Offset OPEN Configuration
